Product Description

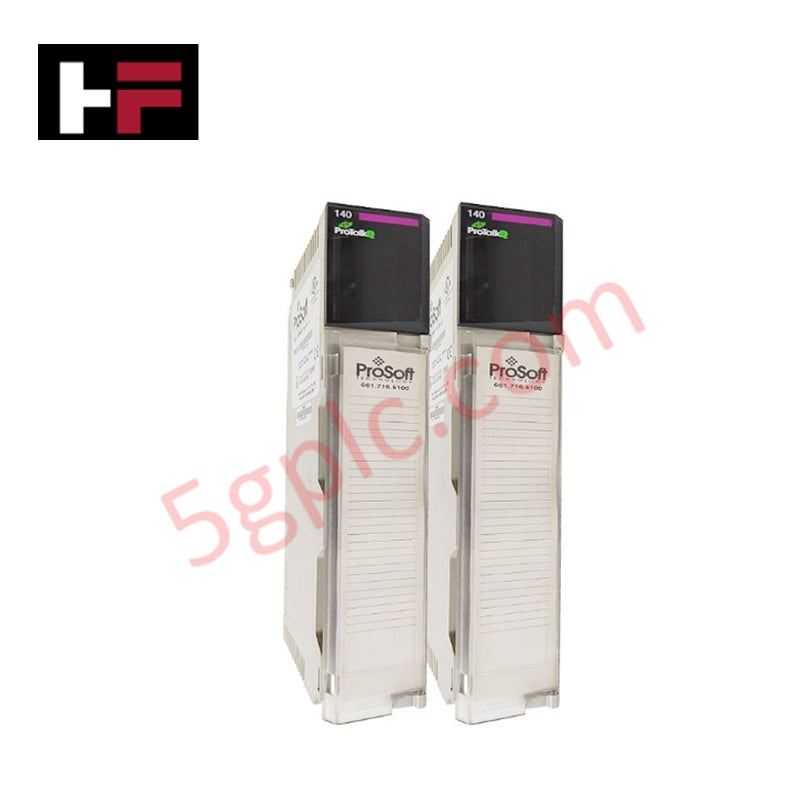

The PTQ-PDPMV1 module from ProSoft Technology is a PROFIBUS DPV1 communication interface designed for Rockwell Automation systems. It provides reliable connectivity between ControlLogix processors and PROFIBUS networks, supporting robust diagnostics and industrial-grade performance.
Key Specifications
-
Manufacturer: Allen Bradley / ProSoft Technology
-
Model: PTQ-PDPMV1
-
Part Number: PTQ-PDPMV1
-
Product Type: PROFIBUS DPV1 Communication Interface Module
-
Backplane Current Load: 1100 mA @ 5 VDC ±5%
-
Operating Temperature: 0–60°C (32–140°F)
-
Storage Temperature: –40–85°C (–40–185°F)
-
Relative Humidity: 5–95% non-condensing
-
Shock Resistance: 30 g, 11 ms (all three axes)
-
Vibration Resistance: Sine vibration 4–100 Hz (all three axes)
-
LED Indicators: Module status, backplane transfer status, serial port activity, serial port error status
-
Form Factor: ControlLogix-compatible module
Core Features
-
PROFIBUS DPV1 interface for Rockwell Automation systems
-
Diagnostic LED indicators for monitoring communication and module health
-
Designed for rugged industrial environments with shock and vibration resistance
-
Wide operating temperature range for reliable field deployment
-
Compact design for ControlLogix racks
Application Scenarios
-
Integration of PROFIBUS DPV1 devices into Rockwell Automation systems
-
SCADA and distributed control systems requiring PROFIBUS connectivity
-
Industrial automation in manufacturing, petrochemical, and processing industries
FAQ
-
Q: What is the backplane current load requirement? A: 1100 mA @ 5 VDC ±5%.
-
Q: What diagnostic features are available? A: LED indicators for module status, backplane transfer, serial activity, and error monitoring.
-
Q: What environments is the module suitable for? A: It is designed for industrial environments with vibration and shock resistance.
Comparison with Similar Modules
-
MVI56-PDPMV1: PROFIBUS DPV1 Master module for ControlLogix systems.
-
PS69-DPM: PROFIBUS DPV1 Master module for CompactLogix systems.
-
PLX51-PBS: PROFIBUS DP slave gateway with EtherNet/IP and Modbus support.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
