Product Details

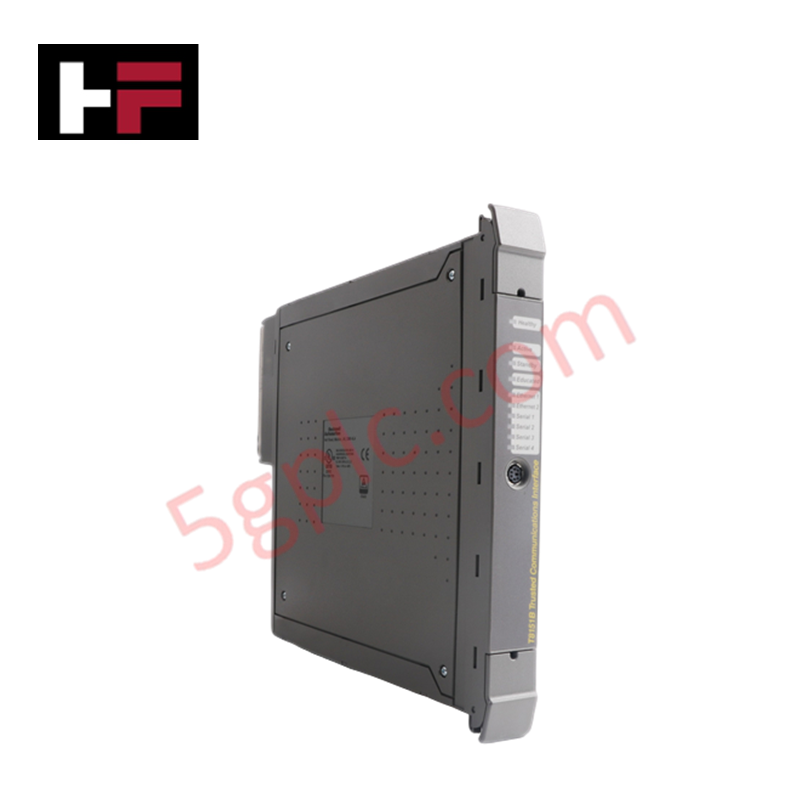

Configured for high-speed data exchange in Trusted TMR systems, the ICS TRIPLEX T8151C (T8151C Communications Interface) provides direct physical and electrical execution. The module offloads communication overhead from the main processor by managing external protocol traffic and network synchronization, ensuring that processor resources remain dedicated to real-time control logic execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T8151C |
| Brand | ICS TRIPLEX |
| Origin | USA |
| Weight | 0.92 kg |
| Dimensions | 3 cm x 30.2 cm x 26.5 cm |
| Operating Temp | Standard Industrial |
| Power Consumption | Configuration Dependent |
| Interface Type | Communications Interface |
SIS Triple Modular Redundancy (TMR) Architecture
The T8151C operates within the Trusted TMR 2oo3 architecture to facilitate fail-safe state execution. By providing isolated communication ports, the module maintains galvanic isolation between external network media and the internal TMR backplane bus. This isolation prevents electrical transients or protocol-level errors from propagating into the core processor array. The TMR voting logic monitors the integrity of the data passed through the interface, ensuring that only validated, error-free packets are transferred between the controller and external supervisory systems, thereby maintaining system-wide deterministic performance.
Frequently Asked Questions
Q: Does the T8151C support hot-swapping within the Trusted TMR rack?
A: The T8151C is designed for hot-swap operations in a powered chassis. During removal and insertion, ensure that the system configuration is updated to account for the temporary disruption of the associated communication port.
Q: How does the T8151C minimize the load on the main processor?
A: The module utilizes dedicated onboard processing to handle protocol handshaking, buffer management, and packet routing. This offloading prevents the TMR processor from needing to manage low-level communication interrupts, maintaining cycle time consistency.
Field Installation Guidelines
- Confirm the rack power supply is stable before installing the module into the designated slot.
- Engage the module into the backplane connector, ensuring that pins are seated correctly to prevent intermittent communication loss.
- Tighten the front panel fasteners to maintain structural integrity and a solid chassis ground connection.
- Route communication cables through dedicated, shielded conduits, keeping them separate from high-voltage power cabling to reduce electromagnetic interference.
- Perform a diagnostic status check via the system engineering station to verify that the communication port is initialized and synchronized with the network bus.
