Product Details

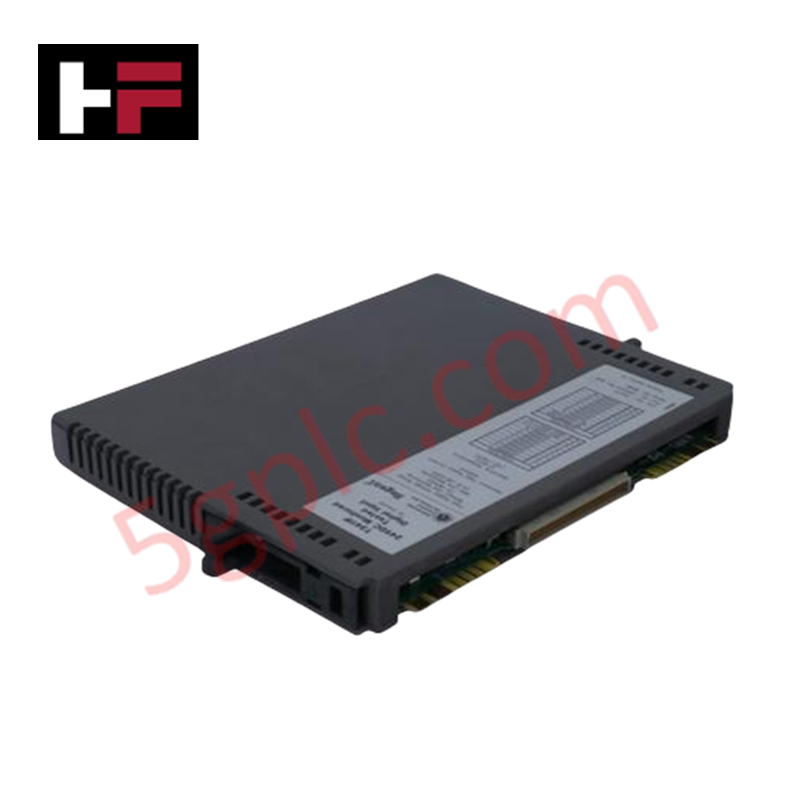

Configured for high-integrity signal acquisition within the Trusted TMR system, the ICS TRIPLEX T3411 (T3411 Monitored Digital Input Module) provides direct physical and electrical execution. The module manages the detection of field-side digital switches, providing active line monitoring to verify the status and electrical integrity of connected input circuits for safety-critical logic processing.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T3411 |
| Brand | ICS TRIPLEX |
| Origin | USA |
| Weight | 1.9 kg |
| Dimensions | 17.8 cm x 4.6 cm x 24.9 cm |
| Operating Temp | Standard Industrial |
| Power Consumption | Configuration Dependent |
| Input Type | Monitored Digital Input |
SIS Triple Modular Redundancy (TMR) Architecture
The T3411 utilizes a triple modular redundancy (TMR) 2oo3 architecture to ensure continuous signal validity and fault tolerance. Three independent internal processing paths sample the input signals in parallel, with a hardware-based voting circuit evaluating the status of each path. If one channel reports a discrepancy or a detected line fault—such as an open or short circuit—the module automatically isolates the anomalous path. This architecture enables fail-safe state execution, ensuring that the control system responds only to validated, consistent input data while maintaining operation despite individual component degradation.
Frequently Asked Questions
Q: Does the T3411 support online hot-swapping?
A: The module is designed for hot-swap capability within the Trusted TMR backplane. During replacement, ensure the associated system logic is configured for maintenance mode to prevent the processor from logging transient fault conditions caused by the removal of the module.
Q: How does the monitoring function handle field-side wiring faults?
A: The integrated monitoring circuitry continuously checks for predefined current or voltage levels in the input loop. Deviation from these levels triggers an immediate diagnostic alarm in the control system, allowing the software logic to execute the appropriate safety response based on the detected open or short circuit.
Field Installation Guidelines
- Ensure the chassis slot is clear of debris before inserting the T3411 module to prevent backplane pin damage.
- Secure the module using the integrated locking handles to maintain robust mechanical contact with the backplane bus.
- Terminate field switch wiring to the corresponding termination assembly, observing correct polarity for monitored loops.
- Utilize shielded cables for all field inputs to reduce electromagnetic interference; ensure shields are terminated to the system reference ground at the designated entry point.
- Perform a functional test of each input channel post-installation to confirm that the software logic correctly identifies both open and closed switch states.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
Tech & Buying Guide
Mastering Wire Identification in Industrial Automation: The Power of Ferrules and Cross-Ferruling
Proper wire labeling forms the cornerstone of reliable control system installation and long-term maintenance. In complex industrial automation environments, technicians terminate thousands of conductor ends inside control panels, marshalling racks, and field junction boxes. Ferrules serve as individual tube-shaped sleeve markers slipped onto conductors before final termination. While technicians historically relied on pre-printed individual letter rings, modern control panel builders utilize automated ferrule printing machines. These thermal-transfer printers generate durable, single-sleeve heat-shrink tags directly matching approved wiring schematics, significantly accelerating cabinet assembly workflows.
Understanding Marshalling Cabinets in Industrial Automation and Control Systems
Marshalling cabinets serve as the crucial connection hub between field instruments and centralized processing units. In large DCS and PLC control system architectures, hundreds of multipair field cables run from local junction boxes to the central instrument equipment room. The marshalling cabinet houses field terminal blocks, surge arresters, intrinsic safety isolation barriers, and interposing relays. By segregating field field-wiring terminations from sensitive processor hardware, engineers protect expensive controller backplanes from high-voltage transients. Consequently, this modular separation dramatically streamlines maintenance workflows and simplifies system expansion.
Essential Best Practices for PLC Wiring and Installation in Industrial Automation
Successful control system deployment begins with thoroughly reviewing manufacturer technical documentation. Controllers from major brands like Allen-Bradley, Siemens, and Schneider Electric feature unique terminal layouts. Engineers must verify voltage requirements before connecting power cables to prevent catastrophic equipment damage. Standard line connections require strict adherence to regional electrical codes and proper wire color coding. Furthermore, panel builders should always establish a robust low-impedance ground connection using at least 16-AWG copper conductor tied directly to the main plant grounding grid.
