Product Description

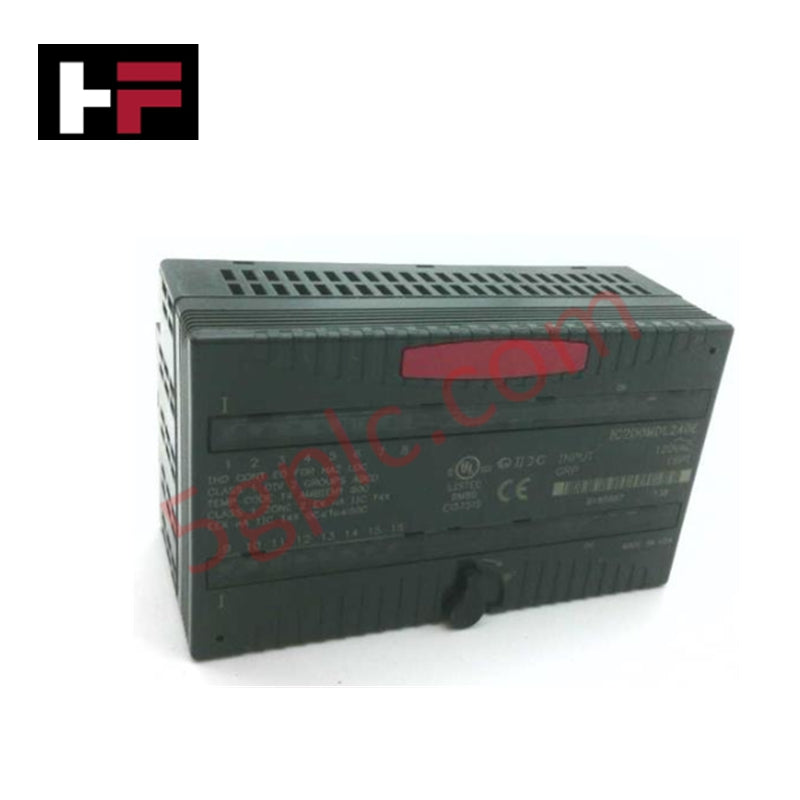

The GE Fanuc VersaMax IC200MDL240 Discrete Input Module is designed for reliable signal acquisition in industrial control systems. With 16 individually isolated input channels, built-in diagnostics, and strong electrical isolation, it ensures accurate monitoring of AC signals in demanding automation environments.
Technical Specifications
-
Model / Part Number IC200MDL240
-
Manufacturer GE Fanuc Emerson
-
Product Line VersaMax I/O
-
Product Type Discrete Input Module
-
Weight 0.38 lbs (0.17 kg)
-
Number of Inputs 16 discrete inputs
-
Nominal Input Signal 120 VAC
-
Input Signal Range 0–132 VAC
-
Operating Voltage 120 VAC
-
Input Grouping Two groups of 8 channels each
-
Response Time (On) 1 cycle maximum
-
ON State Voltage 70–132 VAC
-
OFF State Voltage 0–40 VAC
-
ON State Current ≥ 7 mA at 120 VAC
-
OFF State Current ≤ 1.5 mA
-
Input Current 7 mA at 120 VAC
-
Backplane Current Consumption 110 mA maximum
-
Isolation
-
Group-to-group: 250 VAC continuous, 1500 VAC for 1 minute
-
Optical and frame-to-ground: 250 VAC continuous, 1500 VAC for 1 minute
-
LED Indicators 16 individually numbered channel LEDs + 1 backplane LED
-
Built-in Power Supply Yes (no external supply required)
-
Dimensions 110 × 66.8 × 50 mm
Application Scenarios
-
Monitoring AC signals in factory automation systems
-
Integration into VersaMax I/O carriers for distributed control
-
Applications requiring group-to-group isolation and fast response times
FAQ
Q: How many input channels does the IC200MDL240 provide? A: It offers 16 discrete input channels grouped into two sets of eight.
Q: What is the nominal input voltage? A: The module is designed for 120 VAC nominal input signals.
Q: Does the module require an external power supply? A: No, it has a built-in power supply and draws current directly from the backplane.
Q: What isolation levels are supported? A: Group-to-group and frame-to-ground isolation up to 1500 VAC for one minute.
Comparison with Similar Models
-
IC200MDL240: 16-channel discrete input, 120 VAC, optical isolation
-
IC200MDL750: 32-channel DC input, faster switching response
-
IC200MDL742: 16-channel DC input, transistor-based design
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
