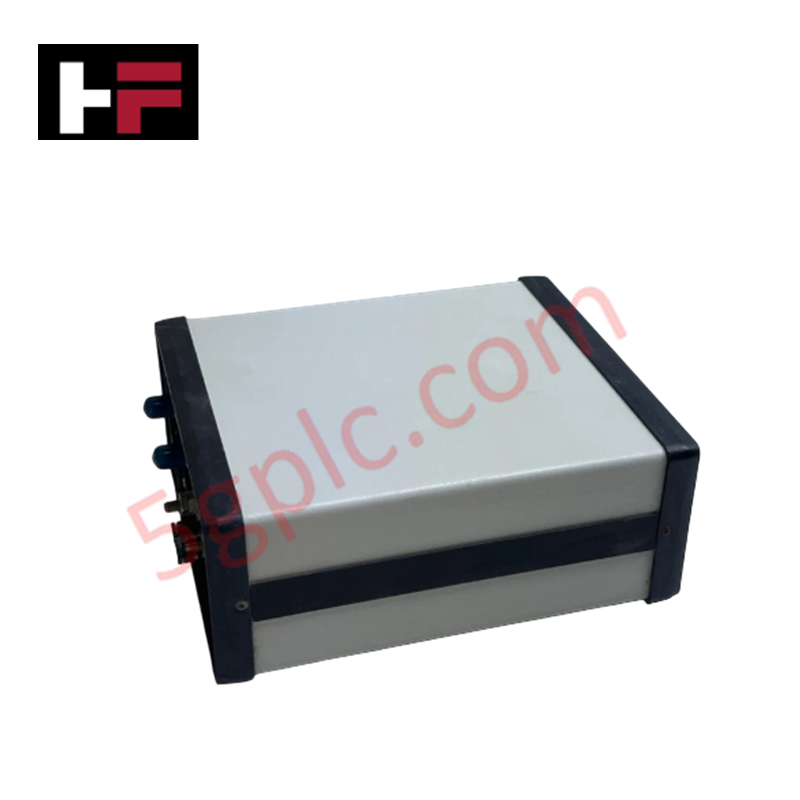

The Honeywell MU-FOEA02 51197564-150, also cataloged as the MU-FOEA02 Fiber Optic Extender, operates as a dedicated hardware component for converting coaxial electrical signals to optical media within Honeywell TDC 3000 Universal Control Network (UCN) architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-FOEA02 51197564-150 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Less than 15 W |
| Product Type | Fiber Optic Extender Module |
| Network Type | Universal Control Network (UCN) |
| Function | Coaxial-to-fiber optical media conversion |
| Maximum Distance | Up to 2 km |
| Operating Voltage | 85-235 VAC (supports 110/220/240 VAC nominal) |
4-20 mA HART Loop Protocol & Channel-to-Channel Isolation
The module maintains signal transmission integrity across extended physical distances by converting high-frequency coaxial UCN token-passing signals into light pulses, bypassing ground loop potentials and electromagnetic interference (EMI/RFI). Integrated power control circuits and channel-to-channel isolation barriers prevent high-voltage transients from crossing between field wiring nodes and local control drops. The high-impedance optical coupling path delivers low-latency propagation speeds over single-mode or multi-mode fiber links spanning up to 2 km without degrading signal-to-noise ratios.
Frequently Asked Questions
Q: What is the primary operational purpose of the -150 suffix variant in the 51197564-150 part number?
A: The "-150" suffix denotes a specific hardware lifecycle release and internal power distribution configuration rated for 85-235 VAC wide-range input operation.
Q: What is the maximum physical fiber cable distance supported by the MU-FOEA02 module?
A: The module supports continuous optical transmission distances up to 2 km without requiring signal regeneration or intermediate repeating hardware.
Q: Can the MU-FOEA02 extender be replaced while the remaining UCN node hardware is powered?
A: Hot-swapping must be performed in strict accordance with TDC 3000 redundant network protocols; disconnecting coaxial or power feeds under load must be coordinated across redundant channels to prevent UCN token loss.
Field Installation Guidelines
- Mount the extender enclosure firmly onto standard cabinet support rails within the designated node enclosure.
- Ensure optical fiber connectors (ST/SC type) are free of contamination and cleaned with lint-free optical swabs before insertion.
- Observe minimum bend radius limits for field fiber cables to avoid signal attenuation and internal core micro-fractures.
- Ensure protective earth (PE) grounding cables are properly bonded to the chassis grounding terminal to dissipate static and surge voltages.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
