Product Details

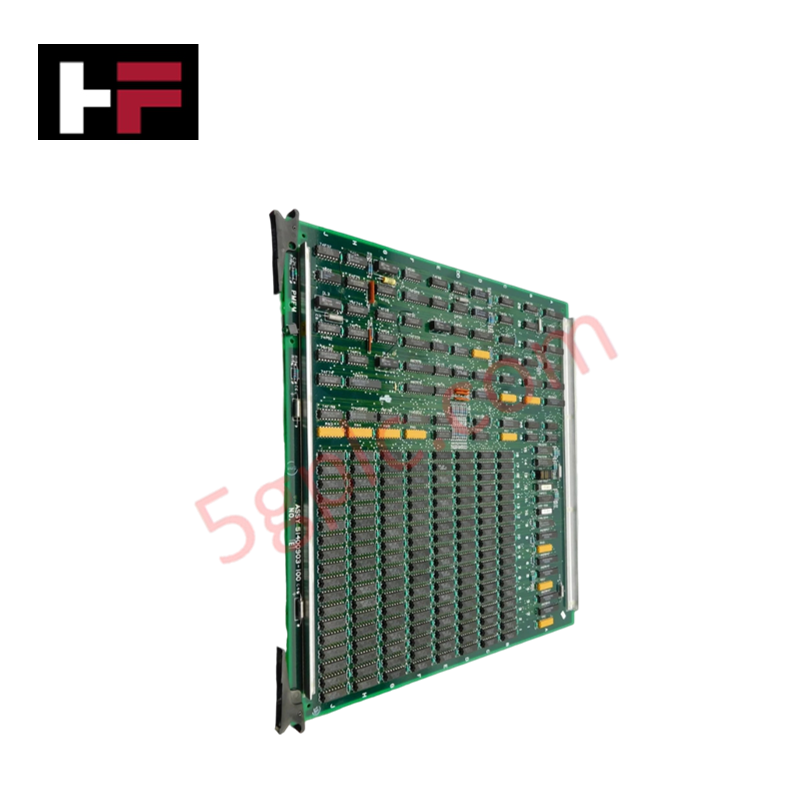

The Honeywell 51400903-100, also cataloged as the 51400903 Circuit Board, operates as a dedicated hardware component for internal system signal processing and logic execution within Honeywell TDC 3000 and Process Manager (PM/APM/HPM) DCS architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51400903-100 |
| Brand | Honeywell |
| Origin | USA |
| Weight | Approx. 0.8 kg |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | Powered via backplane bus (5 VDC / 24 VDC) |
| Module Type | Process Manager Circuit Board Assembly |
| System Compatibility | Honeywell TDC 3000 / PM / APM / HPM Card Cages |
| Form Factor | Single-slot printed circuit board |
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
Engineered for internal signal routing and data bus interfacing within Honeywell process control card cages, the assembly incorporates multi-layer ground planes and isolation barriers. Channel-to-channel isolation on onboard signal distribution paths suppresses common-mode electrical noise and prevents ground potential shifts from distorting low-level analog measurements or 4-20 mA HART loop protocol telemetry across field process interfaces.
Frequently Asked Questions
Q: What primary role does the 51400903-100 circuit board perform in a Honeywell DCS?
A: The board functions as an internal logic/interface printed circuit board assembly mounted within TDC 3000 Process Manager card cages to route and process system bus signals.
Q: Can the 51400903-100 circuit board be replaced while the card cage is powered?
A: Board removal or insertion should follow Honeywell system-specific hot-swap protocols; isolating power or placing the node in an offline state is recommended to prevent logic bus errors.
Q: How does the board maintain signal integrity in electrically noisy environments?
A: Onboard filtering, optocouplers, and dedicated ground planes provide galvanic isolation between field-side signals and internal high-speed backplane logic.
Field Installation Guidelines
- Handle the printed circuit board strictly by its front faceplate or frame, utilizing a wrist strap connected to cabinet protective earth (PE) to prevent electrostatic discharge (ESD) damage.
- Slide the board smoothly along the card cage guide rails until the rear edge-connector mates firmly with the backplane header.
- Tighten the top and bottom retaining screws to establish solid mechanical grounding to the rack chassis.
- Ensure proper cabinet ventilation and cooling fan operation to maintain ambient rack temperatures within specified limits.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
