Honeywell 51202329-726 Series C I/O Link CableHoneywell 51202329-726 Series C I/O Link CableHoneywell 51202329-726 Series C I/O Link Cable

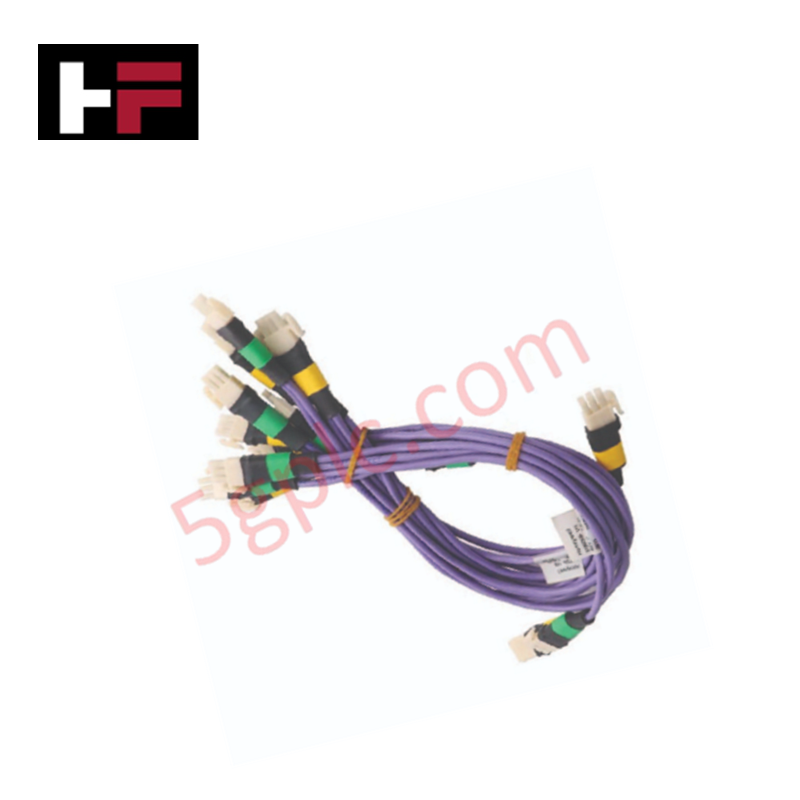

Honeywell 51202329-726 Series C I/O Link Cable
Honeywell 51202329-726 Series C I/O Link Cable
Honeywell 51202329-726 Series C I/O Link Cable

Honeywell 51202329-726 Series C I/O Link Cable


Only 10 left - Selling fast

PRODUCT SKU : 51202329-726

PRODUCT TYPE : Bus Cables

PRODUCT VENDOR : Honeywell


  • 100% Genuine Parts – Risk-Free 30-Day Returns
  • 1-Year Warranty & Expert Support for Every Order

Product Details

The Honeywell 51202329-726, also cataloged as the 51202329-726 I/O Link Cable, operates as a dedicated hardware component for high-speed deterministic field bus data transmission within Honeywell Experion PKS platforms.

Hardware Specifications

Parameter Specification
Model 51202329-726
Brand Honeywell
Origin USA
Weight Approx. 0.35 kg
Dimensions 1.5 m to 5 m nominal length options
Operating Temp -20 deg C to +80 deg C
Power Consumption Passive physical media (300 V isolation rating)
Cable Type Shielded multi-core data transmission cable
Shielding Full braided shield for EMI/RFI protection
Connector Type Factory pre-molded with mechanical lock mechanism
System Compatibility Honeywell Series C, C300, Experion PKS, TDC 3000, TPS

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The 51202329-726 cable assembly incorporates continuous 360-degree braided shielding to maintain structural channel-to-channel isolation across multi-drop I/O Link topologies. By isolating physical communication conductors from high-voltage transients and industrial electromagnetic noise, the cable preserves signal fidelity for analog input/output modules processing 4-20 mA HART loop protocol parameters between C300 controllers and field I/O termination assemblies.

Frequently Asked Questions

Q: What prevents mechanical disconnection of the 51202329-726 during cabinet vibration?

A: The cable assembly features factory pre-molded connector housings with integrated mechanical locking latches that maintain constant pin tension against the controller and I/O interface headers.

Q: Can the 51202329-726 cable be used in redundant I/O Link configurations?

A: Yes, the cable supports primary and secondary (Link A and Link B) dual-redundant bus topologies across Experion PKS Series C chassis configurations.

Q: What is the maximum voltage rating of the internal cable conductors?

A: The multi-core internal wire conductors carry a continuous insulation dielectric rating of 300 V.

Field Installation Guidelines

  • Inspect the pre-molded connector pins and locking clips for physical damage prior to inserting into the chassis header.
  • Maintain minimum bend radius limits along the cable route to prevent conductor deformation or braid shielding degradation.
  • Ensure the connector locking mechanism snaps completely into the mating slot on the Series C I/O module carrier.
  • Separate I/O Link communication runs from AC power cables and high-current inductive switching lines to prevent electromagnetic coupling.

Additional Information

  • 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
  • 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
  • 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
  • Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
  • Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
  • Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
