Product Details

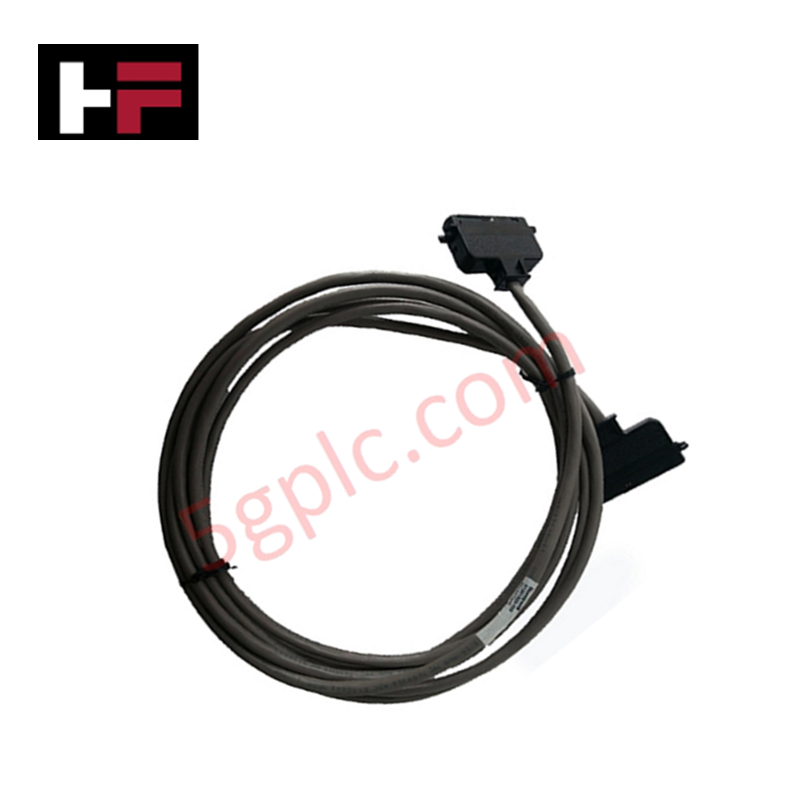

The Honeywell 51305830-100, also cataloged as the 51305830-100 AC Power Cable, operates as a dedicated hardware component for internal cabinet mains voltage distribution and branch splitting within Honeywell DCS enclosure assemblies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51305830-100 |
| Brand | Honeywell |
| Origin | USA |
| Weight | Approx. 0.36 kg (0.79 lbs) |
| Dimensions | Standard cabinet cable harness length |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Passive electrical conductor (13 A / 250 VAC rating) |
| Cable Type | AC Power Splitter Cable Assembly |
| Primary Plug | 3-spade male plug rated at 13 A / 250 V |
| Branch Plugs | Dual (2x) female plugs rated at 13 A / 250 V |
| Wire Category | Electrical Cable/Wire |
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
The power cable incorporates high-dielectric continuous insulation jackets around all conductors to prevent voltage leakage and noise coupling into nearby low-voltage signal lines. By maintaining a insulated boundary between AC power distribution feeds and low-voltage field wiring trays, the assembly prevents 50/60 Hz mains frequency hum from inducing electromagnetic interference on analog signal channels processing 4-20 mA HART loop protocol telemetry.
Frequently Asked Questions
Q: What is the maximum current capacity rating per branch on the 51305830-100 cable assembly?
A: The cable, primary 3-spade male plug, and dual female outlet connectors carry a continuous rating of 13 A at up to 250 VAC.
Q: How does the cable construction prevent physical wire strain at connection points?
A: Connectors are over-molded with industrial-grade strain relief boots that isolate mechanical bending forces from the internal crimped wire terminations.
Q: Can the 51305830-100 be disconnected while cabinet power is active?
A: AC power feeds must be fully de-energized and locked out prior to connecting or disconnecting the harness to avoid electrical arcing or terminal damage.
Field Installation Guidelines
- Verify incoming AC breaker feeds are de-energized and isolated prior to mating or unmating spade terminals.
- Align the 3-spade male plug correctly with the cabinet AC distribution block header and push firmly until fully seated.
- Route AC power cables separately from sensitive DC, communication, and I/O lines in dedicated wire ducts to minimize noise radiation.
- Ensure the cable bends do not violate the minimum bend radius along cabinet wire raceways.
