Product Details

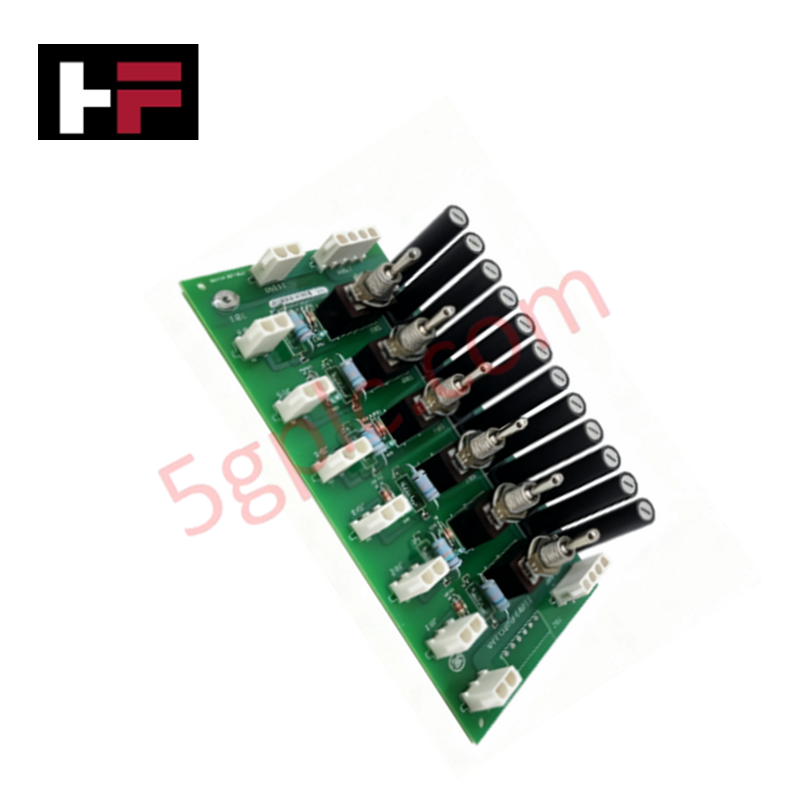

Configured for power regulation and routing in Mark VIe control architectures, the GE IS200JPDEG1AAA (IS200JPDEG1AAA DC Battery Power Distribution Board) provides direct physical and electrical execution of DC bus management and load distribution within Speedtronic turbine control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200JPDEG1AAA |
| Brand | General Electric |
| Origin | USA |
| Weight | N/A (Standard PCB assembly) |
| Dimensions | 16.51 cm x 17.08 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | System-bus dependent |
| Voltage Range | 18-32 VDC |
| Input Isolation | 1500 V |
| Channels | 24 |
Profinet / EtherNet/IP Deterministic Networks
The IS200JPDEG1AAA facilitates distribution for floating DC bus architectures, ensuring stability for downstream terminal boards and system loads. The board integrates into the PDM (Power Distribution Module) system by providing essential feedback through the PPDA I/O pack. To maintain deterministic system health, the board utilizes resistive grounding to center the DC bus, allowing the host controller to detect ground faults with high precision. While the module supports 24 VDC or 48 VDC operation, it serves primarily as a passive distribution interface and does not supply bulk power to high-wattage I/O pack control units, ensuring backplane bus communication velocity remains isolated from transient power fluctuations.
Frequently Asked Questions
Q: Can this board be used to power 500 W bulk power supplies?
A: No. The IS200JPDEG1AAA design is optimized for distribution to terminal boards and local loads. It is current-limited by conventional board construction and should not be used to drive bulk power supplies for I/O pack control power.
Q: How does the board handle system ground faults?
A: The board employs a floating DC bus centered on earth via integrated resistors. It provides voltage feedback signals to the PPDA I/O pack, enabling the turbine control system to monitor for and identify system ground faults in real-time.
Field Installation Guidelines
- Mounting: Secure the board onto a standard DIN rail within the designated PDM cabinet enclosure. Ensure the mounting surface is clean and electrically bonded to the cabinet chassis for proper grounding.
- Wiring: Connect dual power supply inputs to the designated terminals. Use appropriate wire gauges to accommodate the 18-32 VDC range and ensure all connections are torqued to manufacturer specifications.
- Grounding: Verify the integrity of the resistive grounding circuit. The board must be connected to a known earth ground to maintain the reference point for ground fault detection.
- Integration: Ensure the board communicates correctly with the PPDA I/O pack. Perform a software check via the turbine control interface to verify that feedback signals are correctly mapped and reporting nominal status.
- Environment: Maintain the cabinet ambient temperature between 0 and 60 deg C. Ensure the surrounding area is free from conductive dust or moisture that could compromise the 1500 V input isolation integrity.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
