Product Details

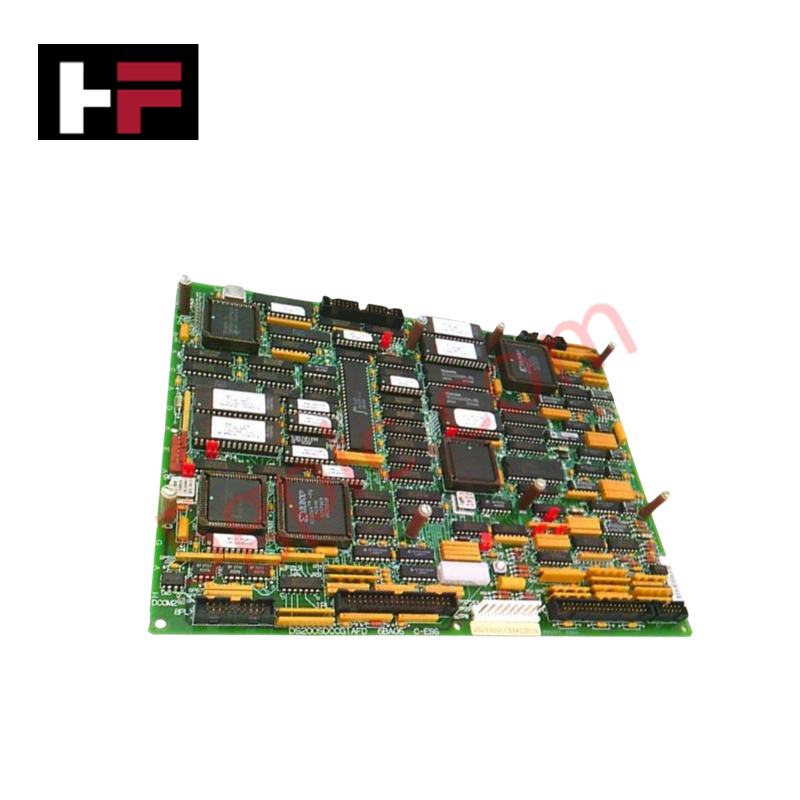

Configured for high-speed motor control and regulation in Mark V turbine drive platforms, the GE DS200SDCCG1AHD (DS200SDCCG1 Drive Control Card) provides direct physical processing of control loops and drive action logic.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200SDCCG1AHD |
| Brand | General Electric |
| Core Components | 3 microprocessors, dual-ported RAM |
Industrial Control & Firmware Compatibility
The DS200SDCCG1AHD utilizes a tri-processor architecture to distribute computational loads for drive control and complex motor dynamics. Backplane bus communication velocity is critical for maintaining synchronization between the three processors; improper bus clocking can lead to processing latency in the mathematical computation modules. Firmware flash compatibility is managed via an external configuration interface, requiring strict adherence to software-hardware version parity. To maintain deterministic performance, I/O density scaling must be verified against the host drive’s specific control requirements, as the board relies on consistent configuration file mapping for all motor control-related processes.
Frequently Asked Questions
Q: How is the drive control configuration updated?
A: Configuration is performed via a serial interface. The board is linked to a laptop through a serial cable connected to an optional auxiliary LAN communication card. Users must install the specific GE configuration software, edit the parameter file, and upload it directly to the control card.
Q: Is the board capable of multi-processor data sharing?
A: Yes. The board features dual-ported RAM, allowing simultaneous access by the three integrated microprocessors. This shared memory structure enables high-speed data transfer between the control processor and the motor-specific computational processors.
Field Installation Guidelines
- Safety Protocol: De-energize the drive system completely before performing any maintenance or connecting serial cables. The drive cabinet contains high-energy circuits that pose significant electrical hazards.
- Serial Link Integrity: If the configuration software fails to communicate with the board, verify the integrity of the serial cable and ensure it is connected to the designated serial port on the auxiliary LAN communication card.
- Configuration Deployment: The configuration file is compatible with multiple boards across different drive units. When deploying the same file to multiple units, verify that the drive firmware versions match to prevent operational faults resulting from incompatible configuration parameters.
- Component Handling: Use ESD-safe practices when accessing the board. Avoid contact with the high-density components on the PCB surface to prevent physical damage or electrostatic discharge, which may degrade the processing reliability of the microprocessors.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
