Product Details

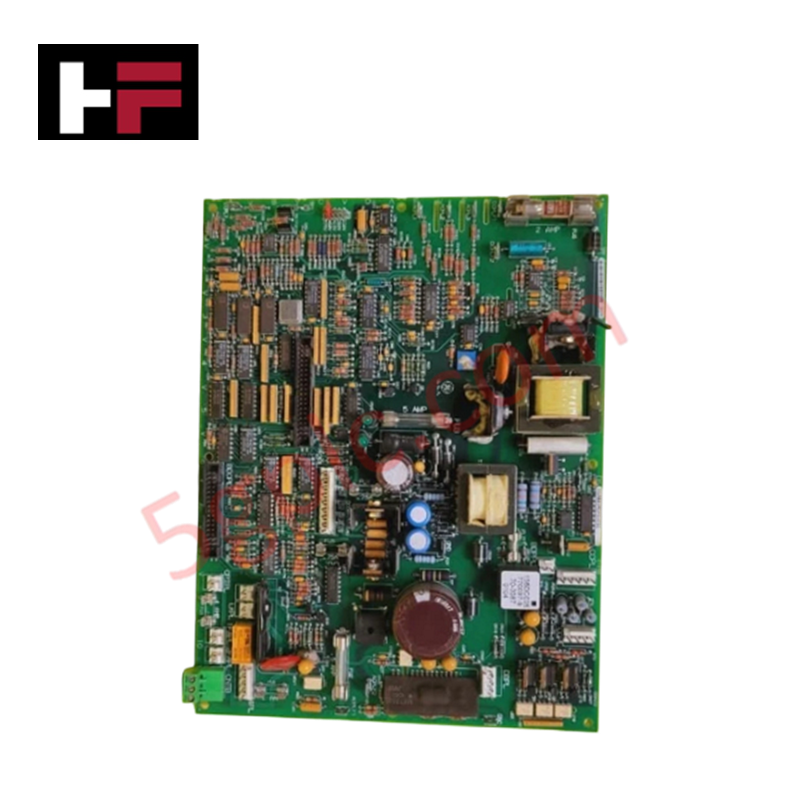

The General Electric DS200IMCPG1C, also cataloged as the DS200IMCPG1C AC2000I Power Supply Interface Card, operates as a dedicated hardware component for power distribution and voltage protection within Mark V turbine control system platforms.
Suffix Breakdown & Model Matrix
| Feature | Specification |
|---|---|
| Assembly | Normal Mark V Series |
| Origin | Domestic (USA) |
| Functional Acronym | IMCP |
| Protective Coating | Normal style |
| Series Grouping | Group 1 |
| Revision | C-rated primary functional revision |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200IMCPG1C |
| Brand | General Electric |
| Origin | United States |
| Weight | 1 lb |
| Protection | 8 integrated fuses |
| Connectivity | 1PL connector to DS200SDCC |
Industrial Control and Firmware Integration
The DS200IMCPG1C integrates into the Mark V drive control architecture through direct physical interfacing with the DS200SDCC drive control board. The module utilizes backplane bus communication velocity to relay power status signals. Its internal circuitry features voltage-limiting components, including diodes, resistors, and capacitors, designed for firmware flash compatibility support when interfaced with host controllers. I/O density scaling is managed through dedicated circuitry that monitors power supply integrity, while the conformal PCB coating ensures protection against environmental contaminants in industrial control environments.
Frequently Asked Questions (FAQ)
Q: What is the primary connection point for this interface board?
A: The board connects to the DS200SDCC drive control board via a cable attached to the 1PL connector.
Q: How is the board protected against electrical overvoltage conditions?
A: The module is equipped with 8 internal fuses designed to protect sensitive onboard components from overvoltage transients and current surges.
Field Installation Guidelines
- Cable Termination: Ensure the cable connecting the 1PL port to the DS200SDCC board is securely seated. Verify locking tabs are engaged to prevent intermittent signal loss due to vibration.
- Component Handling: The board features a conformal protective coating. Use care when handling to avoid scratching or damaging this layer, as it provides essential protection against humidity and particulate ingress.
- Fuse Inspection: Prior to energizing the system, verify the integrity of the 8 onboard fuses using a multimeter. Replace any defective fuses with exact ratings to maintain the intended overvoltage protection.
- Grounding: Mount the board using the 4 factory-drilled holes to ensure a stable chassis connection. Proper grounding is necessary for the voltage-limiting components to operate effectively during surge events.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
