Product Details

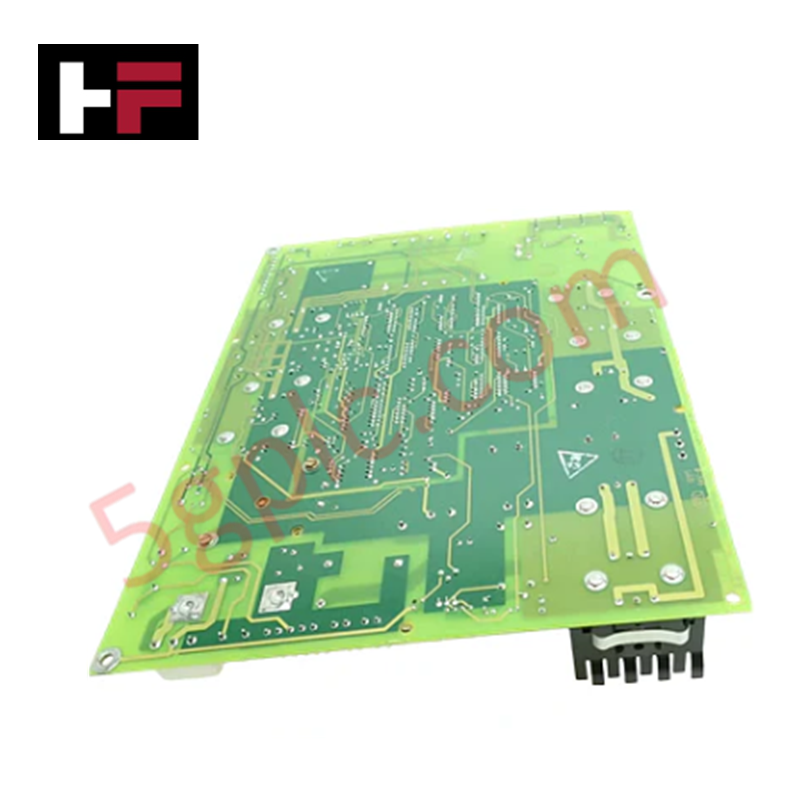

The GE DS200GDPAG1ALF, also cataloged as the DS200GDPAG1 High Frequency Power Supply Board, operates as a dedicated hardware component for power conversion and regulation within EX2000 excitation system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200GDPAG1ALF |
| Brand | General Electric |
| Origin | USA |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | 600 W to 700 W (Output) |
| Core Function | AC/DC power conversion and regulation |
Industrial Control & Firmware Compatibility
The DS200GDPAG1ALF utilizes a multi-stage power architecture, including an input rectifier, buck chopper regulator, and a 27 kHz inverter to deliver regulated output rails. The board manages I/O density scaling through integrated control signal level circuits that coordinate system-wide power distribution. Deterministic performance is maintained via these circuits, which interface with the EX2000 control architecture to ensure consistent voltage regulation. Firmware flash compatibility is not applicable to this module as its operational parameters are governed by hardware-level regulation and switching logic, ensuring stable outputs (50 V AC, 120 V DC, and control-level supplies) regardless of minor input source fluctuations.
Frequently Asked Questions
Q: Does this board support both AC and DC input sources?
A: Yes. The board is designed to accept power from both alternating current (AC) and direct current (DC) sources, utilizing an onboard input rectifier and filter mechanism to condition the power for downstream regulation.
Q: What is the primary function of the integrated buck chopper?
A: The buck chopper acts as a regulator for the internal DC bus. It maintains a consistent voltage level for the subsequent inverter and output stages, ensuring that the 27 kHz inverter and other power rails operate within required tolerances.
Field Installation Guidelines
- Input Power Verification: Prior to energizing, verify that the incoming AC/DC supply voltages fall within the design specifications for the EX2000 excitation system. Incorrect input levels may trigger protection circuits within the input rectifier stage.
- Component Heat Dissipation: The board handles outputs up to 700 W. Ensure that the cabinet ventilation systems are operational and that airflow across the board’s heat-generating components is not obstructed to maintain operating temperatures below 60 deg C.
- Shielding and Grounding: To prevent electromagnetic interference from the 27 kHz inverter switching, ensure all signal and power cables are properly routed and shielded. Terminate shields at the designated chassis ground points to maintain signal integrity for the control level circuits.
- Terminal Connections: Inspect all power output terminals for secure connections. Loose terminations on the 50 V AC or 120 V DC outputs can lead to arcing or voltage drops that may cause intermittent drive control faults.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
