GE DS200TCCAG1A Common Analog I/O BoardGE DS200TCCAG1A Common Analog I/O BoardGE DS200TCCAG1A Common Analog I/O Board
GE DS200TCCAG1A Common Analog I/O Board
GE DS200TCCAG1A Common Analog I/O Board
GE DS200TCCAG1A Common Analog I/O Board

GE DS200TCCAG1A Common Analog I/O Board


Only 10 left - Selling fast

PRODUCT SKU : DS200TCCAG1A

PRODUCT TYPE : Analog Input Modules

PRODUCT VENDOR : General Electric


  • 100% Genuine Parts – Risk-Free 30-Day Returns
  • 1-Year Warranty & Expert Support for Every Order

Product Details

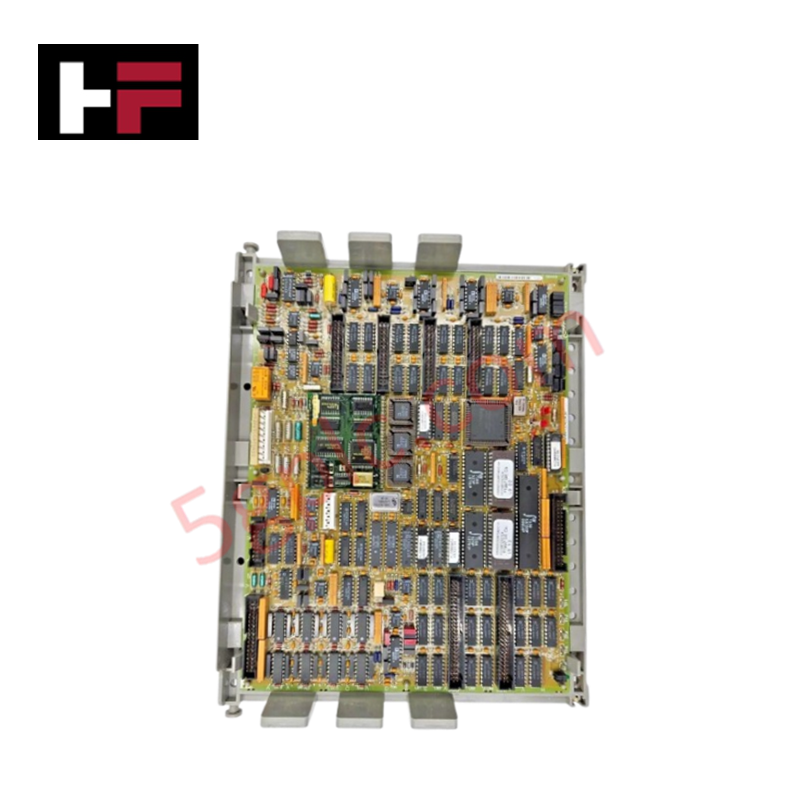

The GE DS200TCCAG1A, also cataloged as the DS200TCCA Analog I/O Board, operates as a dedicated hardware component for analog signal processing within Mark V turbine control and TC2000 systems.

Hardware Specifications

Parameter Specification
Model DS200TCCAG1A
Brand GE General Electric
Origin USA
Dimensions Standard Mark V PCB footprint
Operating Temp Per Mark V environmental standards
Power Consumption Backplane rail supply
Microprocessor 80196
I/O Connectors 2 x 50-pin (JCC, JDD)

Industrial Control and Firmware Compatibility

The DS200TCCAG1A utilizes an onboard 80196 microprocessor to manage analog signal conditioning tasks. The board relies on specific backplane bus communication velocity settings to maintain deterministic data exchange with the host Mark V processor. Firmware flash compatibility must be validated to ensure correct interpretation of PROM-based configuration data. The board supports I/O density scaling through its multi-channel analog architecture; however, performance is contingent upon maintaining thermal operating limits to ensure the microprocessor executes control logic without timing inaccuracies.

Frequently Asked Questions

Q: What is the function of the manually-movable hardware jumpers?

A: The board includes three jumpers: JP1 enables or disables the onboard RS232 port. JP2 disables the oscillator for card testing. JP3 is reserved exclusively for factory testing purposes.

Q: Can the LED status indicator be monitored during operation?

A: Yes. The board features one status LED visible from the side profile, providing a visual reference for board power and operational health.

Field Installation Guidelines

  • Thermal Management: Given the presence of the 80196 microprocessor, ensure the cabinet cooling system is fully functional. Avoid locating this module near high-heat components to prevent processing drift.
  • Handling: The PCB is provided with a standard protective coating. Use caution when handling to avoid scratching the surface, as this may compromise moisture and dust resistance.
  • Connector Integrity: Use only standard 50-pin interface cables for connectors JCC and JDD. Verify pins are straight and fully seated to ensure reliable signal transmission.
  • Jumper Configuration: Do not alter jumper positions (JP1-JP3) from factory defaults unless required by specific diagnostic or communication configuration procedures detailed in the system manual.
  • ESD Precautions: Always use a grounded anti-static wrist strap when removing or installing this board, as the onboard PROM and microprocessor modules are sensitive to electrostatic discharge.

Additional Information

  • 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
  • 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
  • 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
  • Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
  • Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
  • Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
