Product Details

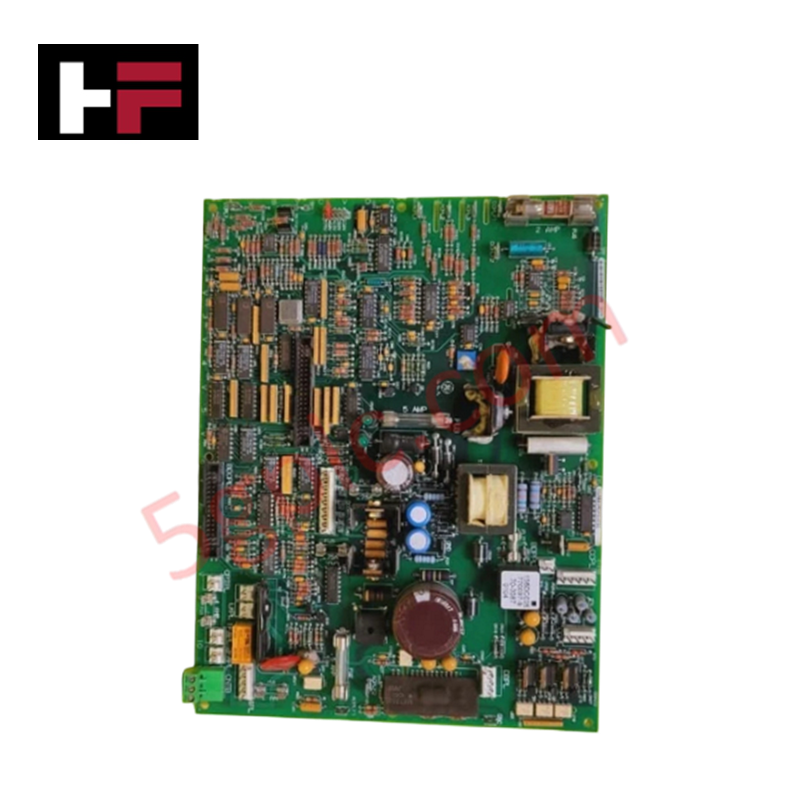

Configured for power conversion and I/O interface management in drive control systems, the General Electric DS200IMCPG1CCB (DS200IMCPG1CCB I/O Power Supply Interface Module) provides direct physical/electrical execution of voltage regulation and signal distribution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200IMCPG1CCB |
| Brand | General Electric |
| Weight | 0.3 kg - 1.5 kg |
| Dimensions | 15.9 cm x 17.8 cm |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | 10 W - 250 W |
| Input Voltage | 100-240 V AC |
| Output Voltage | 5 V DC, 12 V DC, 24 V DC |
| Output Frequency | 0 - 500 kHz |
Industrial Control and Drive Systems
The DS200IMCPG1CCB facilitates deterministic operation through advanced I/O density scaling, allowing for complex power distribution across drive control architectures. The module supports firmware flash compatibility, enabling precise adjustment of output parameters and diagnostic reporting. Integrated backplane bus communication velocity allows this module to function within high-speed drive control networks, maintaining stable reference voltages for internal logic circuits. The use of surface mount technology ensures high component density, while integrated thermal management supports operation within demanding industrial temperature ranges.
Frequently Asked Questions (FAQ)
Q: Can this module be installed on a standard DIN-rail?
A: Yes, the module is designed for DIN-rail mounting. Ensure the rail is properly grounded to the cabinet chassis to provide an adequate return path for electromagnetic interference (EMI) shielding.
Q: What are the output voltage capabilities of the module?
A: The module provides regulated outputs of 5 V DC, 12 V DC, and 24 V DC, catering to various control logic and sensing requirements within the drive system.
Field Installation Guidelines
- Mounting Stability: Secure the module onto the DIN-rail using the provided locking mechanism. Verify that the rail is mounted horizontally and is mechanically rigid to prevent vibration-induced loosening of electrical terminations.
- Input Wiring: Route AC input wiring (100-240 V AC) through designated wireways, ensuring segregation from low-voltage signal cabling to prevent crosstalk and induced noise.
- Thermal Clearance: Maintain a minimum clearance of 50 mm above and below the module to facilitate effective heat dissipation. Do not obstruct the airflow path, as the module power rating can reach up to 250 W.
- Grounding: Terminate the functional earth (FE) connection to the cabinet backplane. A low-impedance ground connection is mandatory for the operation of the internal surge voltage protection circuits and to maintain signal stability across the 500 kHz frequency output range.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
