Product Details

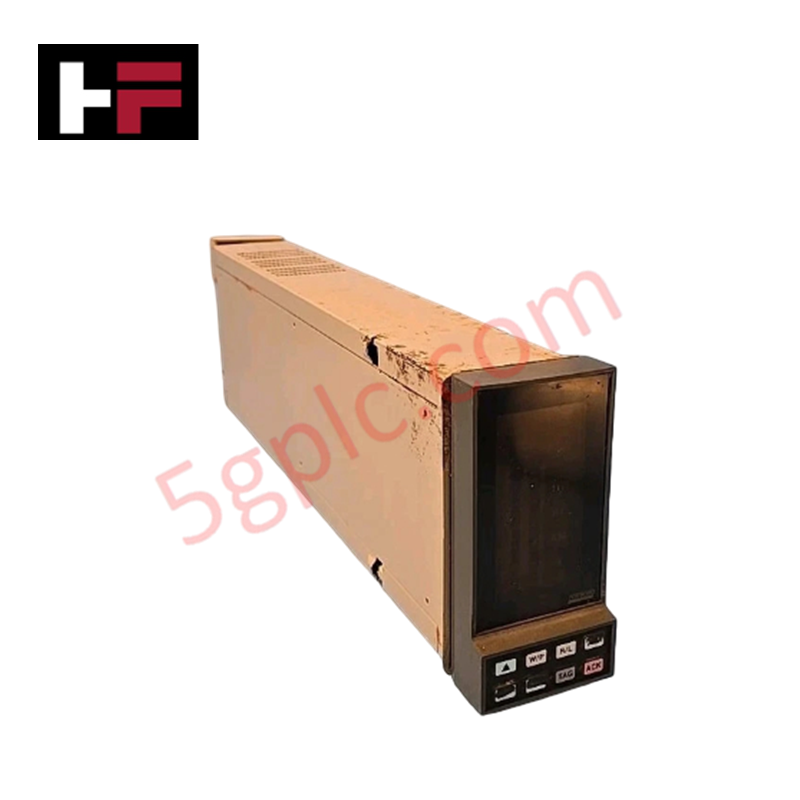

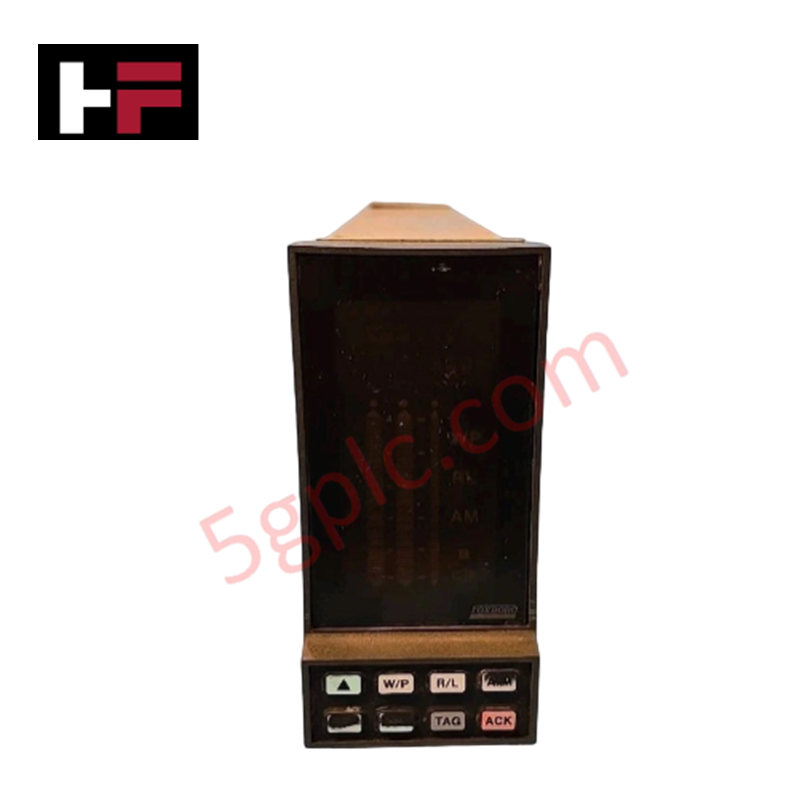

The Foxboro K0143AK-E, also cataloged as the K0143AK Operator Interface Panel, operates as a dedicated hardware component for real-time process visualization and relay control execution within Foxboro I/A Series platforms. It processes field inputs and drives direct relay outputs to maintain real-time operator intervention across critical DCS control loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | K0143AK-E |
| Brand | Foxboro |
| Origin | USA |
| Weight | Approx. 3.9 kg |
| Dimensions | 125 mm x 40 mm x 115 mm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 24 VDC nominal |
| Display Type | High-resolution digital display |
| Input Signals | Configurable 4-20 mA, 0-10 VDC process loops |
| Output Types | Discrete relay outputs for control action |
| Mounting Options | Panel mount or rack mount |
Process Loop Signal Conditioning and Channel Isolation
The Foxboro K0143AK-E incorporates dedicated signal conditioning circuits designed to maintain 4-20 mA HART loop protocol stability and channel-to-channel galvanic isolation. By isolating incoming analog process variables from backplane logic power, the unit suppresses ground loop currents and transient common-mode voltage spikes. This architecture ensures precise analog-to-digital conversion without signal degradation during severe electromagnetic interference.
Frequently Asked Questions
Q: What power supply tolerances are required for stable operation?
A: The module requires a regulated 24 VDC power feed. To prevent reset cycles during heavy relay coil activation, line voltage fluctuations should remain within +/- 10 percent of the nominal rating.
Q: Is hot-swapping supported for the K0143AK-E during active system execution?
A: Field replacement requires powering down the local sub-rack module feed. Removing the unit while active process signal inputs or relay output coils are energized may result in field switch contact arcing or unwanted fail-safe tripping.
Field Installation Guidelines
For panel or rack integration, maintain a minimum physical clearance of 50 mm above and below the module enclosure to allow adequate convection air cooling across the operating temperature range of -40 deg C to +70 deg C.
All 4-20 mA and 0-10 V input signal wiring must utilize twisted-shielded pair conductors. The cable shield drain wire must be terminated at a single system chassis ground bar to mitigate ground potential loops. Ensure panel cutout edges are deburred and NPT thread engagements follow a minimum 5-thread depth standard for sealed enclosure entry.
