Product Details

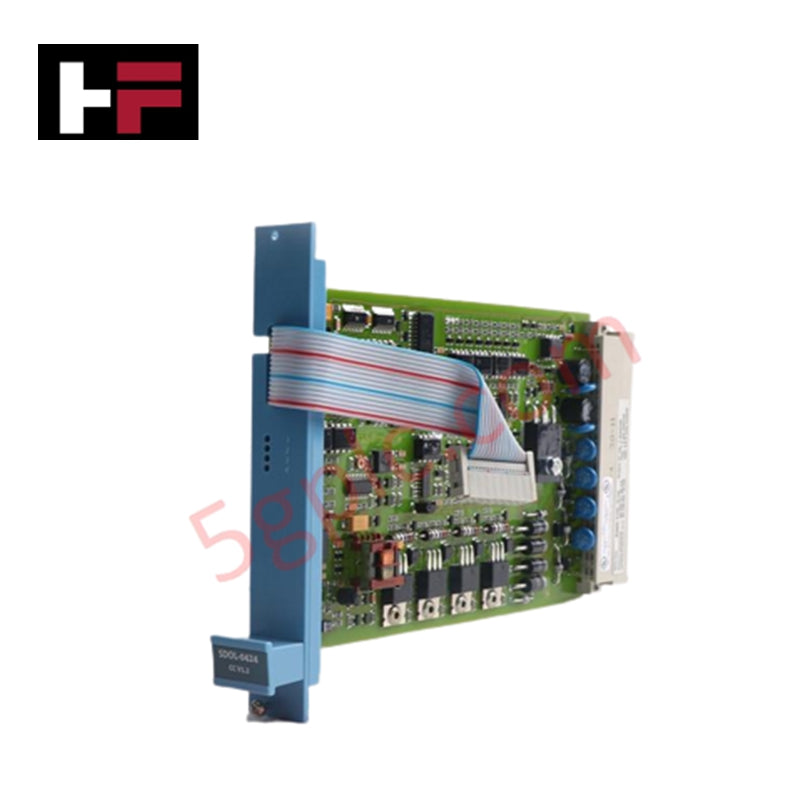

The Honeywell FC-IO-0002 CC V1.1, also cataloged as the FC-IO-0002 I/O Extender Module, operates as a dedicated hardware component for bus extension and signal distribution expansion within Honeywell Safety Manager and Fail Safe Control (FSC) systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-IO-0002 CC V1.1 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.24 kg |
| Dimensions | 17.8 cm x 4.6 cm x 24.9 cm (4 TE, 3 HE / 4 HP, 3U) |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 5 VDC, 100 mA (Module supply) |
| Supply Voltage | 5 VDC / 100 mA |
| Output Specifications | 2x 5 VDC, 2x Max 1.25 A (LVC) |
| Output Groups | 2 groups |
| Voltage Drop | 0.2 V < V < 0.8 V (versus highest Vin) |
| Approvals | CE, TUV, UL, CSA |
Channel-to-Channel Isolation & Loop Integrity
The FC-IO-0002 CC V1.1 module is engineered to manage bus distribution and signal extension across up to 18 I/O boards in Honeywell Safety Manager racks. Featuring dual diode OR-ed inputs and active galvanic isolation, the module preserves low-noise signal path integrity across connected 4-20 mA HART loop protocol lines and digital channels. Its redundant distribution architecture prevents bus loading anomalies from disrupting central controller communication, ensuring continuous monitoring in safety-critical applications.
Frequently Asked Questions
Q: What are the output voltage and current specifications for the FC-IO-0002 CC V1.1 extender groups?
A: The module provides two output groups rated at 5 VDC each, delivering up to 1.25 A maximum per group with low voltage drop (LVC).
Q: What safety and compliance standards does the FC-IO-0002 hold?
A: The module is certified under CE, TUV, UL, and CSA standards for installation in industrial control and Safety Instrumented System (SIS) platforms.
Field Installation Guidelines
- Ensure the FSC / Safety Manager rack power supply is completely de-energized before inserting or removing the extender module from the backplane.
- Verify that backplane connectors are free of debris and properly aligned with the card slot guide rails to avoid pin damage.
- Secure the module firmly into its designated 4 TE (3U) chassis slot using top and bottom retention fasteners to guarantee grounded enclosure contact.
- Route auxiliary wiring and bus extension cables cleanly away from high-voltage field lines to prevent electromagnetic interference.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
