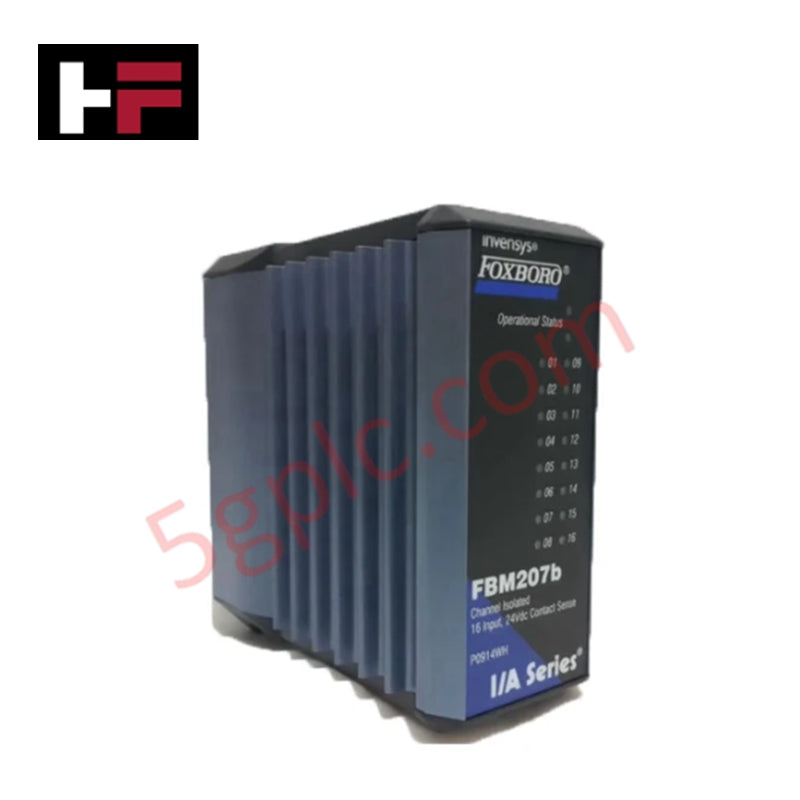

FBM207b P0914WH | Foxboro I/A Series 16-Channel Isolated Voltage Monitor Module

Product Overview

The Foxboro FBM207b (P0914WH) serves as a high-density, channel-isolated input interface within the Foxboro I/A Series Distributed Control System (DCS). This module monitors 16 independent voltage points, converting field-side electrical status into digital data for the system control processors. It excels in complex environments requiring individual channel protection to prevent cross-talk and ground loop interference. We supply this unit as 100% Brand New and Original, ensuring your control architecture utilizes factory-fresh semiconductors for mission-critical power monitoring and process status acquisition.

Technical Specifications

Engineering Advantages

The FBM207b P0914WH addresses rigorous industrial electrical monitoring requirements through its hardened hardware architecture:

• Complete Channel-to-Channel Isolation: The module incorporates independent galvanic isolation for every one of its 16 channels. This architecture prevents a fault or high-voltage surge on a single field loop from propagating to adjacent channels or the central system logic, significantly increasing overall plant safety.

• High-Density Signal Acquisition: By packing 16 isolated inputs into a single 6.2 cm wide profile, the FBM207b optimizes limited cabinet space. This high density reduces the total number of required baseplate slots and simplifies the wiring layout for large-scale power monitoring projects.

• Total Ground Loop Elimination: The isolated design breaks electrical paths between field sensors and the DCS. This eliminates the "signal jitter" and data inaccuracies typically caused by ground potential differences in large facilities, ensuring the control processor receives 100% accurate voltage status.

• Ruggedized USA Build Quality: Manufactured in the USA, the P0914WH utilizes industrial-grade components that withstand the thermal cycling and mechanical vibrations found in non-climate-controlled marshalling cabinets. The robust exterior protects sensitive internal optics from dust and industrial contaminants.

• Seamless Fieldbus Integration: The module communicates via a redundant 2 Mbps Fieldbus. It automatically synchronizes with the Field Control Processor (FCP) upon seating, enabling rapid hot-swap maintenance without requiring a total system shutdown or manual software re-calibration.

FAQs

• What is the specific benefit of the "b" version (FBM207b) over standard modules?

  The FBM207b variant typically provides specialized voltage range thresholds or response times tailored for high-speed status monitoring. This P0914WH version ensures 16-channel isolation, which is superior to group-isolated modules for high-reliability applications.

• How do I verify the hardware condition?

  We guarantee every unit arrives as 100% Brand New. Each module ships in its original Foxboro factory packaging with intact security seals. This ensures the internal components have zero prior electrical stress or field runtime.

• Does this module support hot-swapping?

  Yes. You can install or replace the FBM207b on an energized 200 Series modular baseplate. The DCS re-identifies the new hardware immediately, allowing for continuous process monitoring during maintenance cycles.

• Is the P0914WH compatible with all I/A Series versions?

  The FBM207b integrates with all modern Foxboro EcoStruxure DCS platforms and legacy I/A Series systems using 200 Series baseplate hardware. Ensure your system configurator includes the correct FBM207b definition to enable full diagnostic features.
