Product Details

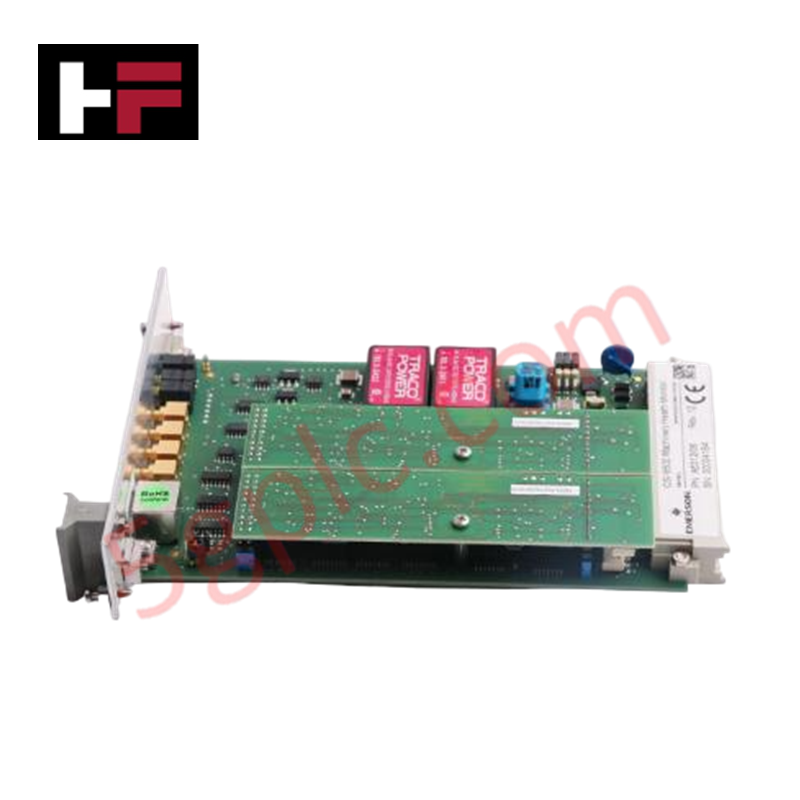

Configured for rotation and phase monitoring in turbomachinery protection systems, the Emerson EPRO A6312/06 (A6312/06 Speed and Key Monitor) provides direct physical/electrical execution. It processes dual-channel sensor signals from rotating shafts to execute real-time speed, phase, zero-speed, and direction measurements across AMS 6500 platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | A6312/06 |
| Brand | Emerson EPRO |
| Base Model | A6312/06 |
| Origin | Germany |
| Power Consumption | Rack backplane bus powered |
| Number of Inputs | 2 independent inputs |
| Input Type | Eddy current or differential sensors |
| Input Voltage Range | 0 to +/-27.3 VDC |
| Input Frequency Range | 0 to 20,000 Hz (up to 65,535 RPM) |
| Output | Post-buffered proportional outputs (0/4-20 mA) |
| Rack Compatibility | AMS 6000 and AMS 6500 19-inch rack mount chassis |
| Hot-Swappable | API 670-compliant hot-swap capability |
Eddy-Current Probe Scaling and Gap Voltage Validation
The A6312/06 monitor conditions raw high-frequency signals generated by proximity sensors, enforcing strict eddy-current probe scaling for precise tooth-passing and keyphasor detection. Integrated signal processing circuits execute continuous gap voltage validation targeting -10 VDC baseline levels on eddy-current probes, verifying sensor physical positioning and target distance prior to processing speed, phase angle, and direction vector dynamics.
Frequently Asked Questions
Q: Does the A6312/06 module support hot-swapping during active machinery operation?
A: Yes, the module features API 670-compliant hot-swappable architecture, enabling physical replacement without shutting down rack power or interrupting adjacent monitor channels.
Q: What input sensor types and frequency thresholds are supported by the dual channels?
A: The two independent channels accept inputs from eddy-current or differential sensors across a voltage range of 0 to +/-27.3 VDC and a frequency response of 0 to 20,000 Hz (up to 65,535 RPM).
Q: How are analog diagnostic signals exposed for external monitoring devices?
A: The front plate and backplane connectors provide post-buffered proportional outputs delivering calibrated 0/4-20 mA analog signals corresponding to calculated rotational parameters.
Field Installation Guidelines
- Confirm rack guide rail alignment for 8TE (AMS 6500) or 6TE (AMS 6000) card slot width before inserting the module.
- Slide the 3U card steadily into the chassis slot until rear connectors engage the backplane receptacle.
- Fasten top and bottom panel thumb screws to secure electrical contact and ground continuity.
- Verify eddy-current probe gap voltage bias targets (-10 VDC nominal) using calibrated test points before locking setpoints.
- Ensure field cable shields from proximity sensors are landed at the designated chassis single-point ground block to suppress cross-talk.
