Product Details

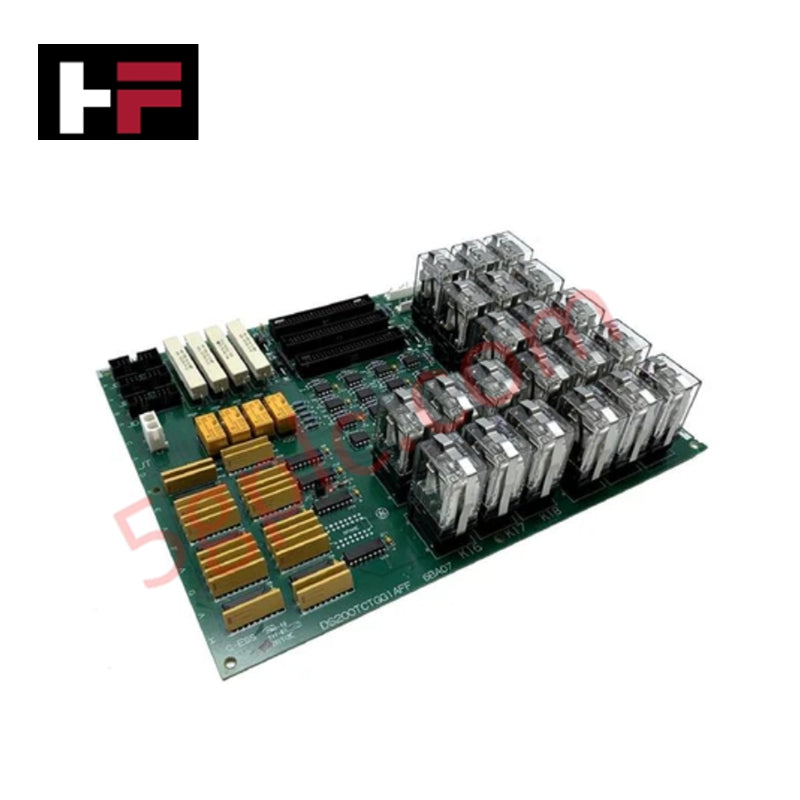

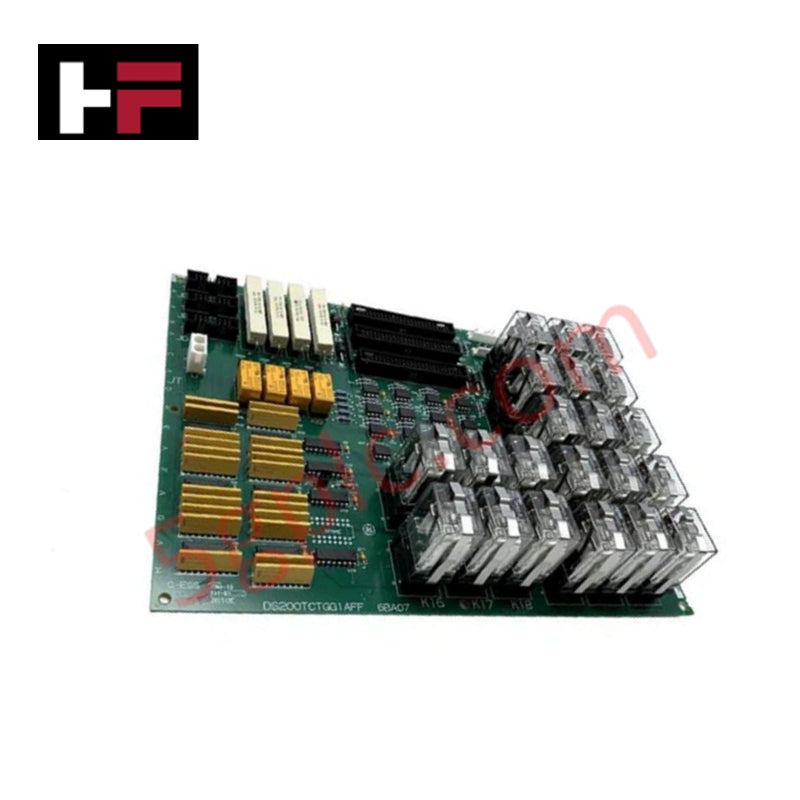

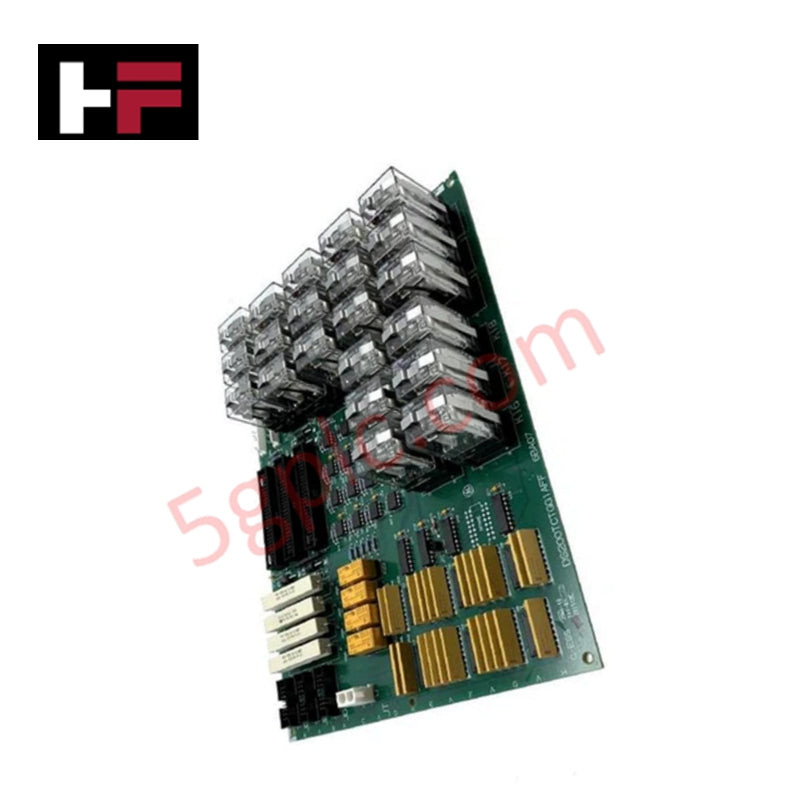

Configured for emergency shutdown and trip logic execution in Mark V turbine control systems, the GE DS200TCTGG1A (DS200TCTG Turbine Trip Board) provides direct physical execution of turbine trip sequences and breaker control.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCTGG1A |
| Brand | General Electric |
| Origin | USA |
| Operating Temp | Standard industrial range |
| Power Consumption | Not specified |
| Relays | 21 x Electromechanical plug-in relays |
| Connectors | 3 x 50-pin (JLX, JLY, JLZ), 2 x 12-pin (JN, JM) |
Industrial Control and Firmware Flash Compatibility
The DS200TCTGG1A utilizes a Simplex software architecture to manage high-speed trip operations. Deterministic network performance is maintained through fixed relay logic and integrated circuit pathways. Firmware flash compatibility is not applicable to this board, as logic execution is hardware-defined via the TCTG ETR/PTR relay circuits and generator breaker close circuits. The module supports deterministic networks by facilitating manual and external trip signal processing, ensuring minimal latency between trip initiation and relay actuation. The board incorporates normal-style conformal coating to protect integrated circuits from atmospheric contamination in standard industrial environments.
Frequently Asked Questions
Q: Are the 21 electromechanical relays field-replaceable?
A: While the relays are plug-in type, they are highly sensitive to mechanical shock and electrostatic discharge. Replacement should only be performed in a controlled environment using original-specification components to ensure trip timing integrity.
Q: Can this board be used to replace the base DS200TCTG board without adjustment?
A: The G1A revision includes functionality-enhancing modifications. Ensure the control system software and associated terminal board configurations are compatible with the G1A revision before installation, as incorrect revision matching may cause trip sequence logic mismatches.
Field Installation Guidelines
- Discharge static electricity from the body and tools prior to handling the board to prevent catastrophic damage to the electromechanical relays and integrated circuits.
- Verify that all 50-pin (JLX, JLY, JLZ) and 12-pin (JN, JM) connectors are fully seated and free of oxidation to ensure reliable trip signal transmission.
- Handle the board exclusively by its edges or faceplate to avoid applying stress to the fragile relay assemblies.
- Perform a functional trip test post-installation to confirm that the ETR and PTR relay circuits respond within the defined timing parameters of the Speedtronic control system.
