Product Details

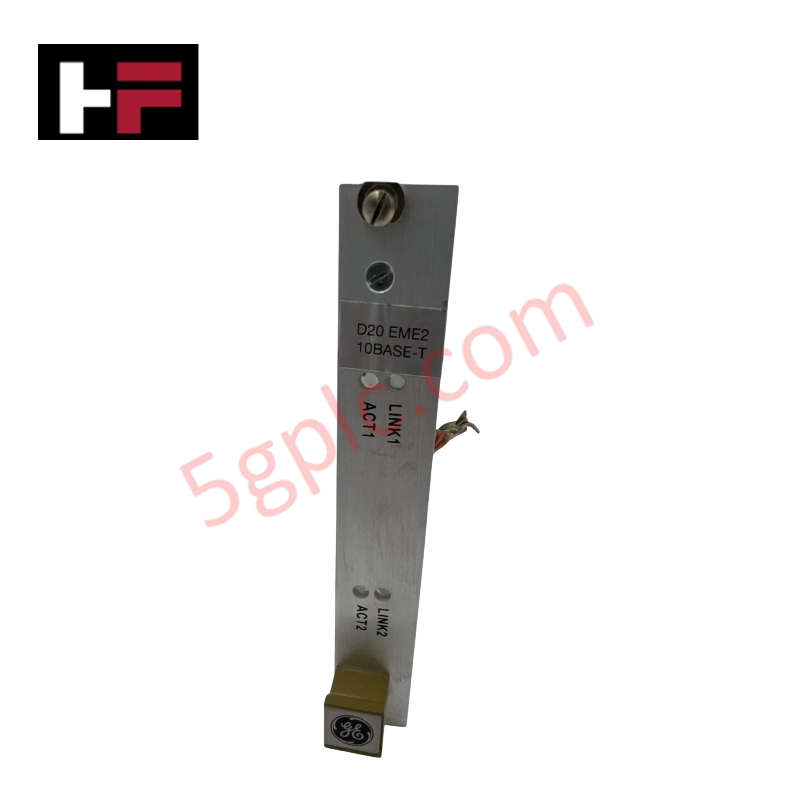

The GE D20 EME2, also cataloged as the D20 EME2 10Base-T Ethernet Module, operates as a dedicated hardware component for digital signal control and communication within D20 substation automation platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | D20 EME2 |
| Brand | GE (General Electric) |
| Origin | United States |
| Weight | 300 g |
| Dimensions | 110 mm x 60 mm x 35 mm |
| Operating Temp | -25 - +55 deg C |
| Power Consumption | Base Architecture Dependent |
| Input Channels | 16 digital inputs |
| Input Type | Dry contact, 24 VDC baseline level |
| Output Channels | 16 digital outputs |
| Output Type | Dry contact, 24 VDC baseline level |
| Maximum Current | 2 A continuous per channel |
| Communication Interface | 10Base-T Ethernet |
| Protocol Support | Modbus RTU interface encapsulation |
| Relative Humidity | 5% to 95% RH (non-condensing) |
Suffix Breakdown & Model Matrix
- D20 EME2: Secondary generation designator establishing the integrated Ethernet and discrete logic I/O processing platform framework.
- 10BASE-T: Physical communication interface layer specifying the 10 Mbps twisted-pair copper line link profile configured for terminal execution.
Profinet / EtherNet/IP Deterministic Networks and Firmware Flash Compatibility
The sub-assembly routes 16 discrete input states and actuates 16 discrete dry contact output loops via embedded switching arrays. Communication maps these I/O vectors directly into 10Base-T Ethernet registers, executing command frames via Modbus protocol encapsulation. To prevent timing collisions during high-density I/O scanning across adjacent Profinet or EtherNet/IP deterministic networks, the hardware relies on exact coordination with verified firmware flash compatibility baselines flashed onto the upstream station receiver.
Frequently Asked Questions
Q: Can the D20 EME2 module be inserted or removed from the backplane assembly while active voltage is present?
A: No. The internal logic pins and the 24 VDC dry contact circuit contacts do not feature staggered or pre-charged trace networks. Live hot-swapping can induce voltage transients that corrupt the shared communication bus and damage internal logic circuitry.
Q: How is the 2 A maximum current output limit maintained across adjacent digital channels?
A: The 2 A threshold is rated for independent resistive load switching at 24 VDC. For inductive load profiles, external suppression circuits must be installed parallel to the dry contacts to avoid contact welding caused by back-EMF voltage spikes.
Field Installation Guidelines
- DIN-Rail and Chassis Grounding: Snugly secure the compact enclosure onto the master mounting track, verifying that the integrated chassis ground connection interfaces directly with a clean, unpainted surface of the metallic backpanel.
- Discrete I/O Field Wiring: Route all 24 VDC dry contact input and output wires through separate field wiring trays, ensuring that the lines are segregated from parallel high-voltage AC distribution power cables.
- Twisted-Pair Ethernet Shielding: Terminate the 10Base-T copper link network using shielded twisted-pair cables, grounding the overall cable shield framework at the enclosure entrance boundary to mitigate stray electromagnetic induction.
