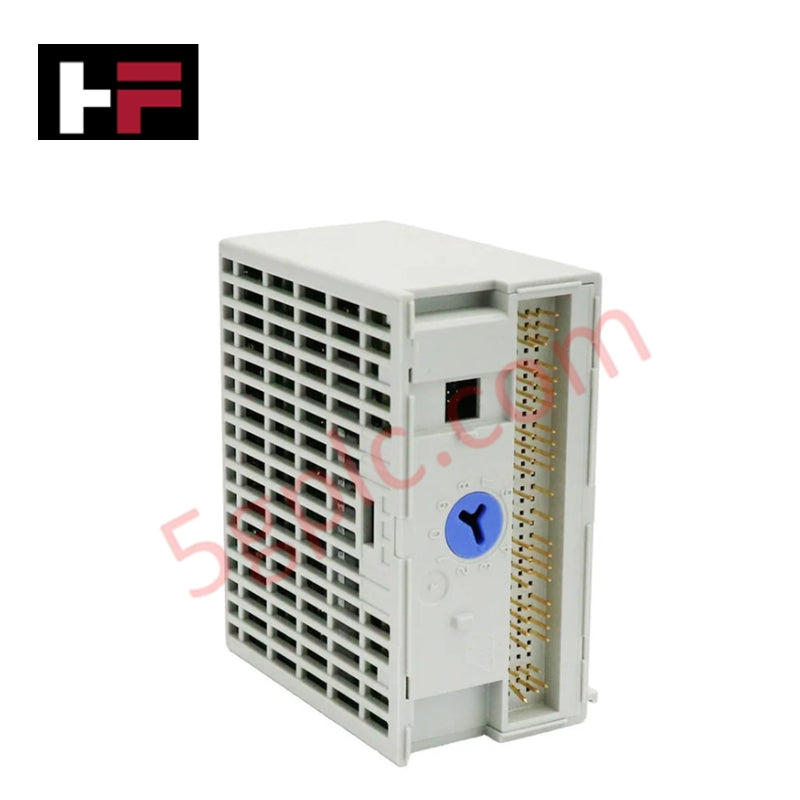

Allen-Bradley 1797-IE8NF FLEX Ex 8-Channel Intrinsically Safe Analog Input Module

Product Overview

The Allen-Bradley 1797-IE8NF functions as a high-precision interface for hazardous area instrumentation within the FLEX Ex I/O family. This module provides eight single-ended analog inputs designed specifically for mounting in Class I, II, III Division 1 & 2 locations. We supply this unit as 100% Brand New original factory stock. It features an integrated noise filter to ensure signal stability in high-interference environments, allowing for the direct connection of 4-20mA or 0-20mA field transmitters without the need for additional external barriers.

Technical Specifications

Engineering Advantages

• Intrinsically Safe (IS) Design: The 1797-IE8NF eliminates the requirement for separate IS barriers or explosion-proof enclosures. The module's internal circuitry limits energy levels to prevent the ignition of flammable atmospheres, significantly reducing hardware costs and cabinet footprint in oil, gas, and chemical processing facilities.

• Integrated Hardware Noise Filtering: The "NF" designation signifies advanced onboard filtering. This feature suppresses high-frequency electromagnetic interference (EMI) and crosstalk from nearby motor drives or power cables, providing clean 16-bit data to the controller in electrically noisy industrial environments.

• Rapid Signal Processing: A 4 ms step response allows the module to capture fast-acting process variables. This low-latency performance ensures that the control system reacts instantly to pressure surges or flow fluctuations, maintaining tighter process loops and enhancing overall plant safety.

• Comprehensive Fault Diagnostics: Eight dedicated red LEDs provide per-channel status monitoring. These indicators instantly alert technicians to wire-off conditions or sensor failures, facilitating rapid troubleshooting without the need to connect a laptop or open the control program.

• High-Resolution Data Conversion: The 16-bit analog-to-digital converter transforms field signals into precise digital values. This granularity proves essential for applications requiring high accuracy, such as custody transfer or precision chemical dosing.

FAQs

• Which terminal base must I use with the 1797-IE8NF?

  You must use the 1797-TB3 or 1797-TB3S terminal base. These bases provide the necessary termination points and physical mounting for the FLEX Ex module while maintaining IS circuit separation.

• Does this module support HART communication?

  No. The 1797-IE8NF focuses on high-speed, filtered analog input processing. If your application requires HART protocol transparency for smart device diagnostics, you should consult the 1797-IE8H model.

• What is the significance of Keyswitch Position 3?

  The keyswitch on the terminal base ensures that only the correct module type occupies the slot. Setting the base to Position 3 prevents accidental insertion of a different module type, which could otherwise compromise the intrinsic safety of the loop.

• How do I verify the "Brand New" status of this unit?

  Every 1797-IE8NF arrives in its Original Factory-Sealed Packaging with the manufacturer's security label intact. As a new unit, the internal diagnostics register zero operation hours, and the gold backplane contacts remain free of any insertion marks, guaranteeing maximum service life in hazardous zones.
