Product Details
Product Overview

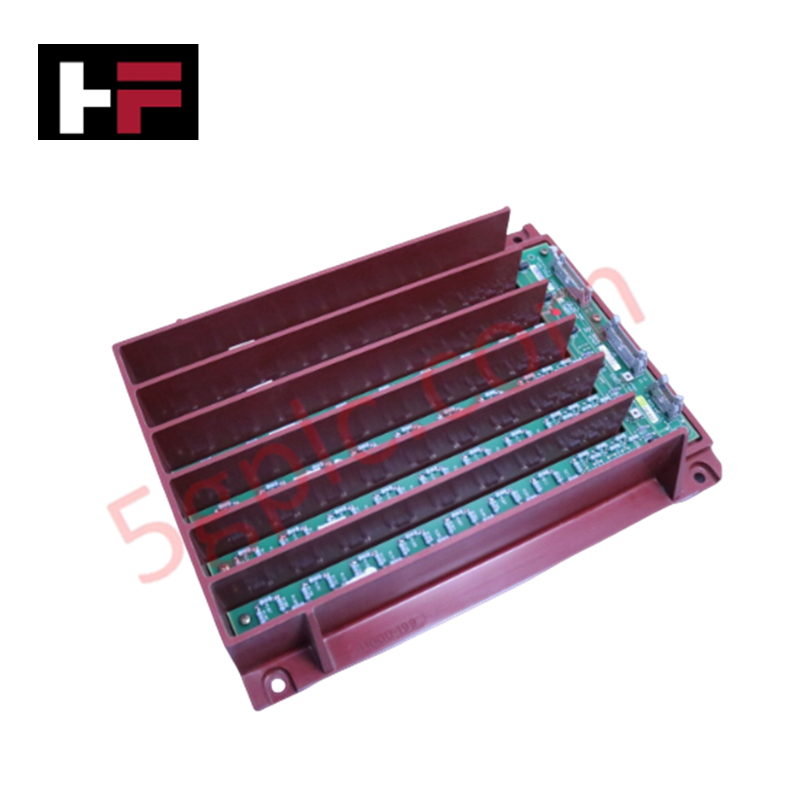

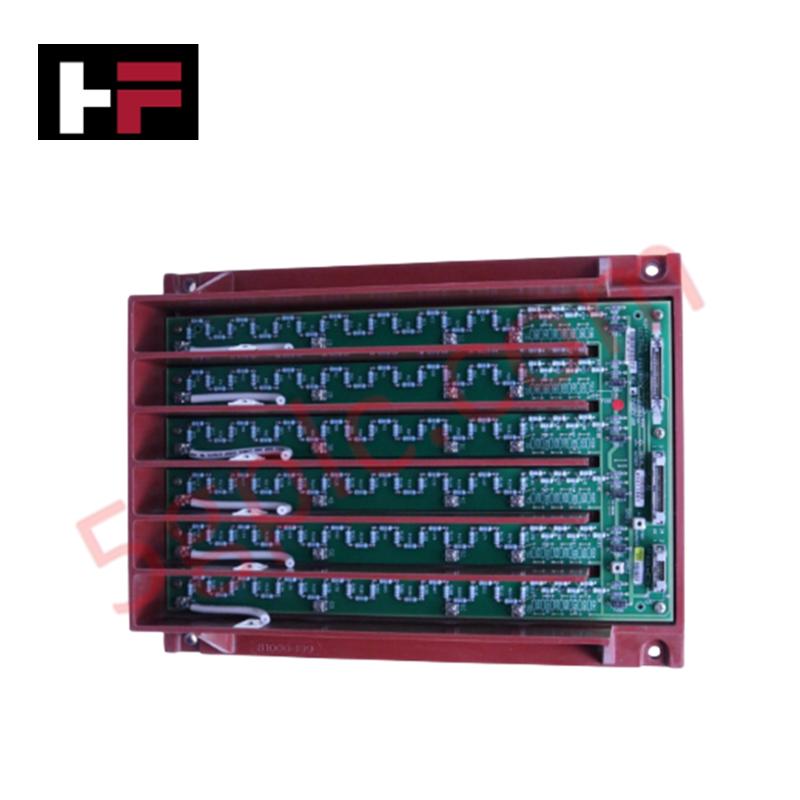

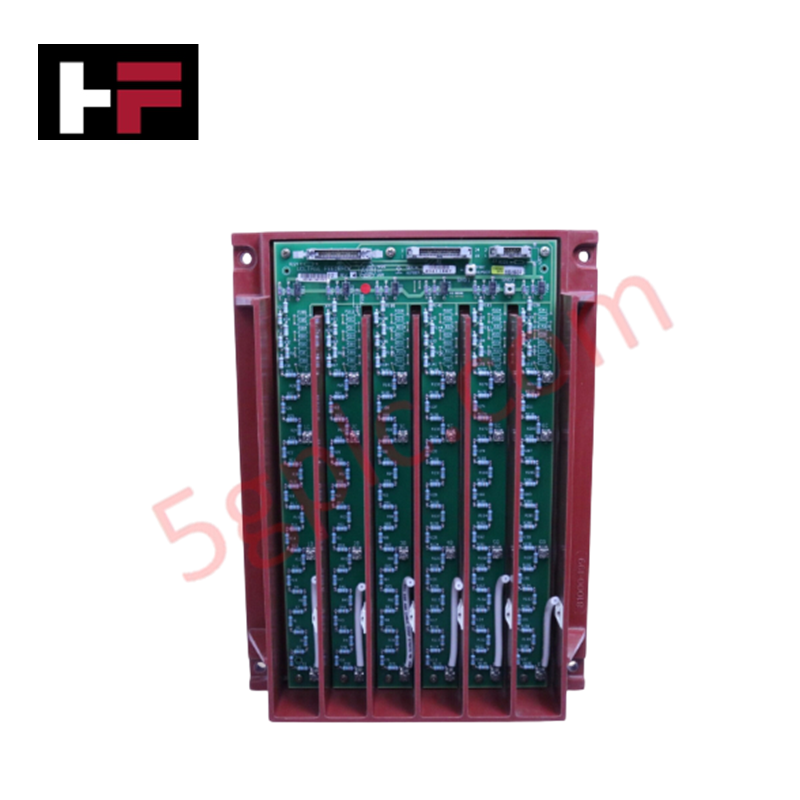

The Allen Bradley 81000-199-53-R acts as a specialized Interface Board engineered for the PowerFlex series of Variable Frequency Drives (VFD). This board facilitates critical communication between the drive’s main control architecture and external peripheral devices or feedback systems. It ensures precise signal translation and data synchronization, allowing the drive to execute complex motor control algorithms without latency. We supply this unit as 100% Brand New and Original, manufactured in the United States to meet strict Rockwell Automation quality benchmarks.
Technical Specifications
The 81000-199-53-R features a compact footprint designed for internal chassis integration:
| Feature | Specification |
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Part Number | 81000-199-53-R |
| Component Type | Interface Printed Circuit Board (PCB) |
| Country of Origin | United States |
| Dimensions | 9.4 cm x 4.0 cm x 7.2 cm |
| Weight | 0.3 kg |
| Condition | 100% Brand New Original |
| Mounting | Internal Drive Slot / Standoff Mount |
Engineering Advantages
The 81000-199-53-R provides technical solutions for high-demand drive applications:
-
High-Speed Signal Translation: The board utilizes high-frequency opto-couplers and precision logic gates to translate external command signals into drive-readable data. This prevents "signal jitter" that causes unstable motor RPM.
-
Compact Modular Design: Measuring only 9.4 cm in length, this board fits easily into the constrained internal compartments of modern VFD chassis. The vertical connector layout maximizes airflow, preventing the board from contributing to internal heat buildup.
-
Superior Noise Immunity: Multi-layer PCB shielding protects the sensitive communication traces from the massive electromagnetic interference (EMI) generated by the drive’s power semiconductors (IGBTs). This maintains data integrity even when the board operates in close proximity to high-voltage bus bars.
-
Corrosion Resistance: The board features specialized gold-plated contact points on its primary interface connectors. These contacts resist oxidation in humid or chemically aggressive environments, ensuring a low-impedance connection throughout the drive’s service life.
FAQs
-
Does the "R" suffix indicate a refurbished part?
No. In the Rockwell Automation ecosystem, the "-R" suffix denotes a "Renewal Part" or a specific SKU assigned for replacement stock. We guarantee every 81000-199-53-R we ship is 100% Brand New and has never been previously energized or installed.
-
What are the common symptoms of a failing interface board?
A faulty interface board typically triggers communication loss faults (such as "Port Error") or causes erratic behavior in the drive’s Human Interface Module (HIM). If the drive fails to recognize external speed commands while the power stage remains healthy, the 81000-199-53-R is often the primary suspect.
-
Are special tools required for installation?
Installation requires only standard precision screwdrivers and proper Electrostatic Discharge (ESD) protection. You must wear an ESD wrist strap during the swap to prevent static discharge from damaging the board’s sensitive micro-components.
-
Does this board require firmware configuration?
The board typically functions as a "hardware-transparent" interface. However, we recommend checking your Drive firmware version through DriveExplorer or Studio 5000 after installation to ensure the system recognizes the new hardware revision correctly.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
