Product Details

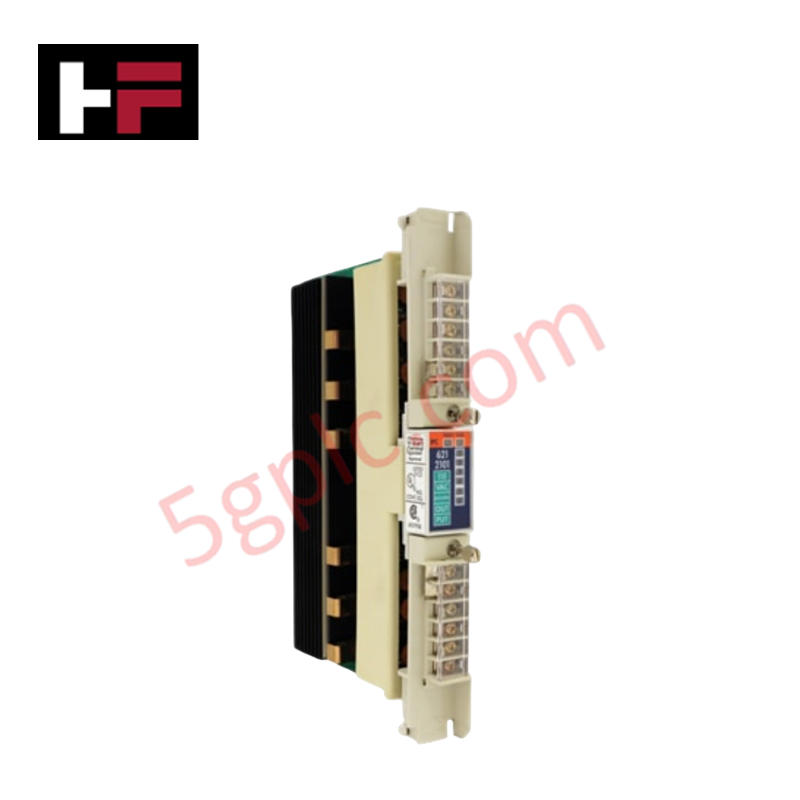

Configured for 115 VAC discrete switching in IPC 620 rack assemblies, the Honeywell 621-2101 (621-2101 Output Board) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-2101 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 1.57 lbs (0.71 kg) |
| Dimensions | Standard IPC 620 rack slot form factor |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Standard backplane power allocation |
| Output Voltage | 115 VAC |
| Point Count | 6 points |
| Isolation | Channel-to-channel isolated |
Channel-to-Channel Isolation & Process Control Integration
The output card incorporates individual galvanic isolation barriers for each of its 6 AC output channels. This channel-to-channel isolation architecture prevents ground loop formation and cross-channel electrical interference between independent 115 VAC field load circuits. Filtering networks integrated within each output path absorb inductive voltage spikes during inductive load de-energization, shielding adjacent 4-20 mA HART loop wiring and sensitive backplane logic from transient electromagnetic noise.
Frequently Asked Questions
Q: Does the 621-2101 output board allow hot-swapping under live load conditions?
A: No, field power to the terminal strip and backplane rack power must be isolated prior to removing or inserting the board to prevent contact arcing and logic backplane disruption.
Q: Are all 6 channels connected to a shared power bus?
A: No, each channel is fully isolated from adjacent points, allowing independent 115 VAC power feeds to be wired across separate output channels on the same board.
Q: What protective measures prevent back-EMF damage when driving inductive field loads?
A: Internal snubber networks across each channel suppress voltage transients generated by relays, solenoids, or motor starters during switching operations.
Field Installation Guidelines
- De-energize the rack backplane and isolate all 115 VAC field power sources connected to the output terminal block.
- Align the module card edges with the designated IPC 620 rack slot guides and slide the unit inward until backplane connectors lock completely.
- Tighten the top and bottom captive retaining screws to ensure solid chassis grounding and mechanical retention.
- Route 115 VAC output conductors away from low-level DC signal lines and analog instrument cables within the wireway.
- Apply system power and verify channel status LED illumination when forced output commands are executed by the controller.
