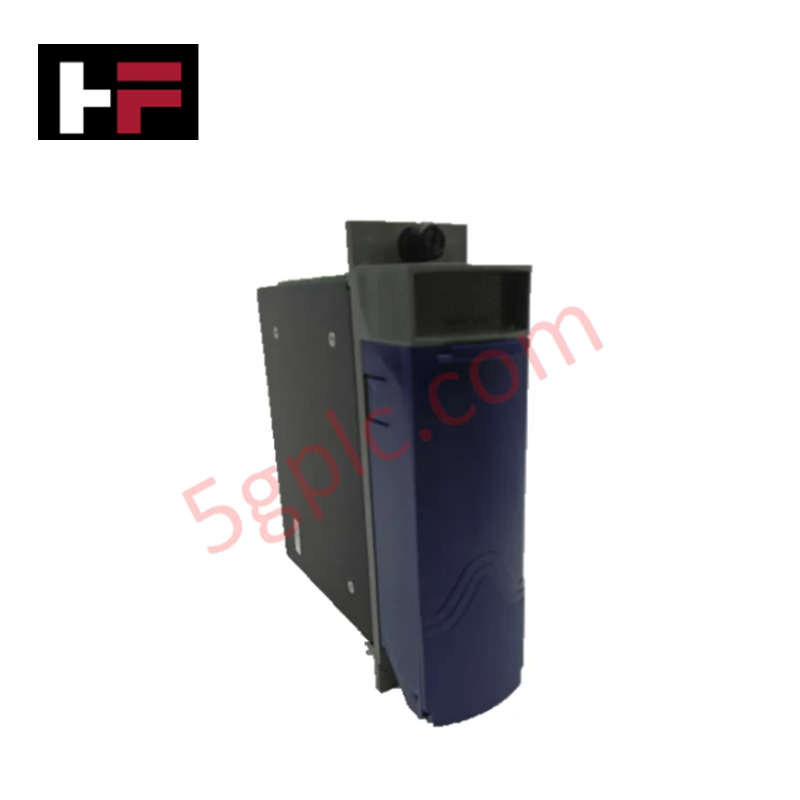

396352-03-0 Emerson ControlWave Digital Input Module

The Emerson 396352-03-0, also cataloged as the 396352-03-0 Digital Input Module, operates as a dedicated hardware component for discrete state signal processing and 4-20 mA current loop monitoring within ControlWave PLC platforms. The hardware accepts 8 independent input channels via integrated local screw terminals, interfacing field contact transitions and current loop signals directly to the local controller bus.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

The module architecture incorporates galvanic channel-to-channel isolation to prevent potential field ground loop variations from disturbing internal signal processing. When operating alongside 4-20 mA HART loop protocol instruments on the shared system backplane, internal filtering circuits isolate input sampling paths from high-frequency carrier noise. Integrated cold junction compensation and precision resistor networks retain signal linearity and timing accuracy across operating cabinet temperature shifts.

Frequently Asked Questions

Q: Can the 396352-03-0 module be hot-swapped while the ControlWave backplane is energized?

A: No. Power to the rack base and associated field wiring terminal blocks must be isolated before removing or inserting the module to prevent electrical arcing and backplane communication faults.

Q: How are field wiring shields terminated on the local terminal block assembly?

A: Field wiring shields must bypass signal pins and connect to a single-point enclosure ground bar to preserve opto-isolated noise rejection boundaries.

Q: What indicates an out-of-range or open-circuit input condition on the card?

A: Internal diagnostics evaluate line currents; values falling below defined threshold limits generate a channel fault bit on the backplane bus and light the corresponding channel status indicator.

Field Installation Guidelines

1. De-energize system backplane bus power and external field loop supplies prior to module insertion.
2. Align the circuit board edges with the designated ControlWave rack housing slot guides.
3. Slide the module into the slot until the rear backplane connectors are fully engaged and lock the retaining latches.
4. Wire field conductors directly to the 8-point local terminal screw block according to assigned channel polarity.
5. Terminate all cable drain shields at a single system ground bar outside the terminal block to maintain channel-to-channel isolation.
6. Reapply rack power and verify that the module status LED illuminates green, confirming successful backplane initialization.
