Product Details

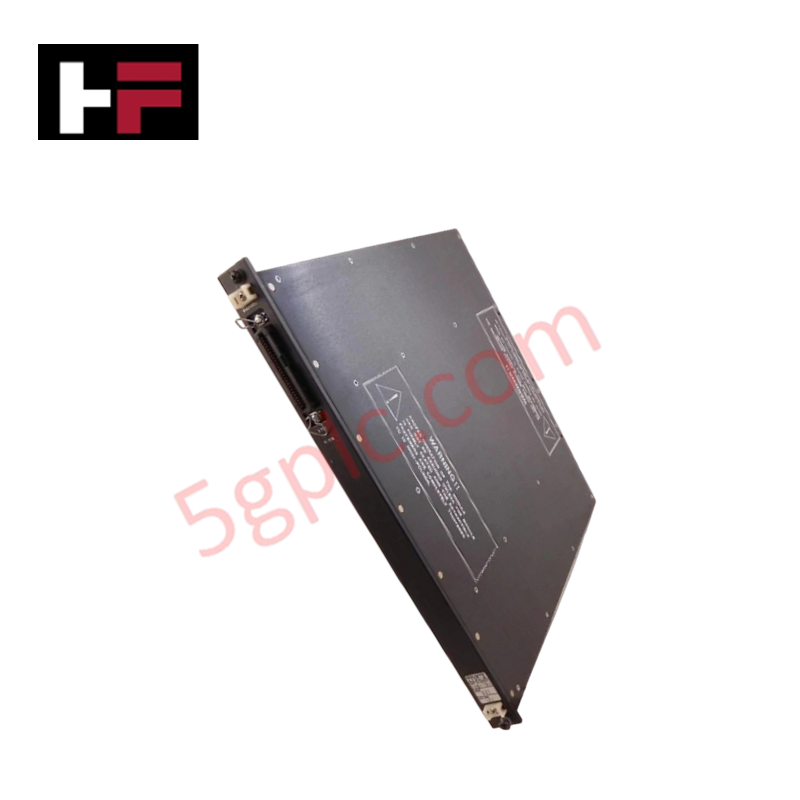

The Triconex 30008 V10.3 is a high-performance main processor module designed for Triconex safety instrumented systems. Powered by a 32-bit Motorola MPC860 processor running at 50 MHz, it executes control logic and handles system-wide fault tolerance within Triple Modular Redundant (TMR) architectures.
Memory Architecture and Internal Real-Time Clock
The module features a multi-tiered memory structure comprising 16 MB DRAM (without battery backup), 32 KB battery-backed SRAM, and 6 MB Flash PROM for program storage. It integrates an internal TriClock real-time clock powered by a battery backup, providing precise timekeeping with a typical daily drift of ±2 seconds (maximum ±2.16 seconds per day).
Communication and Bus Architecture
Inter-module logic processing and voting across channels are executed via the proprietary TriBus system, which operates at 25 megabits per second with 32-bit CRC protection and 32-bit DMA over fully isolated pathways. A separate 32-bit Motorola MPC860 processor dedicated to communications handles network tasks, supplemented by an optically isolated RS-232 serial port (DB25 connector) with 500 VDC isolation for diagnostic analysis.
| Parameter | Specification |
|---|---|
| Model | 3008 V10.3 |
| Brand | Triconex |
| Product Type | Main Processor Modules |
| Main Processor | Motorola MPC860, 32-bit, 50 MHz |
| Communication Processor | Motorola MPC860, 32-bit, 50 MHz |
| DRAM | 16 MB (without battery backup) |
| SRAM | 32 KB (battery-backed) |
| Flash PROM | 6 MB |
| TriClock Drift | Typical ±2 sec/day, Max ±2.16 sec/day |
| TriBus Interface | 25 Mbit/s, 32-bit CRC, 32-bit DMA, isolated |
| Serial Interface | Optically isolated RS-232 (25-pin connector) |
| Serial Isolation | 500 VDC |
| Shipping Weight | 3 kg |
Frequently Asked Questions
Q: What are the memory capacities integrated into the Triconex 3008 V10.3 main processor module?
A: The module contains 16 MB DRAM, 32 KB battery-backed SRAM for data retainage, and 6 MB Flash PROM for system firmware and logic storage.
Q: How does the TriBus interface ensure data integrity on the Triconex 3008 V10.3?
A: TriBus operates at 25 Mbit/s across fully isolated channels, utilizing 32-bit DMA and 32-bit CRC protection for high-speed inter-processor communication.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
Tech & Buying Guide
Understanding Root Causes of Unplanned PLC Stop Mode in Industrial Automation
Modern Programmable Logic Controllers manage execution through distinct operational states: Run, Stop, Start-Up, and Hold. During power-up, a controller initializes memory registers within Stop mode before briefly transitioning to Start-Up mode. During this phase, internal self-diagnostics evaluate system integrity across hardware and user programs. If the controller detects no critical faults, it enters Run mode to execute the control program continuously. However, any severe system anomaly forces the CPU back into Stop mode immediately to prevent erratic machine behavior across the plant floor.
