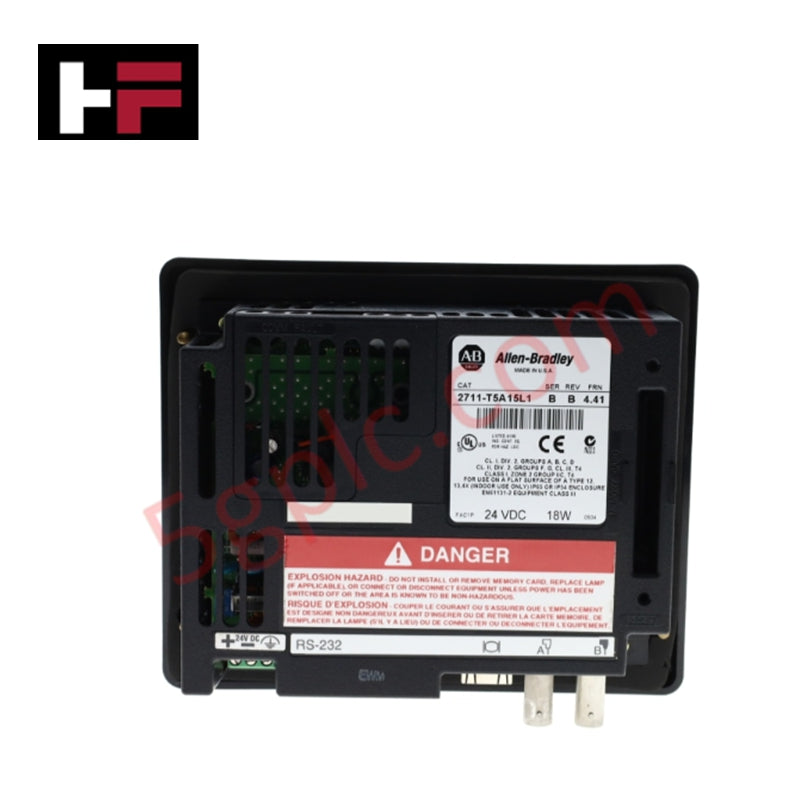

The Allen-Bradley 2711-T5A15L1 PanelView 550 is a robust and reliable standard operator terminal designed for industrial automation systems. It features a monochrome LCD display, user-friendly touch interface, and a compact design to optimize control in a wide range of automation processes.
Key Specifications:
-
Model: 2711-T5A15L1
-
Part Number: 2711-T5A15L1
-
Category: HMI Terminal
-
Product Line: PanelView 550
-
Weight: 2.31 lbs (1.05 kg)
-
Display: Monochrome LCD, Blue Mode
-
Display Size: 5.5 inches
-
Resolution: 256 x 128 pixels
-
Touchscreen: Resistive touch with 128 cells, 1 million actuation presses
-
Backlight: 100,000-hour LED backlight life
-
Display Area: 120 x 60 mm (4.75 x 2.38 in.)
-
Memory: 170 KB application runtime; 240 KB nonvolatile RAM for application objects, text, and bitmaps
-
Communication Ports: ControlNet and RS-232 (printer)
-
Input Power: 24V DC (Nominal Input)
-
Input Voltage Range: 18–32V DC
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
-
Enclosure: NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
-
Installed Depth: 64 mm (2.54 in.) – 188 mm (7.40 in. with memory card retainer and clearance)
-
Heat Dissipation: 20 W (69 BTU/HR)
-
Product Family: PanelView Standard Terminals
Applications
The 2711-T5A15L1 is ideal for use in small- to medium-scale industrial applications where visual data display and control are critical. It is widely used in manufacturing, machine monitoring, and control processes, offering intuitive interaction through its monochrome display and touchscreen.
FAQ
Q: What is the resolution of the display?
A: The 2711-T5A15L1 has a resolution of 256 x 128 pixels, providing clear visuals for monitoring and control applications.
Q: What type of communication does this terminal support?
A: The terminal supports ControlNet communication and has an RS-232 printer port for flexibility in data transfer.
Q: Can I use this terminal in outdoor environments?
A: This model is designed for indoor use only and has an IP54 and IP65 rating, offering resistance to dust and water ingress.
