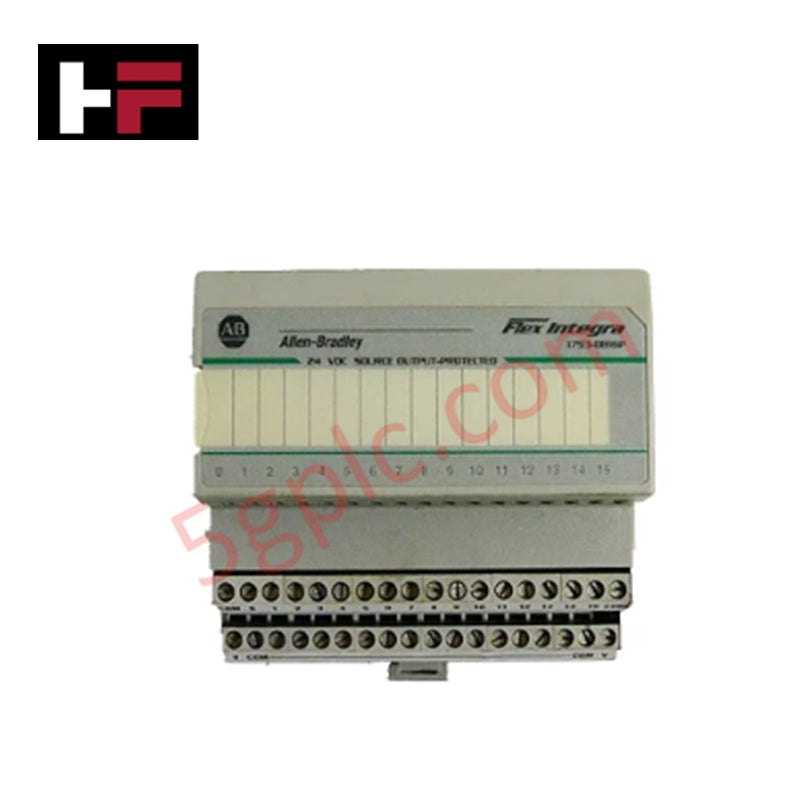

1793-0B16P | Allen-Bradley FLEX Integra 16-Channel Protected Output Module

Overview

The Allen-Bradley 1793-0B16P is a 16-channel digital output module with protected sourcing outputs. Designed for FLEX Integra systems, it provides reliable and fast switching for industrial loads while safeguarding outputs against overloads and short circuits. The module is DIN-rail mountable and suitable for high-density digital control applications.

Technical Specifications

• Manufacturer: Allen-Bradley

• Model & Part Number: 1793-0B16P

• Module Type: 16 digital output channels, sourcing, electronically protected

• Mounting: DIN rail

• Channels: 16 non-isolated

• On-State Voltage: 10 V DC minimum, 24 V DC nominal, 31.2 V DC maximum

• On-State Current: 1 mA minimum, 500 mA maximum per channel

• Surge Current: 1.5 A for 50 ms

• Off-State Leakage: 0.5 mA maximum

• On-State Voltage Drop: 0.5 V DC maximum

• Isolation Voltage: 850 V DC for 1 second

• Delay Time: Off to On 0.5 ms max, On to Off 1.0 ms max

• Flexbus Current: 80 mA maximum

• Power Dissipation: 5 W at 31.2 V DC

• Thermal Dissipation: 17 BTU/hr at 31.2 V DC

• Indicators: 16 yellow LEDs for channel status

• Fusing: Electronically protected outputs

• External DC Power: 19.2–31.2 V DC, 60 mA

• Dimensions: 2.72H × 3.7D × 2.17W inches (69H × 94D × 80W mm)

• Operating Temperature: 0 to +55°C (32 to +131°F)

• Storage Temperature: -40 to +85°C (-40 to +185°F)

• Relative Humidity: 5% to 95%, non-condensing

• Shock: Operating 30 g, Non-operating 50 g

• Vibration: 5 g @ 10–500 Hz (IEC68-2-6)

• Conductors: 12–18 gauge stranded wire

• Screw Terminal Torque: 5–7 lb-in (0.5–0.6 Nm)

• Weight: 0.2 kg

Features

• Electronically Protected Outputs: Prevents damage from overload or short-circuit conditions

• Fast Switching: Delay times under 1 ms ensure rapid response for high-speed applications

• Channel Status Indicators: 16 yellow LEDs for real-time monitoring

• DIN Rail Mounting: Simplifies installation in compact control panels

Applications

• Digital output control in FLEX Integra PLC systems

• Industrial loads requiring protected source outputs

• High-density digital control applications in manufacturing and process automation

FAQ

Q: How many channels does the 1793-0B16P support?
A: The module provides 16 digital output channels.

Q: What protection features are included?
A: Each output is electronically protected against overloads and short circuits.

Q: What is the maximum on-state current per channel?
A: 500 mA per channel.

Q: Can it be mounted on a DIN rail?
A: Yes, it is designed for standard DIN rail installation.
