Product Details
Overview

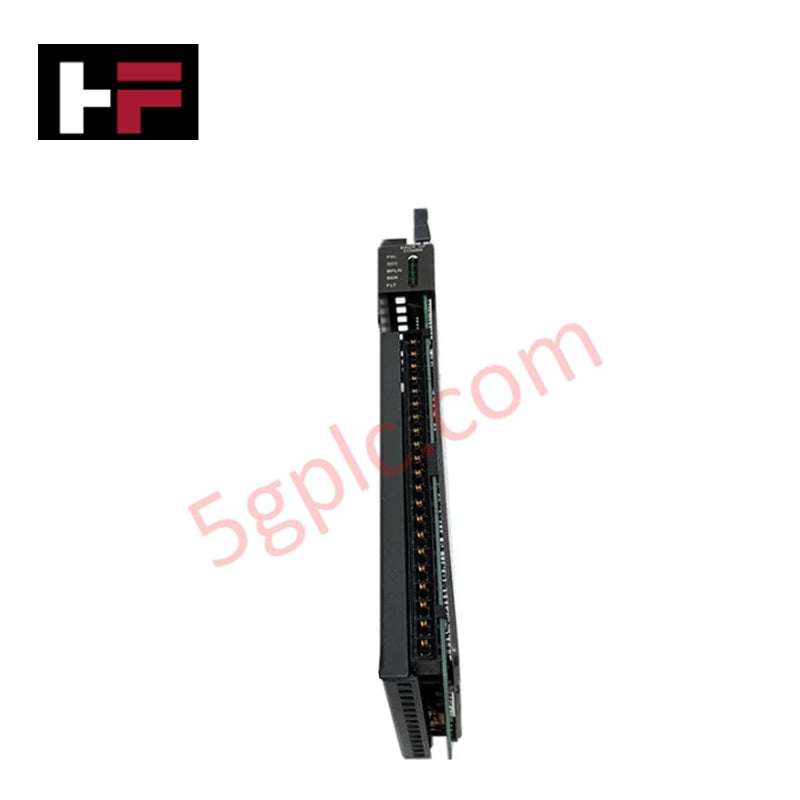

The 1785-KE by Allen-Bradley is a versatile communication interface module tailored for Data Highway Plus (DH+) networks. It provides industrial networking through a DH+ port and supports point-to-point connections via RS232-C. Designed for installation in a 1771 I/O chassis, it is compatible with multiple PLC families, including PLC-2, PLC-3, PLC-4, and PLC-5. This module is discontinued by Rockwell Automation as of December 31, 2012.
Technical Specifications
-
Manufacturer: Rockwell Automation
-
Brand: Allen-Bradley
-
Part Number: 1785-KE
-
Product Type: Data Highway Plus (DH+) Communication Interface Module
-
Module Type: Communication Interface
-
Mounting: 1771 I/O chassis
-
Compatible Controllers: PLC-2, PLC-3, PLC-4, PLC-5
-
Ports:
-
One DH+ port
-
One RS232-C interface
-
Transmission Speeds:
-
DH+: up to 57,600 bps
-
RS232-C: 110–19,200 bps
-
Communication Cable: 1770-CD for DH+
-
Max Modules per System: 4
Electrical Specifications
-
Power Supply: 1.2 A at 5VDC (backplane)
-
Required External Power: None
-
Operating Temperature: 0°C to 60°C
-
Storage Temperature: -40°C to 85°C
-
Relative Humidity: 5–95% (non-condensing)
Physical Specifications
-
Dimensions: 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm)
-
Weight: 1.81 lbs (0.82 kg)
-
Coating: Conformal coated for environmental protection
-
Wiring Arm: 1771-WN
Performance Features
-
Typical AC signal delay: 29 ± 8 ms
-
Typical DC signal delay: 30 ± 7 ms
-
LED indicators: One per channel for status and diagnostics
Applications
-
Industrial PLC networks requiring DH+ communication
-
Systems requiring RS232 point-to-point device connections
-
Factory automation and control panel integration
FAQ
Q: Is 1785-KE compatible with PLC-5 controllers?
A: Yes, it supports PLC-2 through PLC-5 controllers when installed in a 1771 chassis.
Q: What cabling is required for DH+ communication?
A: A 1770-CD communication cable is recommended.
Q: Can this module operate without external power?
A: Yes, it draws power directly from the backplane at 5VDC.
