Product Details
Overview

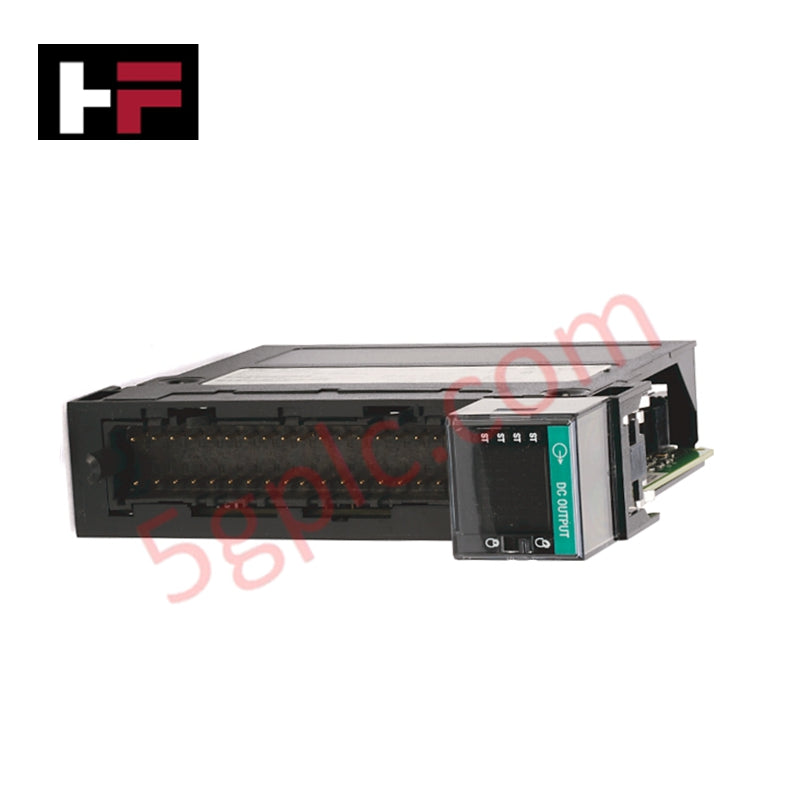

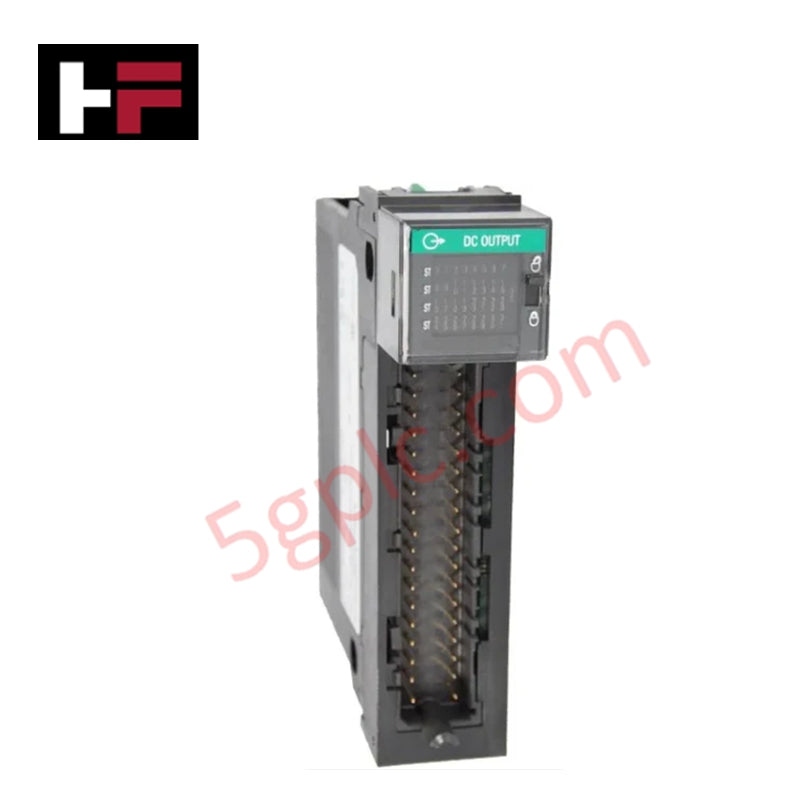

The Allen-Bradley 1756-OB32 is a 32-point DC output module for ControlLogix systems. It provides reliable switching of 12–24 V DC loads, supporting precise timing and current handling for demanding automation applications.
Technical Specifications
-
Manufacturer Allen-Bradley (Rockwell Automation)
-
Series ControlLogix
-
Model / Part Number 1756-OB32
-
Module Type DC Output Module
-
Number of Outputs 32 points
-
Output Voltage Range 10–31.2 V DC
-
Current per Point 0.5 A @ 50 °C, 0.35 A @ 60 °C (linear derating)
-
Total Module Current 16 A @ 50 °C, 10 A @ 60 °C
-
Output Delay Time OFF→ON: 60 µs nominal / 1 ms max, ON→OFF: 200 µs nominal / 1 ms max
-
Power Dissipation Maximum 4.8 W @ 60 °C
-
Backplane Current at 5 V 300 mA
-
Removable Terminal Blocks 1756-TBCH, 1756-TBS6H
-
Isolation Voltage 50 V continuous
-
Operating Temperature 0–60 °C (32–140 °F)
-
Mounting Chassis-based, any slot in ControlLogix system
Key Features
-
Supports 32-point DC output for flexible system control
-
High-speed switching with minimal ON/OFF delay
-
Linear derating protects outputs at elevated temperatures
-
Removable terminal blocks allow easy wiring and maintenance
-
Compatible with all ControlLogix chassis modules for seamless integration
Application Scenarios
The 1756-OB32 is ideal for:
-
Controlling actuators and discrete devices in manufacturing lines
-
Systems requiring precise DC output timing and load management
-
Integration into mid- to large-scale ControlLogix automation systems
Similar Models Comparison
-
1756-OB32 – 32-point DC output, 12/24 V DC, fast switching
-
1756-OB16 – 16-point DC output, lower channel density
-
1756-OB8 – 8-point DC output for compact applications
FAQs
Q: What is the maximum current per output point?
A: 0.5 A at 50 °C, derated to 0.35 A at 60 °C.
Q: Can the module be mounted in any slot?
A: Yes, compatible with any slot in a ControlLogix chassis.
Q: Which terminal blocks are supported?
A: Supports 1756-TBCH and 1756-TBS6H removable terminal blocks.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
