TSXP572634M Modicon Premium Unity Processor Module | Schneider Electric

Product Overview

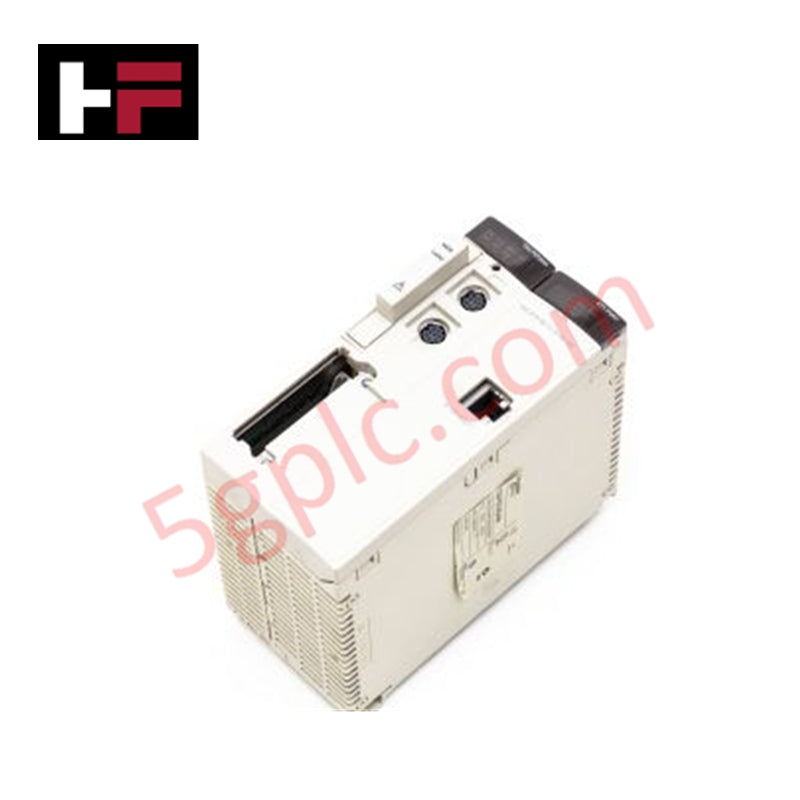

The Schneider Electric TSXP572634M serves as a high-tier Unity Processor within the Modicon Premium automation platform. This double-format module coordinates complex industrial logic, managing up to 1024 discrete I/O points and 80 analog channels. It integrates a native Ethernet TCP/IP port (10/100 Mbps) to facilitate seamless "Transparent Ready" communication across plant-wide networks. We supply this processor as 100% brand new, original equipment, offering a definitive solution for high-speed arithmetic and Boolean execution in advanced process control environments.

Technical Specifications

The TSXP572634M provides high-speed computational power and versatile memory allocation for large-scale application structures.

• Processor Type: Unity Processor (Double Format)

• Discrete I/O Capacity: 1024 I/O points

• Analogue I/O Capacity: 80 I/O channels

• Integrated Ports: 1 x Ethernet TCP/IP (RJ45), 2 x Female Mini-DIN RS485 (19.2 kbit/s)

• Internal RAM: 160 kB (Allocatable for program/data)

• PCMCIA Support: Expands memory up to 768 kB program / 16,384 kB additional data storage

• Execution Performance: 4.76 Kinst/ms (100% Boolean without PCMCIA card)

• Logic Tasks: 1 Master task, 1 Fast task, 64 Event tasks

• Current Consumption: 1650 mA at 5 V DC

• Net Weight: 0.042 kg (0.09 lb)

Engineering Advantages

• Deterministic Logic Execution: The processor executes 100% Boolean logic at rates up to 4.76 Kinst/ms. This rapid processing power enables precise control over high-speed packaging, assembly, and synchronized machinery, reducing cycle jitter significantly.

• Seamless Network Integration: The native RJ45 Ethernet port supports both 10BASE-T and 100BASE-TX. This allows the TSXP572634M to communicate directly with SCADA systems, HMI terminals, and other PLCs without requiring additional communication gateway modules.

• Sophisticated Loop Control: The CPU manages up to 10 process control channels, supporting as many as 30 simple control loops. This capability allows engineers to integrate PID regulation and thermal management directly into the main PLC logic.

• Expandable Data Architecture: By utilizing the PCMCIA slot, users can expand data storage to over 16 MB. This massive overhead solves the industrial pain point of high-density data logging and recipe management in large-scale food and beverage or pharmaceutical production.

• Efficient System Diagnostics: Integrated RS485 serial links and Ethernet status indicators provide immediate feedback. The Unity Pro software environment allows for real-time monitoring of unlocated internal data and function blocks (DFB/EFB), simplifying deep-level troubleshooting.

FAQs

• Can the TSXP572634M operate without a PCMCIA memory card?

  Yes. The processor includes 160 kB of internal RAM that stores both program and data. However, installing a PCMCIA card increases the program capacity to 768 kB and significantly expands data storage for larger applications.

• What software environment does this processor require?

  The TSXP572634M utilizes the Unity Pro software platform. Ensure your software version supports the Premium hardware catalog to take full advantage of the Ethernet and RS485 communication services.

• How does this module handle high-priority events?

  The processor supports 64 event tasks and 1 fast task. These tasks interrupt the master scan to process time-critical signals, ensuring the system responds instantly to safety triggers or high-speed encoder pulses.

• What is the condition of this hardware?

  We guarantee this TSXP572634M is 100% Brand New original Schneider Electric stock. It arrives in the original factory-sealed box with all technical documentation and serial number verification intact.
