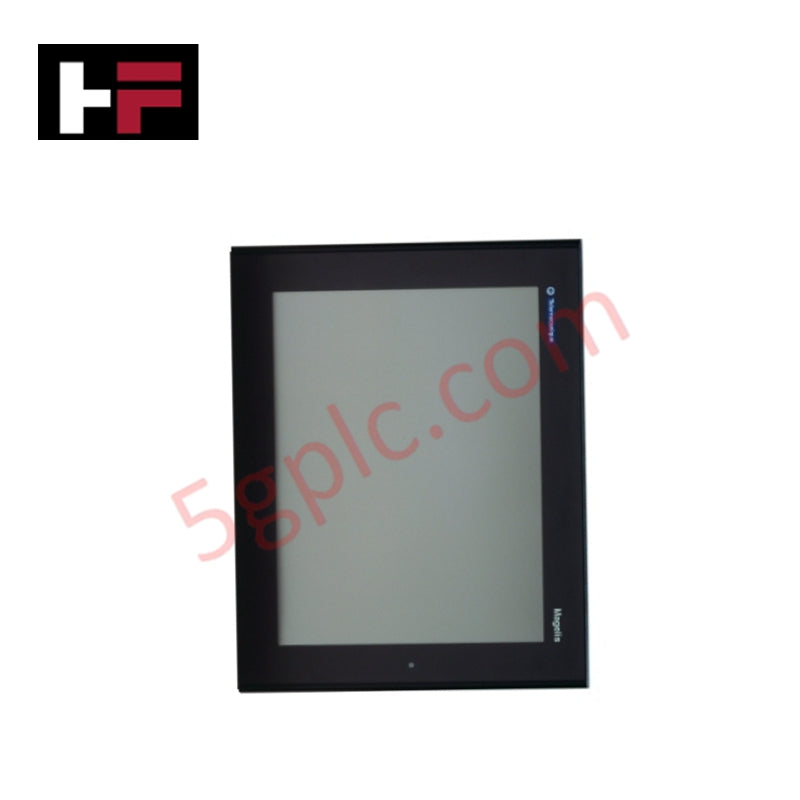

The XBTG5330 from Schneider Electric is a high-end touchscreen HMI panel in the Harmony XBTGT series, built for industrial control and monitoring. It delivers precise visual feedback, robust connectivity, and reliability in demanding production environments.
Display & Touch
-
Screen Size: 10.4 inches
-
Display Type: Backlit color TFT LCD
-
Resolution: 640 × 480 pixels (VGA) with 65,536 colors
-
Touch Technology: Analog resistive with 1024 × 1024 resolution for accurate input
-
Backlight Lifetime: Up to 54,000 hours
-
Brightness & Contrast: Adjustable via touch panel (8 levels each)
Performance & Memory
-
Processor: 266 MHz RISC CPU
-
Memory: 32 MB Flash EPROM, 512 KB SRAM with lithium battery backup
-
Data Storage: Supports 1 CompactFlash card (≥1 GB)
-
Fieldbus Compatibility: DeviceNet, Profibus DP through optional cards
Connectivity & Interfaces
-
Ethernet: 10/100BASE-TX (RJ45)
-
Serial Ports: COM1 (RS232C/RS422/RS485), COM2 (RS485, MPI-compatible)
-
USB: 2 × USB 2.0 Type A
-
Digital I/O: Screw terminal blocks for inputs, outputs, audio
Protection & Enclosure
-
Front Panel: IP65, NEMA 4X for harsh environments
-
Rear Panel: IP20
-
Operating Temperature: 0–50 °C
-
Storage Temperature: –20–60 °C
-
Humidity: 10–90% non-condensing
Mechanical Details
-
Mounting: Flush mount using 4 screw clamps or spring clips
-
Cutout Dimensions: 259 × 201 mm (+1/-0)
-
Physical Size: 270.5 × 212.5 × 57 mm
-
Weight: 2.5 kg
Key Features
-
Multilingual font support: Simplified/Traditional Chinese, Japanese, Korean
-
Compact Flash slot and fieldbus expansion for versatile industrial integration
-
Real-time clock for accurate timestamping and logging
-
Suitable for automation, process control, and machine monitoring
Application Notes
-
Ideal for HMI control of production lines, robotic systems, and factory automation
-
Can be integrated with PLCs, drives, and networked industrial equipment
Additional Information
