Product Details
Technical Product Overview

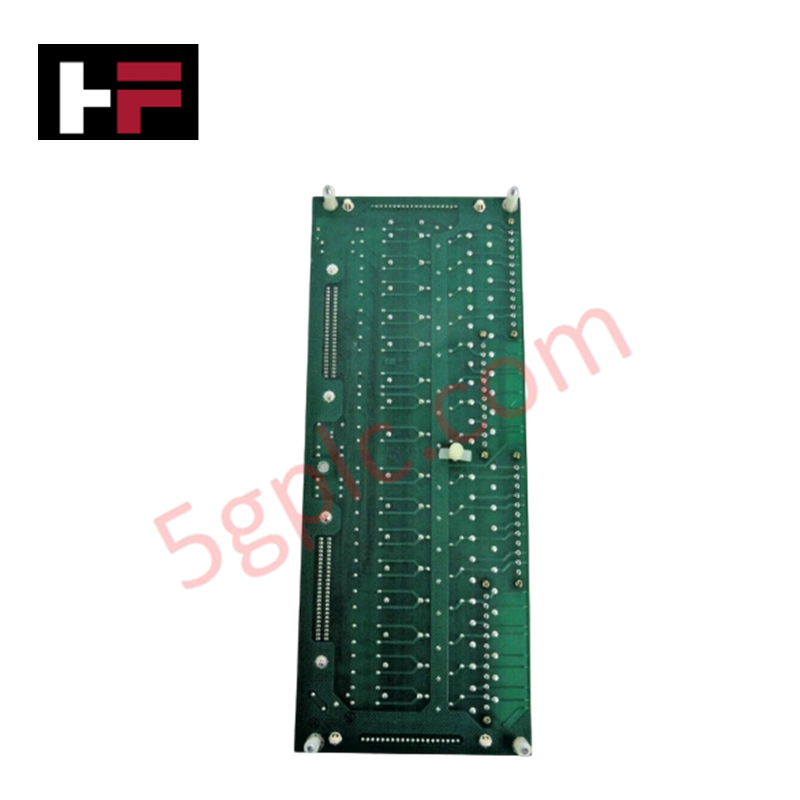

The MU-TSTX13 (51309142-125) is a specialized High-Level Analog Input (HLAI) Smart Transmitter Interface (STI) designed for the Honeywell TDC 3000 and Experion PKS control architectures. This Field Termination Assembly (FTA) is engineered to facilitate high-speed digital communication between smart field devices and the I/O processor while maintaining precise analog signal integrity.
As a Revision C E-6 hardware variant, the MU-TSTX13 (51309142-125) features reinforced screw-type terminals, providing a gas-tight mechanical connection for 4-20mA current loops. This interface is specifically optimized for "Smart" transmitters, allowing for secondary variables and diagnostic data to be passed through to the control system without interrupting the primary process variable.
Detailed Engineering Specifications
-
Interface Type: High-Level Analog Input (HLAI) / Smart Transmitter Interface (STI)
-
Termination Style: Heavy-duty screw terminals
-
Channel Capacity: 16-Channel high-density configuration
-
Signal Compatibility: 4-20mA DC (HART/Smart digital overlay compatible)
-
Hardware Revision: 51309142-125 Rev C E-6
-
Power Requirements: Powered via the I/O Link from the Process Manager (PM/APM/HPM)
-
Operating Voltage: 24 VDC nominal field power
-
Mounting: Compatible with standard Honeywell FTA mounting channels (e.g., MU-TMCN02)
-
Isolation: Optical and galvanic isolation between field circuitry and I/O Link
-
Protection: Integrated surge suppression and overcurrent protection per channel
System Integration and Compatibility
The MU-TSTX13 (51309142-125) is a critical component for plants migrating from traditional analog signaling to "Smart" instrumentation. The Revision C hardware includes optimized impedance matching for the STI protocol, ensuring that digital handshakes between the transmitter and the DCS are not degraded by long cable runs or electromagnetic interference.
Frequently Asked Questions
What is the benefit of the Screw-Type (TSTX) over Compression-Type terminals?
The MU-TSTX13 (51309142-125) screw terminals are often preferred in high-vibration environments or applications where field wiring uses larger gauge conductors, as they offer higher mechanical torque and pull-out resistance compared to spring-loaded compression alternatives.
Can this FTA be used with non-Smart (standard 4-20mA) transmitters?
Yes. While it is optimized for Smart Transmitter Interfaces, the MU-TSTX13 (51309142-125) is fully backward compatible with standard high-level analog signals.
