Overview

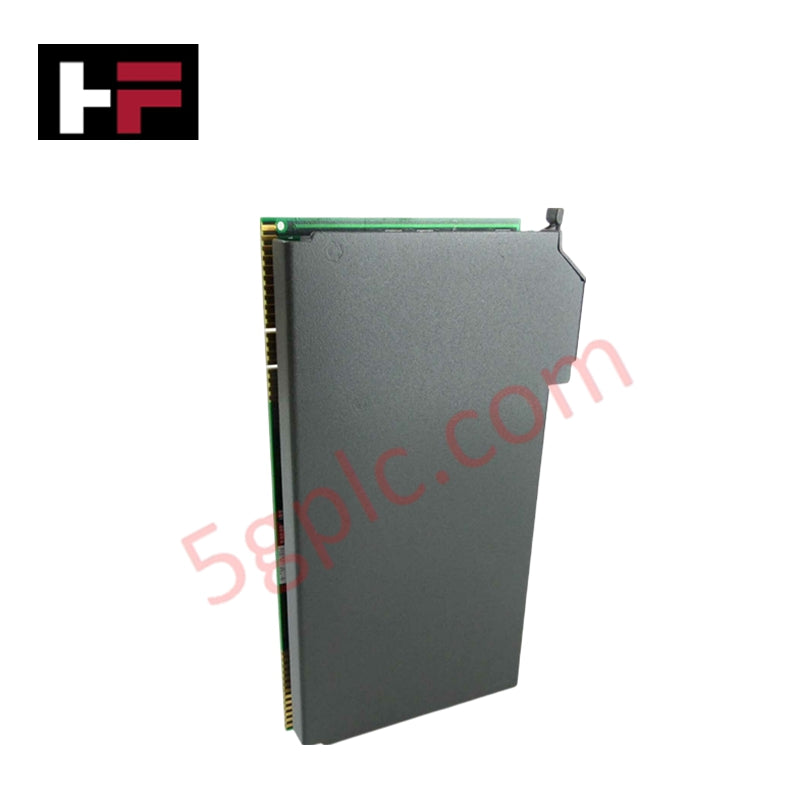

The Allen-Bradley 1771-IFM is a high-precision Fast Millivolt Input Module designed for the 1771 I/O chassis. It measures low-level differential signals with excellent accuracy, making it ideal for applications that require reliable millivolt-level readings. This module delivers stable and repeatable data transfer for critical industrial automation systems.
Technical Specifications
-
Model Number: 1771-IFM
-
Brand / Series: Allen-Bradley 1771 I/O
-
Module Type: Fast Millivolt Input Module
-
Number of Inputs: 8 differential low-level inputs
-
Input Voltage Range: 0–50 mV
-
Resolution: 12-bit binary
-
Accuracy: 0.1% of range at 25°C plus 1 LSB
-
Repeatability: ±1 LSB
-
Isolation Voltage: 1500V transient
-
Overvoltage Protection: 32V maximum
-
Input Impedance: 1 MΩ
-
Maximum Input Voltage: +10V
-
Common Mode Rejection: 100 dB DC to 60 Hz
-
Backplane Current: 0.75 A @ +5V
-
Output Type: BCD or unscaled binary (0000–4095 for BCD, 32767 for binary)
-
Module Location: Fits 1771 I/O chassis, 1 slot
Key Features
-
High-Precision Measurement: Ideal for low-level differential signal detection.
-
Reliable Data Output: Configurable BCD or binary output ensures seamless processor integration.
-
Robust Protection: Overvoltage and isolation protection safeguard both module and system.
-
Compact Installation: Single-slot design saves space in standard 1771 I/O chassis.
-
Industrial Durability: Built for long-term performance in harsh factory environments.
Applications
The 1771-IFM module is suitable for:
-
Measuring precise sensor signals in process control
-
High-accuracy millivolt data acquisition
-
Temperature and strain gauge measurement systems
-
SCADA and machine monitoring networks
-
Industrial laboratory instrumentation
Similar Models
-
1771-IFM2 – Extended input range and higher channel count for large-scale applications.
-
1771-IFM – Standard 8-channel fast millivolt input module for precise differential measurements.
-
1771-IFC – Isolated current input module for analog signal acquisition.
FAQ
Q: How many input channels does the 1771-IFM provide?
A: It has 8 differential millivolt input channels.
Q: Can it handle voltages higher than 50 mV?
A: Inputs above 50 mV can be applied up to +10V for protection, but optimal accuracy is within 0–50 mV.
Q: What output formats are supported?
A: BCD or unscaled binary, depending on processor configuration.
Q: Is this module compatible with the 1771 I/O chassis?
A: Yes, it occupies one slot in a standard 1771 I/O chassis.
