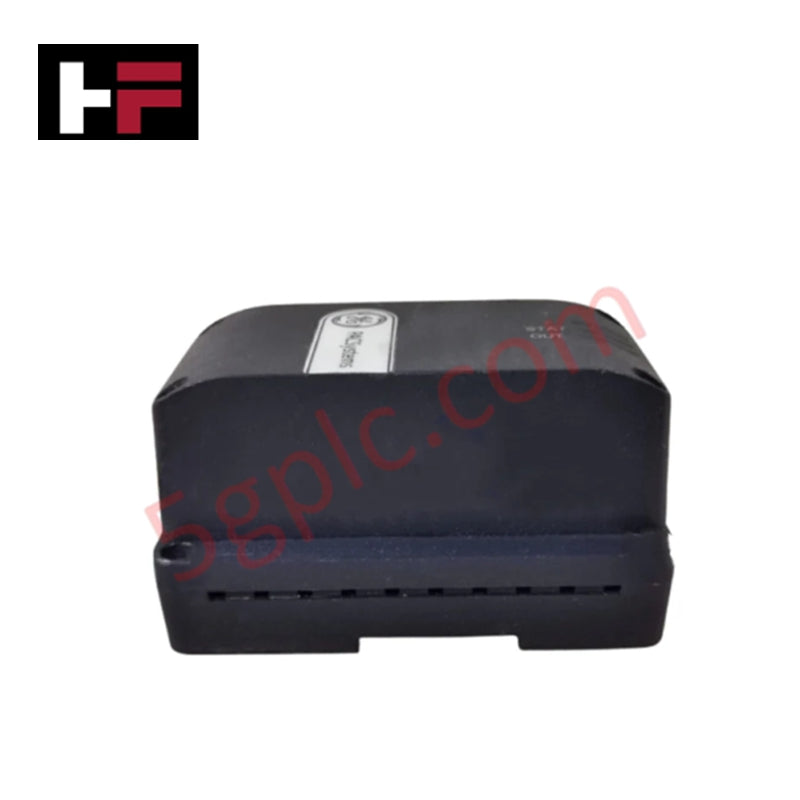

GE Fanuc IC695ACC402 PACSystems RX3i Energy Pack Module

Overview

The GE Fanuc IC695ACC402 is an Energy Pack Module designed for the PACSystems RX3i control platform. It provides critical energy storage and backup power for the CPE330 CPU, ensuring that vital data and system states are safely preserved during unexpected power interruptions.

This compact and reliable energy pack is engineered to work directly with the RX3i backplane and is equipped with integrated LED diagnostics, intelligent power management, and a long-life capacitor system that guarantees consistent backup performance.

Technical Specifications

• Manufacturer: GE Fanuc / Emerson

• Product Line: PACSystems RX3i

• Model Number: IC695ACC402

• Product Type: CPU Energy Pack

• Compatible Controller: RX3i CPE330 CPU

• Mounting Type: DIN Rail or Panel Mount

• Power Source: PLC Backplane

• Voltage Rating: 18–30 VDC

• Input Voltage Range: 20–30 VDC

• Maximum Input Power: 36 W + connected device power

• Output Voltage Range: 18–30 VDC

• Maximum Output Power: 45 W

• Maximum Output Current: 2.25 A

• Backup Trip Voltage: 19 VDC ±4%

• LED Indicators: IN, STAT, OUT (status and fault monitoring)

• Dedicated Cable: IC695CBL002 (included, 1 m / 36 in length)

• Ground Strap: Included

• Replacement Capacitor Module: IC695ACC412

• Expected Service Life: 5 years (capacitor pack)

• Base Module: Included

Environmental Specifications

• Operating Temperature: -25°C to +60°C (-13°F to +140°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Relative Humidity: Up to 95%, non-condensing

• Weight: 1.00 lb (0.45 kg)

Key Features

• Data Protection During Power Loss: Provides stored energy to maintain CPU and memory functions during short-term power outages.

• Optimized for RX3i Systems: Fully compatible with the CPE330 controller, supporting reliable operation in PACSystems architectures.

• LED Status Indicators: Offers visual monitoring of module input, output, and status conditions for simplified diagnostics.

• Integrated Power Management: Regulates energy flow automatically to optimize performance and capacitor life.

• Compact, Durable Design: Built for industrial environments with robust housing and convenient mounting flexibility.

• Extended Service Life: Long-lasting capacitor design rated for up to five years of continuous operation.

Applications

• Industrial process control systems

• Manufacturing and automation environments

• Critical data retention for PLC systems

• Machine control and motion systems using RX3i CPUs

• Power-loss protection in distributed control networks

FAQ

Q: What is the primary function of the IC695ACC402?
A: It provides energy storage and backup for RX3i CPUs, ensuring that program data is retained during power failures.

Q: Which controllers are supported?
A: It is specifically designed for the RX3i CPE330 controller within the PACSystems family.

Q: How long is the expected life of the capacitor pack?
A: The capacitor pack has an estimated service life of five years under normal operating conditions.

Q: Can it be mounted directly on a DIN rail?
A: Yes, it supports both DIN rail and panel mounting configurations.

Q: What cable is required for connection?
A: The module uses the IC695CBL002 dedicated cable (included).
