Overview

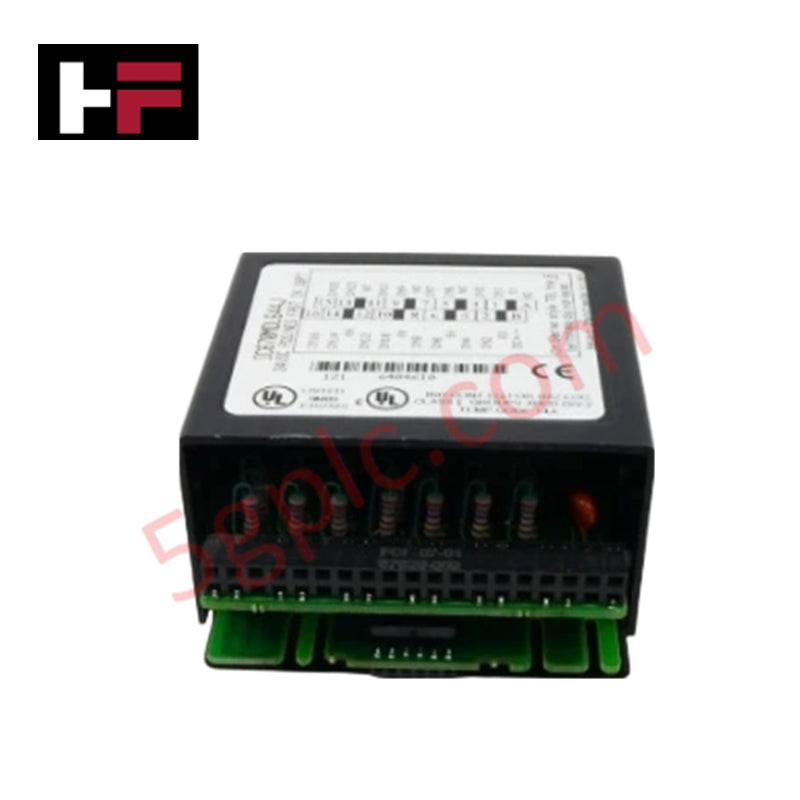

The IC670MDL644J by GE Fanuc is a 16-point DC logic input module engineered for GE’s Field Control systems. It supports both positive and negative logic configurations, making it highly adaptable for diverse control applications. Designed for dependable 24 VDC signal monitoring, this module provides accurate input detection and status indication through per-channel LEDs, ensuring operational transparency and ease of troubleshooting.
Technical Specifications
-
Model Number: IC670MDL644J
-
Manufacturer: GE Fanuc
-
Series: Field Control
-
Type: DC Logic Input Module
-
Number of Inputs: 16 points
-
Rated Voltage: 24 V DC
-
Input Voltage Range: 0 – 30 V DC
-
Input Current: 8 mA at 24 V DC
-
Input Impedance: 3 kΩ (typical)
-
Power Consumption: 80 mA from power supply
-
Logic Isolation: 250 V AC between user input and logic
-
Point-to-Point Isolation: None
-
Indicators: One LED per input + Power status LED
-
Operating Temperature: 0 °C to 60 °C
-
Weight: Approx. 0.91 kg (2 lbs)
Key Features
-
16 independent input channels with LED indication for real-time status monitoring
-
Supports both sourcing and sinking (positive/negative) DC input logic
-
Compact Field Control form factor for space-efficient installations
-
250 V AC input-to-logic isolation enhances signal reliability
-
Compatible with GE Fanuc Field Control I/O networks
Applications
The IC670MDL644J is ideal for use in:
-
Distributed Field Control systems
-
Machine automation and manufacturing lines
-
Material handling and motion control equipment
-
Process monitoring and PLC-based industrial systems
FAQ
Q: Does IC670MDL644J support both sourcing and sinking inputs?
A: Yes, it is designed to operate with both positive and negative DC input logic types.
Q: What voltage range can this module accept?
A: It can handle input voltages from 0 V DC to 30 V DC.
Q: How is module status indicated?
A: Each input channel includes a dedicated LED indicator plus a power LED for overall module status.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
