Product Details

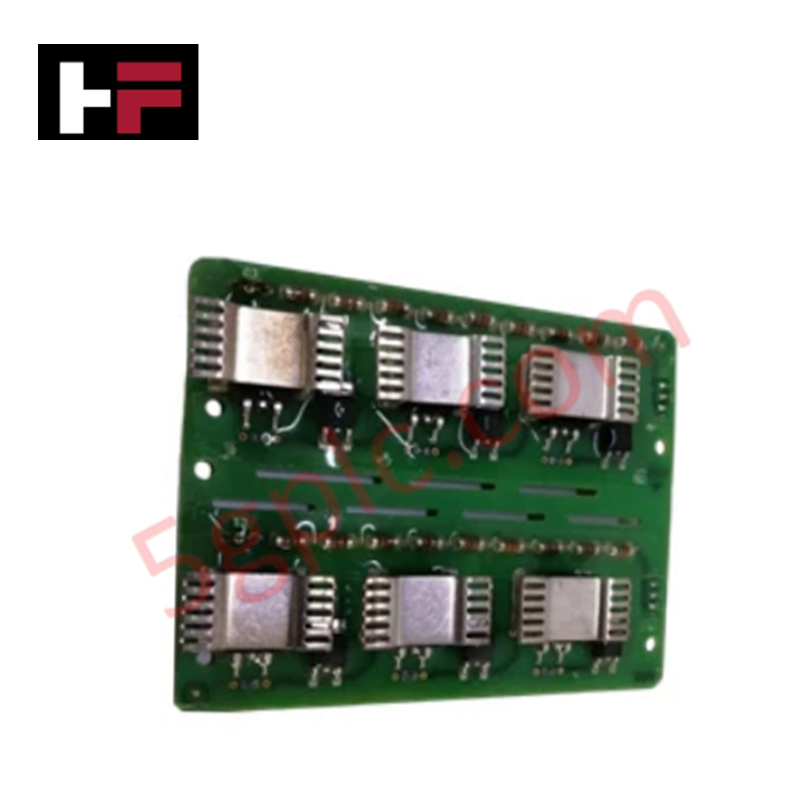

Configured for motion regulation in industrial control networks, the ABB HAC807A201 (3BHE028767R0201 Control Drive Module) provides direct physical signal execution and real-time process monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | HAC807A201 |
| Brand | ABB |
| Part Number | 3BHE028767R0201 |
| Weight | 0.2 kg |
| Dimensions | 110 mm x 60 mm x 23 mm |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | 20 W |
| Input Voltage | 24 V DC |
| Protection Class | IP67 |
Profinet / EtherNet/IP deterministic networks
The HAC807A201 utilizes a deterministic backplane bus communication velocity architecture to synchronize control tasks with host processing units. This ensures low-latency execution of motion commands and feedback loops. Firmware flash compatibility is governed by the specific revision of the control platform; users must verify that the system firmware supports the module's register map to avoid communication bus conflicts. The module includes internal self-diagnostic routines that monitor bus signal integrity and output status. If network jitter exceeds threshold limits, the module initiates a hardware-level trap to protect downstream actuators.
Frequently Asked Questions
Q: Does this module support hot-swapping during active drive operation?
A: No. Any hardware removal or insertion must be performed while the system power is completely disconnected to prevent electrical damage to the backplane communication bus and internal logic components.
Q: Is the module firmware field-upgradable?
A: Yes, firmware updates are supported via the host controller interface. Ensure the controller is in a maintenance state before initiating the flash process to prevent data corruption.
Field Installation Guidelines
- Mounting: Given the IP67 protection rating, ensure the module is mounted using the designated enclosure points. Verify that the sealing gasket is clean and free of debris to maintain environmental integrity.
- Grounding: The module chassis must be connected to the cabinet common ground to ensure EMC compliance. Use a low-impedance conductor to minimize noise coupling from high-power drive stages.
- Cable Integrity: Use shielded twisted-pair cabling for all signal connections. Ensure the shield is terminated at the cabinet entry point to suppress electromagnetic interference (EMI).
- Thermal Management: While the unit is designed for a broad temperature range (-20 deg C to +70 deg C), avoid installation near concentrated heat sources that exceed the upper limit to prevent degradation of internal components.
- Wiring Verification: Before applying 24 V DC power, perform a continuity test on input wiring to confirm the absence of short circuits to the chassis.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
