Product Details
Overview

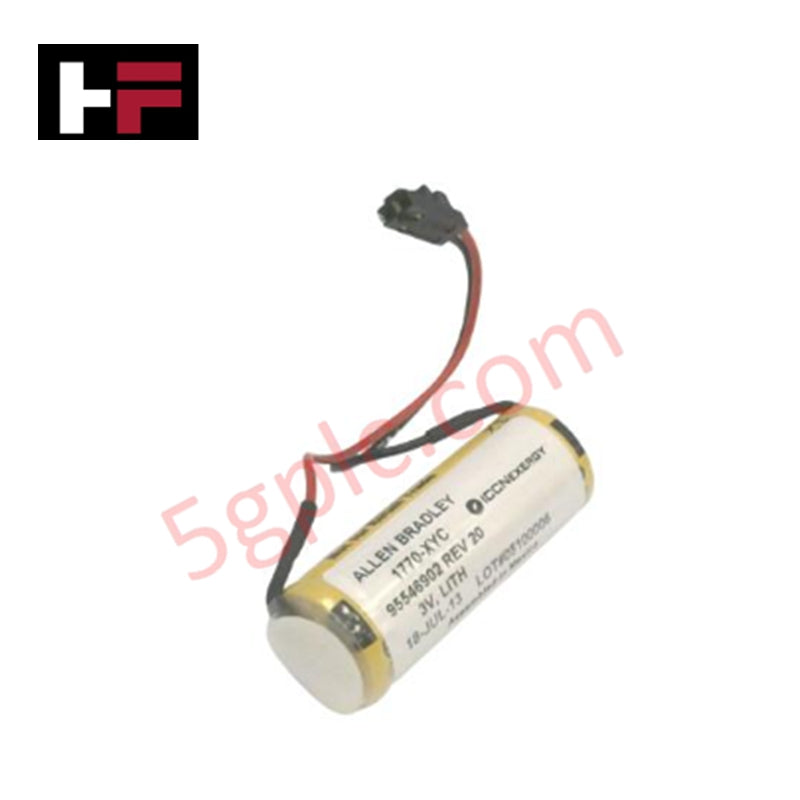

The Allen-Bradley 1770-XYC is a Lithium Backup Battery Module specifically engineered for PLC-5 processors. It ensures uninterrupted memory retention and reliable data preservation in the event of power loss. This compact, long-life battery is essential for maintaining program integrity and system uptime in critical industrial automation environments.
Designed and manufactured by Allen-Bradley (Rockwell Automation), the 1770-XYC provides dependable backup power performance in both stand-alone and integrated PLC-5 control systems.
Technical Specifications
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Product Line: PLC-5 Series
-
Part Number: 1770-XYC
-
Product Type: Lithium Backup Battery
-
Module Category: Power and Memory Retention Module
-
Weight: 0.13 lbs (0.06 kg)
-
Nominal Voltage Range: 120V AC or 220/240V AC
-
Input Voltage Range: 105–225V AC or 205–250V AC
-
Maximum Input Power: 20 W (real power)
-
Apparent Power Rating: 37 VA
-
Transformer Load: 50 VA maximum
-
User Output Current:
-
300 mA @ 5V DC
-
150 mA @ ±15V DC
-
Frequency Range: 50–440 Hz
-
Fuse Rating: Not applicable
-
Cabling: None required (stand-alone unit)
-
Parallel Operation: Not supported
-
Installation Location: Stand-alone, near processor unit
Key Features
-
Dedicated Backup Power: Provides uninterrupted memory retention for PLC-5 controllers.
-
Compact and Lightweight: Weighing only 0.06 kg, it installs easily in confined control panels.
-
Wide Voltage Compatibility: Operates across dual AC input ranges for flexible system integration.
-
Low Maintenance: Long-life lithium chemistry minimizes replacement frequency.
-
Stable Power Delivery: Ensures data integrity during power outages or system transitions.
-
Rugged Reliability: Built to perform in demanding industrial environments.
Applications
-
PLC-5 Processor Backup: Ideal for memory retention in PLC-5 automation systems.
-
Industrial Control Systems: Used in continuous operation environments such as manufacturing, process control, and energy systems.
-
Retrofit and Maintenance: Suitable for replacing existing or end-of-life PLC-5 batteries.
FAQ
Q: What is the primary function of the 1770-XYC?
A: It maintains PLC memory and system configuration data during power loss, preventing program corruption.
Q: Is this battery compatible with other Allen-Bradley series?
A: It is primarily designed for PLC-5 controllers but may support compatible legacy systems; always verify before installation.
Q: Does it require external wiring or cabling?
A: No, it is a stand-alone unit that connects directly to the designated PLC-5 interface.
