Product Details
Overview

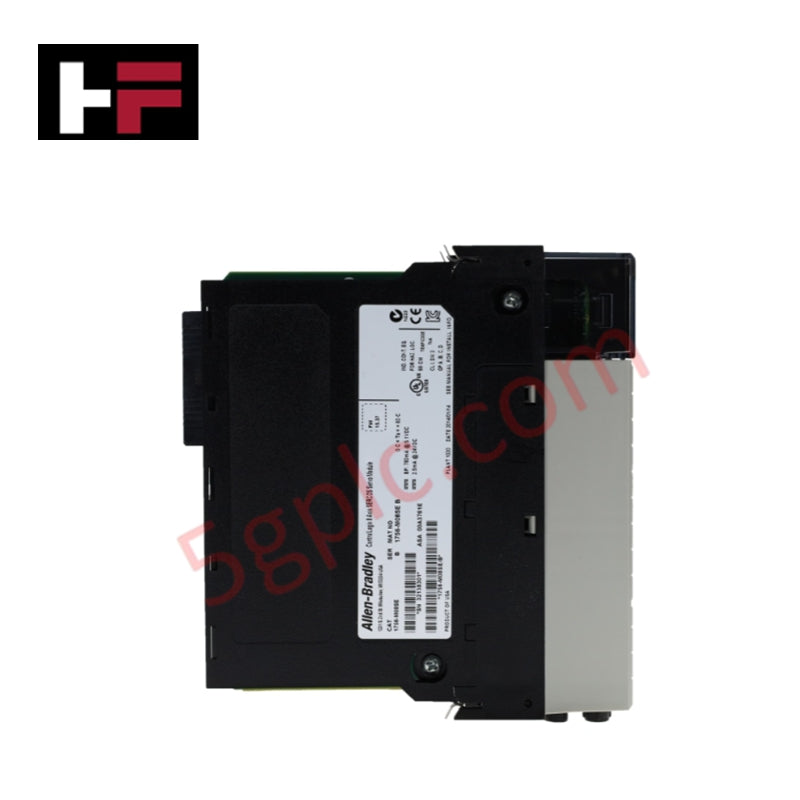

The Allen-Bradley 1756-M08SE is an 8-Axis SERCOS Motion Control Module engineered for the ControlLogix platform, providing high-speed, fiber-optic-based motion communication for advanced multi-axis servo applications. This module is designed to control up to eight drives through the SERCOS interface, enabling precise synchronization and dynamic motion control across complex automation systems.
It seamlessly integrates with Allen-Bradley Kinetix® and Ultra™ 3000 servo drive families, offering flexible scalability and reliable communication performance ideal for industrial motion applications.
Technical Specifications
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Product Series: ControlLogix (Bulletin 1756 / 1757)
-
Model Number: 1756-M08SE
-
Product Type: SERCOS Motion Control Module
-
Motion Control Capability: 8-axis servo coordination
-
Supported Drives:
-
Kinetix® 2000
-
Kinetix 6000 / 6200 / 6000M
-
Kinetix 7000
-
Ultra™ 3000 SERCOS Servo Drives
-
Communication Interface: SERCOS (fiber optic)
-
Maximum Drive Connections: 8 active channels (supports up to 16 drives via daisy-chain)
-
Component Category: PLC and I/O Motion Module
-
Function: Multi-axis servo coordination and synchronization
Environmental Specifications
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
-
Relative Humidity: Up to 95%, non-condensing
-
Vibration Resistance:
-
Acceleration: 2 m/s²
-
Frequency Range: Up to 500 Hz
-
Cooling Method: Natural convection (no active cooling required)
Key Features
-
High-Speed Fiber Communication: SERCOS optical interface ensures fast, interference-free data exchange between controller and drives.
-
Multi-Axis Precision: Supports coordinated motion control across eight independent axes.
-
Plug-and-Play Compatibility: Fully compatible with ControlLogix chassis and motion-enabled Logix processors.
-
Integrated Diagnostics: Real-time monitoring for fiber link integrity, synchronization status, and servo health.
-
Flexible Drive Integration: Works with multiple Kinetix® and Ultra™ drive families for wide application coverage.
-
Compact, Modular Design: Fits seamlessly into ControlLogix rack systems with minimal footprint.
Applications
-
Robotics and multi-axis machinery control
-
Packaging, labeling, and palletizing systems
-
Printing and converting equipment
-
Assembly and pick-and-place automation
-
Motion synchronization in process industries
-
High-speed machine tools and CNC retrofits
FAQ
Q: Which drives can the 1756-M08SE connect to?
A: It supports Kinetix 2000, 6000, 6200, 6000M, 7000, and Ultra 3000 SERCOS servo drives.
Q: How many axes can be controlled simultaneously?
A: The module controls up to eight axes in real time.
Q: Does it require a dedicated processor?
A: Yes, it is designed for use with ControlLogix motion-enabled controllers that support SERCOS interface modules.
Q: Can I use this module for high-speed applications?
A: Absolutely — the optical SERCOS interface provides high-bandwidth, deterministic motion communication suitable for demanding applications.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
