Product Details
Overview

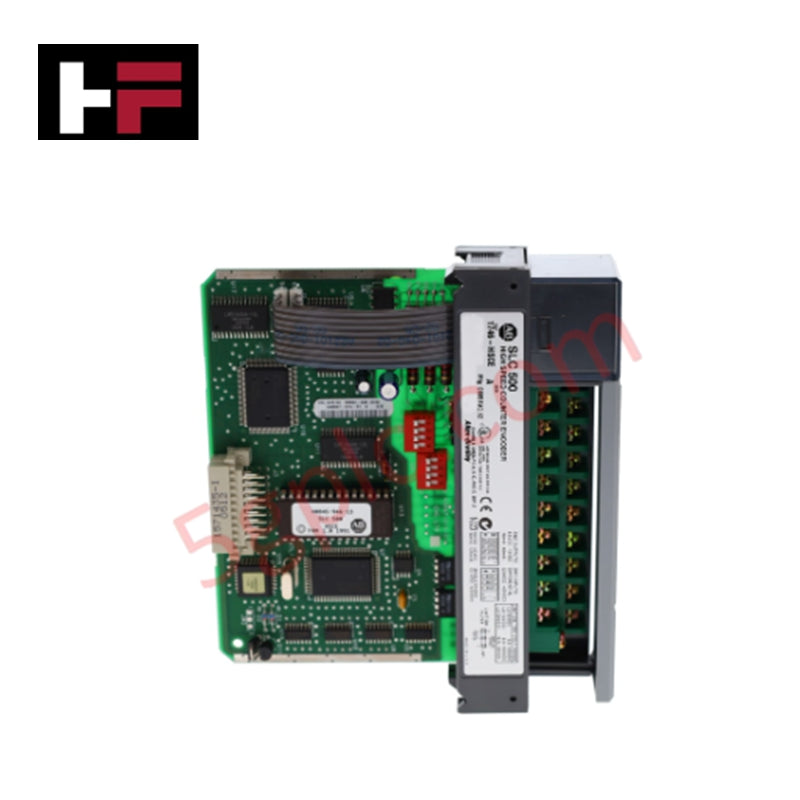

The 1746-HSCE from Allen-Bradley is a high-performance high-speed counter module for the SLC 500 programmable controller platform.
It is designed to provide rapid pulse counting, position tracking, and speed measurement for motion-oriented applications.
The module features two differential or single-ended inputs, flexible operating modes, and direct integration with PLC logic for deterministic control.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model / Part Number: 1746-HSCE
-
Product Type: High-Speed Counter Module
-
Product Family: SLC 500 Series
-
Mounting: Standard SLC chassis slot
Input Configuration
-
Number of Channels: 2 independent or 1 quadrature channel
-
Input Type: Differential line driver or single-ended
-
Maximum Count Rate: Up to 1 MHz per channel (differential mode), 250 kHz (single-ended)
-
Input Voltage: 5 V DC (TTL compatible)
-
Input Impedance: 2 kΩ nominal
-
Input Isolation: 500 V DC channel-to-backplane
Power Requirements
-
Backplane Current @ 5 V DC: 450 mA typical
-
Power Dissipation: 2.5 W max
Performance and Functions
-
Count Modes: Up/Down, Quadrature, Range, and Frequency modes
-
Preset and Reset: Software or external input configurable
-
Latch Function: Supported for precise event capture
-
Real-time Output Control: Programmable compare and gating logic
-
Data Representation: 16-bit or 32-bit signed integer
-
Accuracy: ±1 count at rated frequency
Environmental Characteristics
-
Operating Temperature: 0 – 60 °C (32 – 140 °F)
-
Storage Temperature: −40 – 85 °C (−40 – 185 °F)
-
Humidity: 5 – 95 % non-condensing
-
Enclosure: Open-style industrial module
Mechanical
-
Weight: 0.55 kg (1.2 lb) typical
-
Compatible Terminal Blocks: Standard SLC field wiring connections
Application Notes
The 1746-HSCE module is ideal for use in motion control, conveyor positioning, flow measurement, and packaging systems requiring high-speed pulse inputs.
It can interface directly with encoders, flow meters, and proximity sensors. Its deterministic response and independent channel operation make it suitable for multi-axis synchronization and event-driven automation.
FAQ
Q: What is the maximum input frequency supported by the 1746-HSCE?
A: The module supports up to 1 MHz per channel in differential mode and 250 kHz in single-ended mode.
Q: Can the 1746-HSCE operate with quadrature encoders?
A: Yes, it supports quadrature counting for position and direction detection.
Q: How many counter channels are available?
A: The module offers two individually isolated inputs that can operate independently or as a single quadrature pair.
Q: What types of sensors can be connected?
A: It is compatible with TTL, differential line-driver, and open-collector pulse sources.
