Product Details
Overview

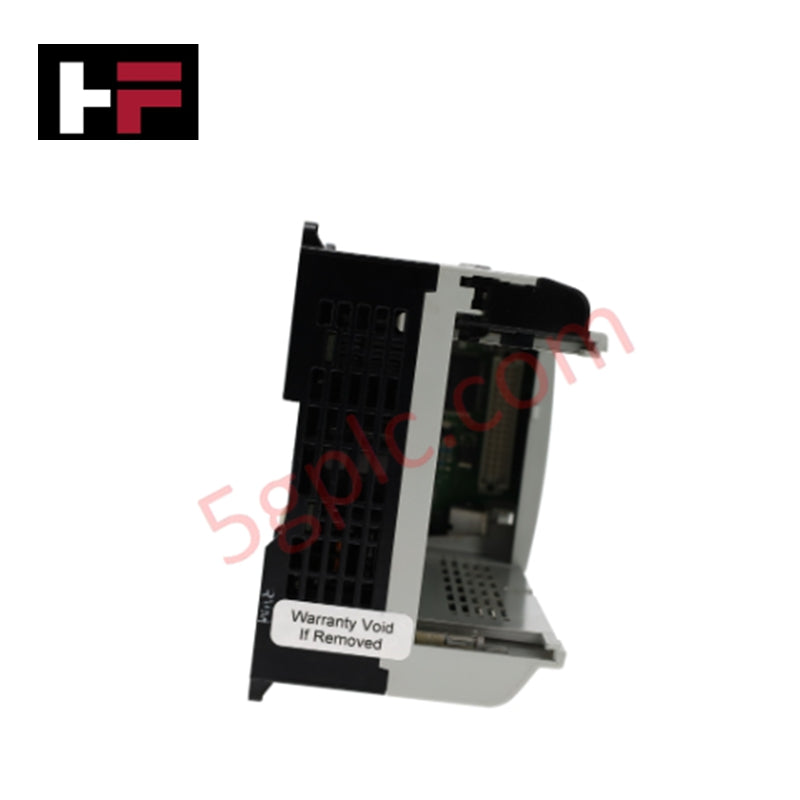

The Allen-Bradley 1764-24BWA is a compact base unit designed for the MicroLogix 1500 programmable controller platform. It provides integrated AC power, embedded I/O, and support for modular expansion, making it a flexible foundation for small to mid-sized control systems. The unit offers robust performance for a variety of industrial automation tasks, from machine control to process monitoring.
Key Features
-
Supports 85–265 V AC input, operating at 47–63 Hz
-
Delivers 88 VA power consumption, optimized for energy-efficient operation
-
Designed with integrated I/O capacity for compact control applications
-
Compatible with MicroLogix 1500 processor modules for scalable performance
-
Compact, DIN-rail or panel mount design ideal for space-constrained installations
-
Reliable operation in ambient temperatures from 0°C to 55°C (32°F to 131°F)
Technical Specifications
-
Manufacturer: Allen-Bradley / Rockwell Automation
-
Model Number: 1764-24BWA
-
Product Family: MicroLogix 1500 Series
-
Product Type: Programmable Controller Base Unit
-
Input Voltage Range: 85–265 V AC, 47–63 Hz
-
Power Consumption: 88 VA
-
Operating Temperature: 0°C to +55°C (32°F to 131°F)
-
Storage Temperature: –40°C to +85°C (–40°F to +185°F)
-
Dimensions (H × W × D): 8.7 × 16.8 × 13.8 cm
-
Shipping Weight: 2 kg
-
Mounting Options: Panel or DIN-rail
-
Enclosure Rating: IP20 (when properly installed)
Performance and Integration
The 1764-24BWA base unit forms the core of the MicroLogix 1500 system, providing the power and connectivity needed for a wide range of industrial control applications. It supports modular expansion with additional I/O, communication adapters, and specialty modules, allowing engineers to tailor the system to specific process requirements.
Applications
-
Packaging and material handling equipment
-
HVAC and environmental monitoring systems
-
Industrial machinery and process automation
-
Compact distributed control systems
FAQ
Q1: What processors are compatible with the 1764-24BWA base unit?
A1: It supports MicroLogix 1500 processor modules such as 1764-LSP and 1764-LRP.
Q2: What power supply is integrated into the 1764-24BWA?
A2: It includes a built-in AC power supply rated for 85–265 V AC input.
Q3: Can this base unit be expanded?
A3: Yes, it allows modular I/O expansion through compatible MicroLogix modules.
Q4: What is the recommended installation environment?
A4: Indoor use within an ambient temperature range of 0°C to 55°C and relative humidity under 95%.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
