Product Details
Overview

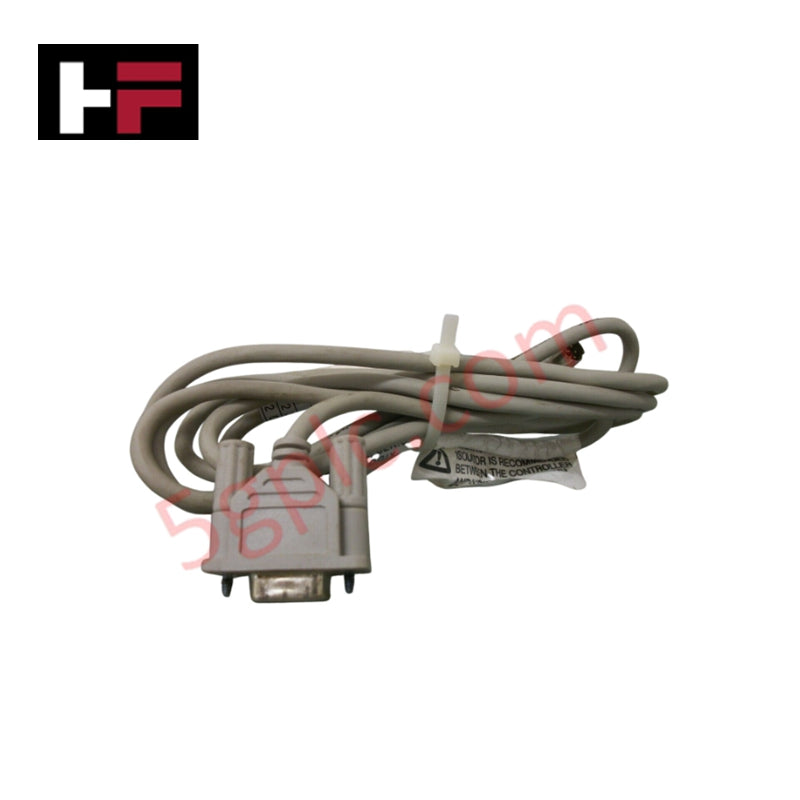

The 1761-CBL-PM02 is a communication and programming cable manufactured by Allen-Bradley, designed for direct connection between a PC serial port and MicroLogix controllers. It provides a stable RS-232 interface, ensuring reliable data transfer during programming, configuration, and diagnostics. This cable is essential for engineers and technicians working with MicroLogix 1000, 1200, and 1500 PLC systems.
Key Features
-
Model Number: 1761-CBL-PM02
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Cable Type: RS-232 communication and programming cable
-
Connector Type: 9-pin D-shell female (PC side) to 8-pin mini-DIN (controller side)
-
Cable Length: 2.5 meters (approx. 8.2 feet)
-
Communication Standard: RS-232 serial interface
-
Compatibility: MicroLogix 1000, 1200, and 1500 controllers; some PanelView terminals
-
Function: Provides point-to-point communication between controller and programming terminal
-
Construction: Shielded cable design for EMI protection and long-term durability
-
Data Transfer Rate: Supports standard baud rates up to 19.2 kbps
-
Plug-and-Play: No external power required; direct connection via serial port
Technical Specifications
-
Operating Temperature: 0°C to 55°C
-
Storage Temperature: -25°C to 70°C
-
Insulation Resistance: High dielectric strength to prevent signal loss
-
Cable Material: Industrial-grade PVC with high flexibility
-
Connector Shell: Nickel-plated for corrosion resistance
Applications
The 1761-CBL-PM02 cable is commonly used for:
-
Programming and configuring MicroLogix PLCs via RS-232
-
Uploading and downloading ladder logic programs
-
Connecting HMIs such as PanelView 300 or 550 to MicroLogix controllers
-
Performing real-time diagnostics and maintenance tasks
FAQ
-
Q1: Which controllers are compatible with the 1761-CBL-PM02?
A1: It supports MicroLogix 1000, 1200, and 1500 controllers and select PanelView terminals. -
Q2: What is the cable length?
A2: The cable is 2.5 meters (approximately 8.2 feet) long. -
Q3: Can this cable be used with a USB port?
A3: Not directly. A USB-to-RS-232 adapter is required for use with modern computers. -
Q4: Is the cable shielded for noise reduction?
A4: Yes, it includes internal shielding to minimize electromagnetic interference.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
