Product Details
Overview

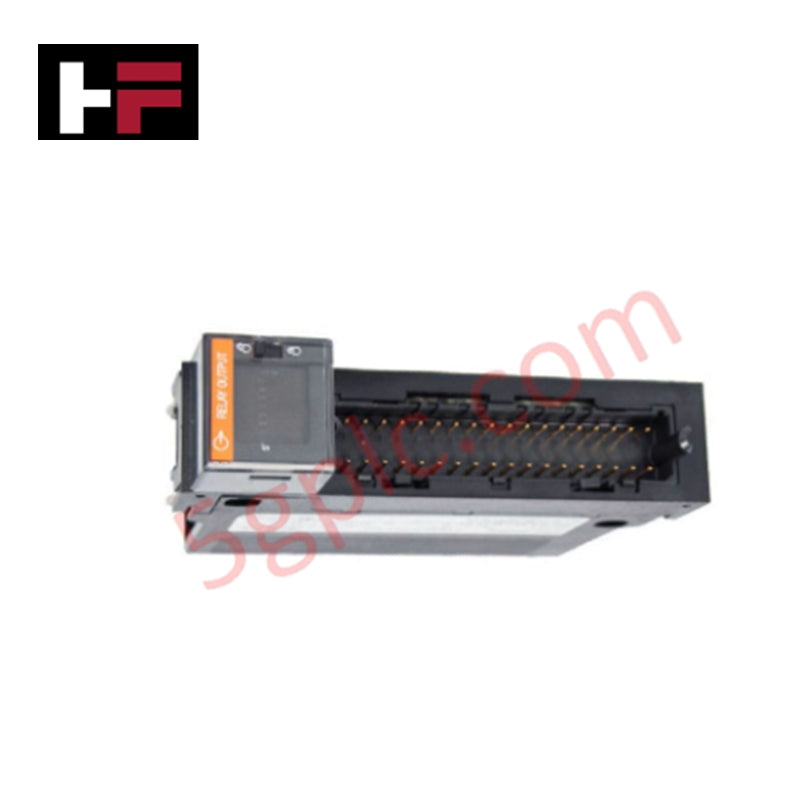

The Allen-Bradley 1756-OX8I is an isolated contact output module for ControlLogix systems, designed to provide reliable discrete signal control with electrical isolation. It ensures precise operation while protecting the controller from high-voltage spikes or noise from connected field devices.
Technical Specifications
Electrical & Output
-
Model: 1756-OX8I
-
Module Type: Isolated Contact Output
-
Output Points: 8 isolated contacts
-
Output Voltage: Up to 30V DC / 120V AC
-
Output Current: 2A per channel, 16A total
-
Isolation: Channel-to-channel and channel-to-backplane isolation
-
Response Time: 2 ms typical
Compatibility & Mounting
-
Compatible Controller Series: Allen-Bradley ControlLogix 1756
-
Mounting: Standard ControlLogix backplane
-
Module Width: 1 slot
Environmental Ratings
-
Operating Temperature: 0°C to 60°C
-
Storage Temperature: -40°C to 85°C
-
Relative Humidity: 5%–95%, non-condensing
-
Vibration Tolerance: 5G, 10–500 Hz
Physical Dimensions
-
Length: 12.5 cm
-
Width: 3.5 cm
-
Height: 13.0 cm
-
Weight: 0.3 kg
Applications
The 1756-OX8I is ideal for isolated discrete signal control in industrial environments, protecting the ControlLogix processor from electrical noise or high-voltage interference. Typical use includes motor control, relay-driven devices, and field actuator switching.
FAQ
Q: How many channels does the 1756-OX8I support?
A: The module provides 8 isolated contact outputs.
Q: Is this module compatible with all ControlLogix controllers?
A: It is compatible with Allen-Bradley ControlLogix 1756 series processors.
Q: What kind of voltage can it handle?
A: Supports up to 30V DC and 120V AC per channel.
Q: Does it provide electrical isolation?
A: Yes, both channel-to-channel and channel-to-backplane isolation are provided.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
