Product Details
Overview

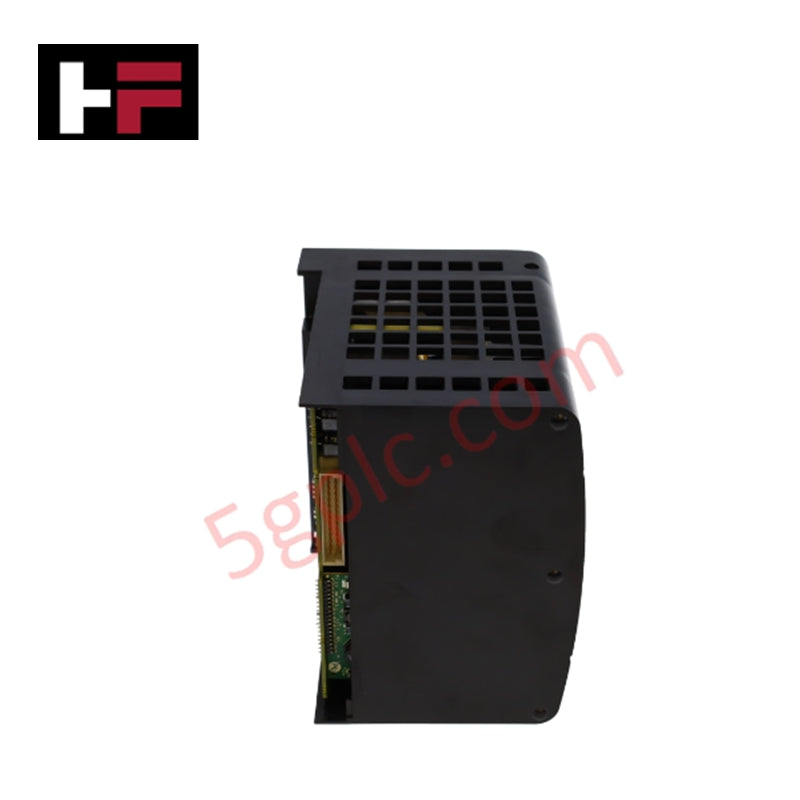

The 1756-PA75 is a standard AC power supply from the Allen-Bradley ControlLogix family, engineered to provide consistent and efficient power delivery to chassis and system modules. It supports universal AC input, robust electrical protection, and stable operation across a broad temperature range, making it suitable for diverse industrial automation applications.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model / Part Number: 1756-PA75
-
Product Type: Standard AC Power Supply
-
Series: ControlLogix
Electrical Characteristics
-
Input Voltage Range: 85…265V AC
-
Nominal Input Voltage: 120V / 240V AC
-
Input Frequency: 47…63 Hz
-
Maximum Input Power: 100 VA / 100 W
-
Output Power: 75 W (rated for 0…60°C / 32…140°F)
-
Inrush Current: 20 A max
-
Output Regulation: ±3% typical
-
Power Factor: >0.95
Thermal & Environmental Ratings
-
Operating Temperature: 0°C to +60°C (32°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Enclosure Rating: None (open-style design)
-
Temperature Code: T4 (North America)
-
Relative Humidity: 5% to 95%, non-condensing
Mechanical Details
-
Mounting Type: Chassis mount
-
Weight: 0.95 kg (2.10 lb)
-
Conductor Screw Torque: 0.565 N·m (5 lb-in)
Application Notes
The 1756-PA75 is designed to supply power to a single ControlLogix chassis and its installed modules. It is ideal for use in process control, discrete manufacturing, and high-reliability automation systems. The wide input range and high efficiency make it suitable for global installations requiring stable power performance.
FAQ
Q: What is the rated output power of the 1756-PA75?
A: The module delivers up to 75 W of continuous output power across the 0…60°C operating range.
Q: Does this power supply support universal AC input?
A: Yes, it supports 85…265V AC with automatic selection between 120V and 240V nominal.
Q: Is the 1756-PA75 compatible with all ControlLogix chassis sizes?
A: Yes, it supports all standard ControlLogix chassis models, depending on total load requirements.
Q: Does the module include overcurrent or surge protection?
A: It includes integrated surge suppression and inrush current limiting for enhanced reliability.
