Product Details
Overview

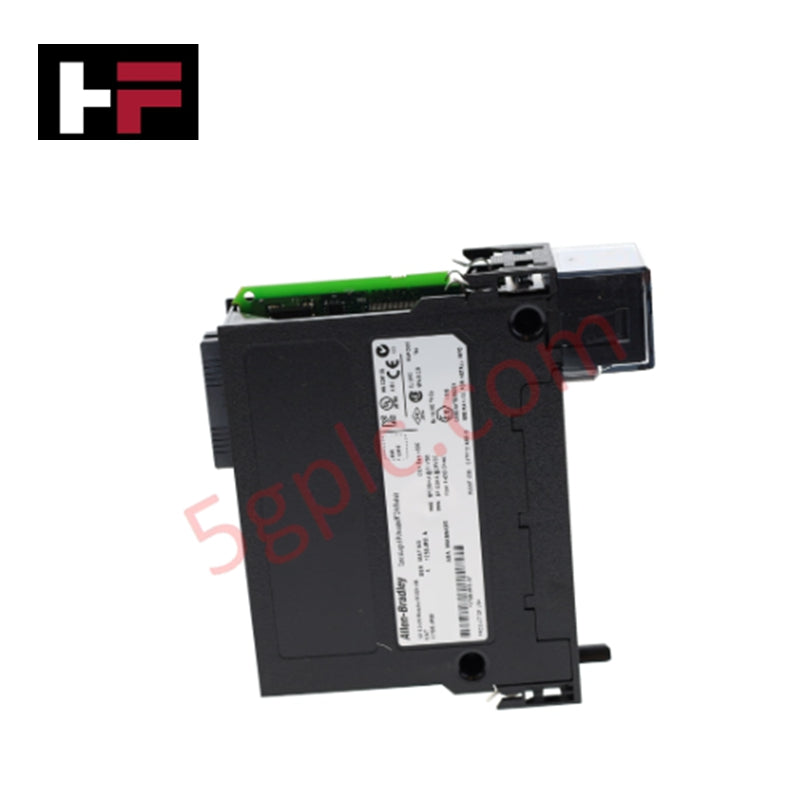

The 1756-IR6I is a six-channel temperature-measuring analog module designed for Allen-Bradley ControlLogix systems. Each input is individually isolated, enabling precise and stable RTD measurements. This module supports high-resolution signal acquisition with advanced Sigma-Delta conversion and ensures long-term reliability under industrial environmental conditions.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model / Part Number: 1756-IR6I
-
Module Type: Temperature-Measuring Analog Input Module
-
Input Channels: 6 individually isolated RTD inputs
-
Input Range:
-
1.87 Ω, 2.000 Ω, 4.000 Ω, 8.000 Ω
-
Resolution: 16-bit
-
1.87 Ω: 7.7 mΩ/bit
-
2.000 Ω: 15 mΩ/bit
-
4.000 Ω: 30 mΩ/bit
-
8.020 Ω: 60 mΩ/bit
-
Current Draw: 250 mA @ 5.1V, 125 mA @ 24V
-
Backplane Power: 4.25 W
-
Power Dissipation: 4.3 W max, Thermal dissipation 14.66 BTU/hr
-
Channel Bandwidth: 15 Hz
-
Settling Time: <80 ms to 5% full scale
-
Calibrated Accuracy (@ 25 °C): Better than 0.1% of range
-
Calibration Interval: 6 months
-
Offset Drift: 10 mΩ/°C
-
Gain Drift: Nominal 50 ppm/°C, Maximum 90 ppm/°C
-
Module Error: 0.54% of range
-
Module Scan Time:
-
25 ms minimum (floating point, ohms)
-
50 ms minimum (floating point, temperature)
-
10 ms minimum (integer, ohms)
-
Data Format: Integer mode (left justified, 2’s complement) and IEEE 32-bit floating point
-
Conversion Method: Sigma-Delta
-
Isolation Voltage: 50 V continuous, tested 1350 V AC for 2 s
-
Module Keying: Electronic, software configurable
-
RTB Keying: User-defined mechanical
-
Slot Width: 1
-
Temperature Codes: North American T4A, IEC T4
-
Enclosure: Open-style
Application Notes
-
Designed for precise temperature measurement using RTD sensors
-
Compatible with Allen-Bradley ControlLogix systems
-
Ideal for process control, environmental monitoring, and industrial automation requiring high-resolution analog inputs
FAQ
Q: How many channels does the 1756-IR6I support?
A: Six individually isolated RTD inputs.
Q: What is the calibrated accuracy?
A: Better than 0.1% of full scale at 25 °C.
Q: Is the module isolated?
A: Yes, each input is isolated from the backplane and from other channels.
