Product Details
Product Description

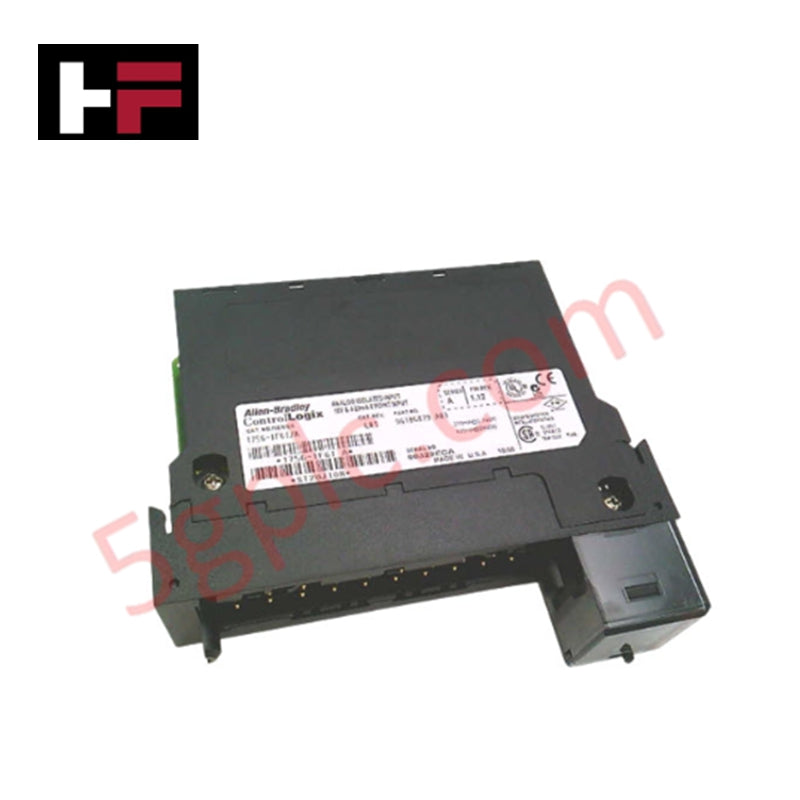

The 1756-IF6I is a 6-channel isolated analog input module designed for the Allen-Bradley ControlLogix platform. It provides accurate voltage and current signal measurement across multiple ranges with 16-bit resolution. Using a Sigma-Delta conversion method, it ensures precise data acquisition for process control and monitoring applications.
This module supports flexible input configurations, advanced isolation for signal integrity, and high-performance conversion suitable for analog sensors and instrumentation.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model / Part Number: 1756-IF6I
-
Product Type: Isolated Analog Input Module
-
Number of Inputs: 6 isolated channels
-
Input Signal Ranges: ±10.5 V, 0–10.5 V, 0–5.25 V, 0–21 mA
-
Resolution: 16-bit
-
Conversion Method: Sigma-Delta
-
Data Format: Integer mode (left-justified, 2’s complement) or IEEE 32-bit floating point
-
Voltage Input Resolution:
-
±10.5 V: 343 µV/bit
-
0–10.5 V: 171 µV/bit
-
0–5.25 V: 86 µV/bit
-
Current Input Resolution: 0–21 mA: 0.34 µA/bit
-
Backplane Current (5 V): 250 mA
-
Backplane Current (24 V): 100 mA
-
Power Dissipation: Voltage mode – 3.7 W (max), Current mode – 4.3 W (max)
-
Weight: 0.45 kg (1.0 lb)
Key Features
-
Six isolated input channels for superior signal separation
-
High-accuracy 16-bit resolution for analog process control
-
Supports both voltage and current input ranges
-
Sigma-Delta conversion ensures low noise and stable readings
-
Compatible with ControlLogix chassis and Studio 5000 environment
Applications
-
Industrial process monitoring
-
Analog sensor and transducer signal acquisition
-
Power systems, drives, and instrumentation measurement
