Product Description

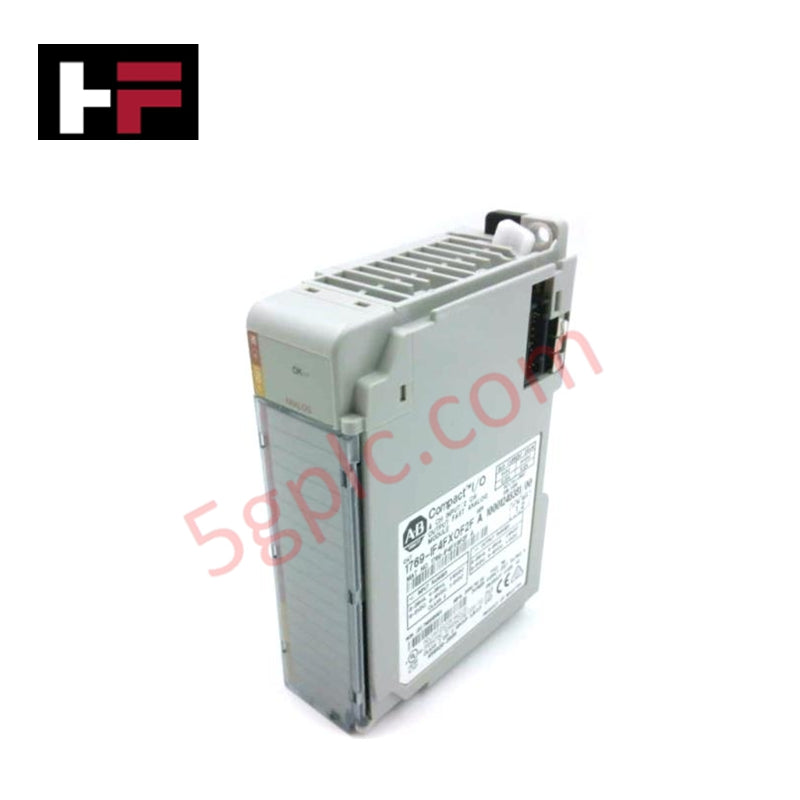

The Allen-Bradley 1769-IF4FXOF2F is a Compact I/O combination analog module that integrates both input and output functionality in a single unit. It provides four analog input channels and two analog output channels, supporting differential or single-ended configurations. With successive approximation conversion and fast response times, this module is designed for precise signal processing in industrial automation systems.
Technical Specifications
-
Manufacturer Allen-Bradley
-
Product Line Compact I/O
-
Part Number 1769-IF4FXOF2F
-
Product Type Combination Analog Module
-
Inputs 4 differential or single-ended channels
-
Input Range 0–10 V, 0–20 mA
-
Converter Type Successive approximation
-
Resolution 8 bits plus sign
-
Response Speed per Channel 5 ms
-
Rated Working Voltage 30 V AC / 30 V DC
-
Common Mode Voltage Range 10 V DC max per channel
-
Common Mode Rejection > 60 dB at 50/60 Hz with 10 Hz filter
-
Outputs 2 analog output channels
-
Mounting Options DIN rail or panel mount
-
Heat Dissipation (Max) 3.03 W
-
Slot Width 1
-
Power Supply Compatibility 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
-
Power Supply Distance Rating 8 modules
-
Dimensions (L x W x H) 11.8 × 3.5 × 8.7 cm
-
Shipping Weight 2.5 kg
Application Scenarios
-
Machine-level control requiring both analog input and output signals
-
Distributed I/O systems with compact footprint requirements
-
Industrial automation processes needing precise signal conversion and filtering
FAQ
-
Q: How many input and output channels are available? A: Four analog inputs and two analog outputs.
-
Q: What type of mounting is supported? A: DIN rail and panel mounting.
-
Q: Which power supplies are compatible? A: 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4.
