Product Details
Overview

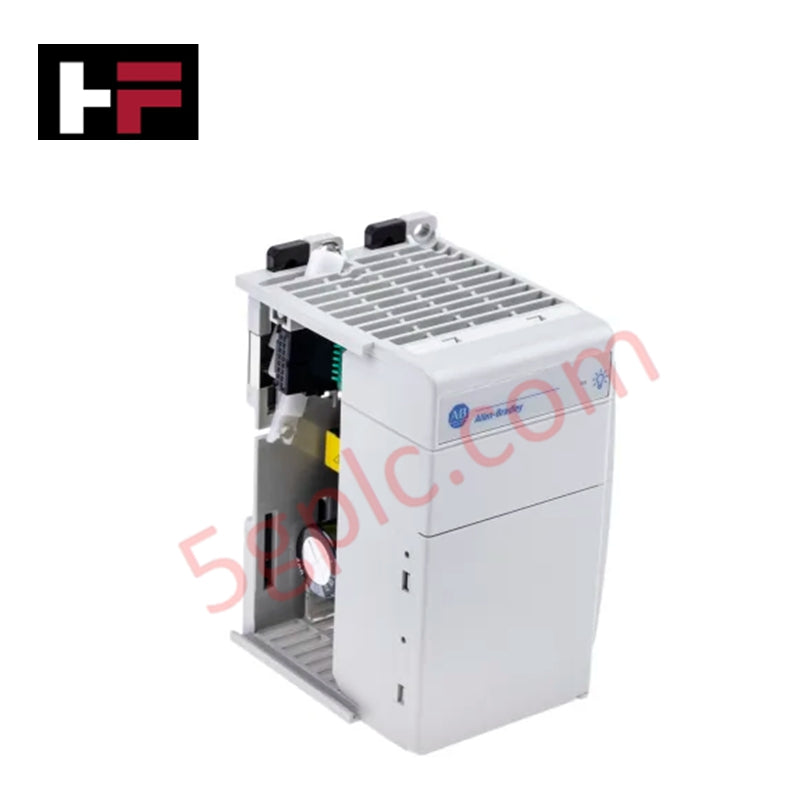

The Allen-Bradley 1769-PA2 is a Compact I/O power supply module designed for the CompactLogix series. It delivers reliable AC input power conversion to DC outputs, supporting multiple I/O modules while maintaining efficient energy usage and stable performance.
Technical Specifications
-
Manufacturer Allen-Bradley (Rockwell Automation)
-
Series CompactLogix
-
Model / Part Number 1769-PA2
-
Product Type I/O Power Supply Module
-
Weight 0.88 lbs (0.40 kg)
-
Input Voltage 120 V AC nominal, range 85–265 V AC
-
Input Frequency Range 47–63 Hz
-
AC Power Consumption 100 VA @ 120 V AC, 130 VA @ 240 V AC
-
Power Dissipation 8 W @ 60 °C (140 °F)
-
Output Voltage / Current 5 V DC @ 2.0 A, 24 V DC @ 0.8 A
-
Module Distance Rating Up to 8 I/O modules on each side of the power supply (16 maximum)
-
Enclosure Type Open Style (no enclosure)
-
Wire Type Copper wire rated 90 °C (194 °F)
-
Solid Wire Size 22–14 AWG
-
Stranded Wire Size 22–16 AWG
-
Inrush Current Max 25 A @ 132 V AC
-
Fuse Type Littelfuse 02153.15MXP or Wickmann 19195-3.15A
Key Features
-
AC to DC conversion for CompactLogix I/O systems
-
Supports expansion of up to 16 modules with 8 modules on each side
-
Compact, open-style design suitable for panel integration
-
Dual DC outputs: 5 V @ 2 A and 24 V @ 0.8 A
-
High inrush current tolerance (25 A) for robust start-up
-
Compatible with standard copper wiring, solid or stranded, per industrial standards
Application Scenarios
The 1769-PA2 is ideal for:
-
Supplying power to CompactLogix I/O racks
-
Expansion of existing PLC control systems
-
OEM equipment requiring reliable, compact power supplies
-
Applications where multiple I/O modules need stable DC power distribution
Similar Models Comparison
-
1769-PA2 – AC input, 5 V / 2 A and 24 V / 0.8 A DC outputs, CompactLogix compatible
-
1769-PA4 – Higher capacity AC/DC module, suitable for larger I/O expansions
-
1769-PA3 – AC/DC power supply with additional 24 V output capacity
FAQs
Q: How many I/O modules can be powered by this supply?
A: Up to 8 modules on each side, 16 maximum.
Q: What is the input voltage range?
A: Accepts 85–265 V AC at 47–63 Hz.
Q: What type of wire should be used?
A: Copper wires rated at 90 °C (194 °F), solid 22–14 AWG or stranded 22–16 AWG.
