Product Details
Overview

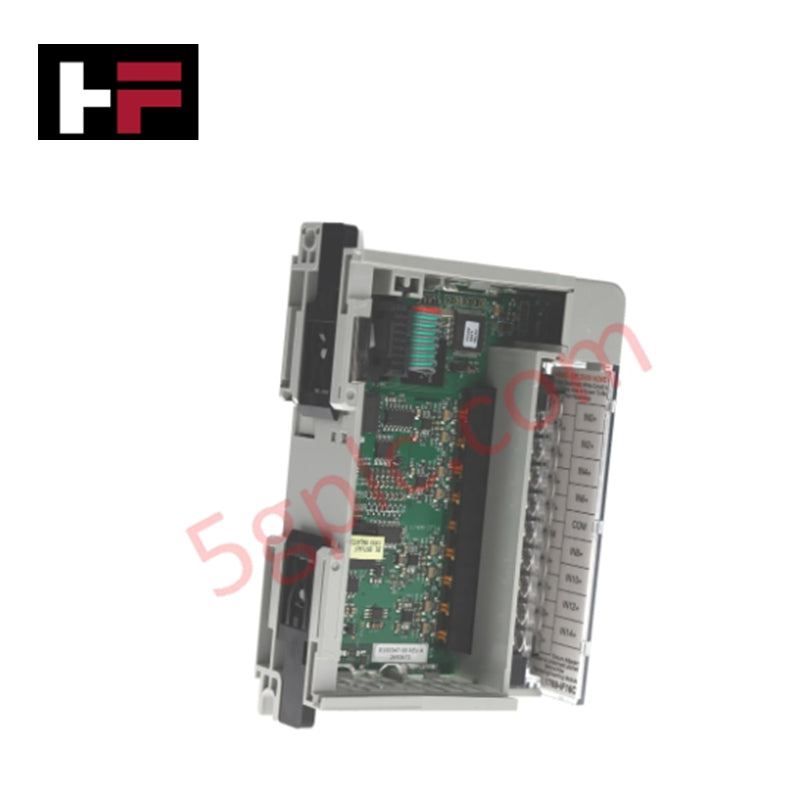

The Allen-Bradley 1769-IF16C is a high-density 16-point analog current input module designed for CompactLogix systems. It supports precision measurement of industrial signals with flexible current ranges and advanced diagnostics.
Technical Specifications
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Series / Product Line: CompactLogix
-
Model / Part Number: 1769-IF16C
-
Module Type: 16-Point Analog Current Input Module
-
Number of Inputs: 16 single-ended channels
-
Input Type: Analog Current
-
Current Signal Ranges: 0–20 mA, 4–20 mA; full range 0–21 mA, 3.2–21 mA
-
Resolution: 16-bit unipolar, 15-bit + sign bipolar
-
Slot Width: 1 slot
-
Recommended Cable: Belden™ 8761 shielded
-
Compatible Controllers: MicroLogix 1500, CompactLogix
-
Channel Diagnostics: Over- or under-range reporting, process alarms
-
Backplane Current: 1.4 A at 24 VDC
-
Power Consumption: 33.6 W
-
Power Dissipation: 7.5 W
-
Isolation Voltage: 30 V DC
-
Enclosure Type: Open
-
Series: A and B
Key Features
-
16 high-density analog inputs for compact system integration
-
Supports multiple standard current ranges for industrial signals
-
Advanced channel diagnostics with alarm reporting
-
Compatible with CompactLogix and MicroLogix 1500 controllers
-
Low power dissipation and efficient backplane current usage
Application Scenarios
The 1769-IF16C is suitable for:
-
Collecting analog signals from field devices such as sensors or transducers
-
Industrial process monitoring requiring precise current measurement
-
Mid-size control panels with CompactLogix systems where high-density input is required
Similar Model Comparison
-
1769-IF16C – 16-point analog current input, high-density
-
1769-IF8C – 8-point analog input, lower channel count for smaller systems
-
1769-IF4 – 4-point analog input module for minimal footprint applications
FAQs
Q: What is the maximum input current?
A: Full range supports 0–21 mA; standard signals 0–20 mA or 4–20 mA.
Q: Which controllers are compatible?
A: MicroLogix 1500 and CompactLogix systems.
Q: What diagnostics are included?
A: Over- or under-range bit reporting and process alarms.
