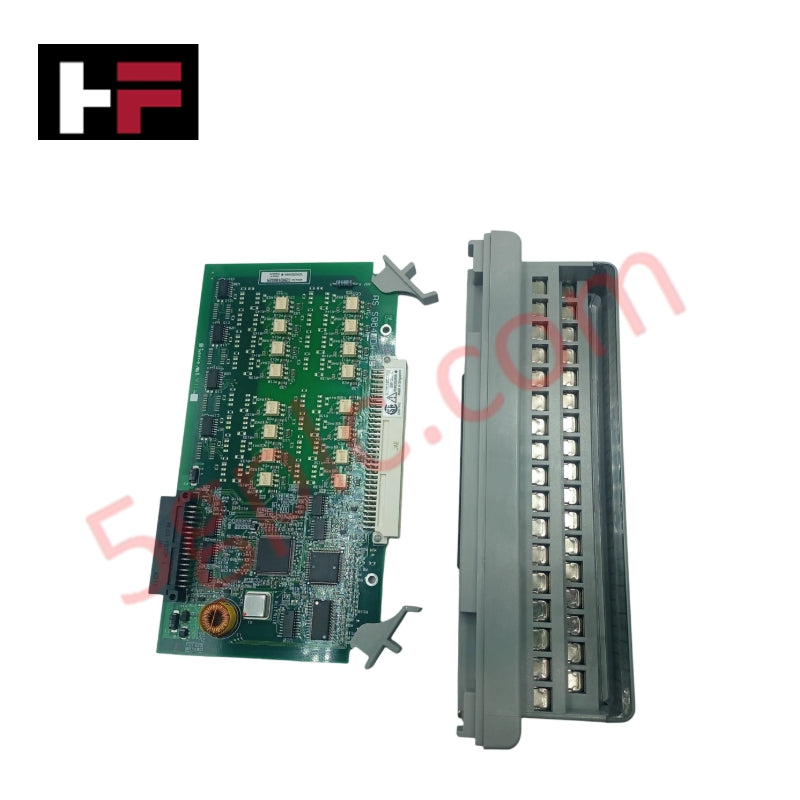

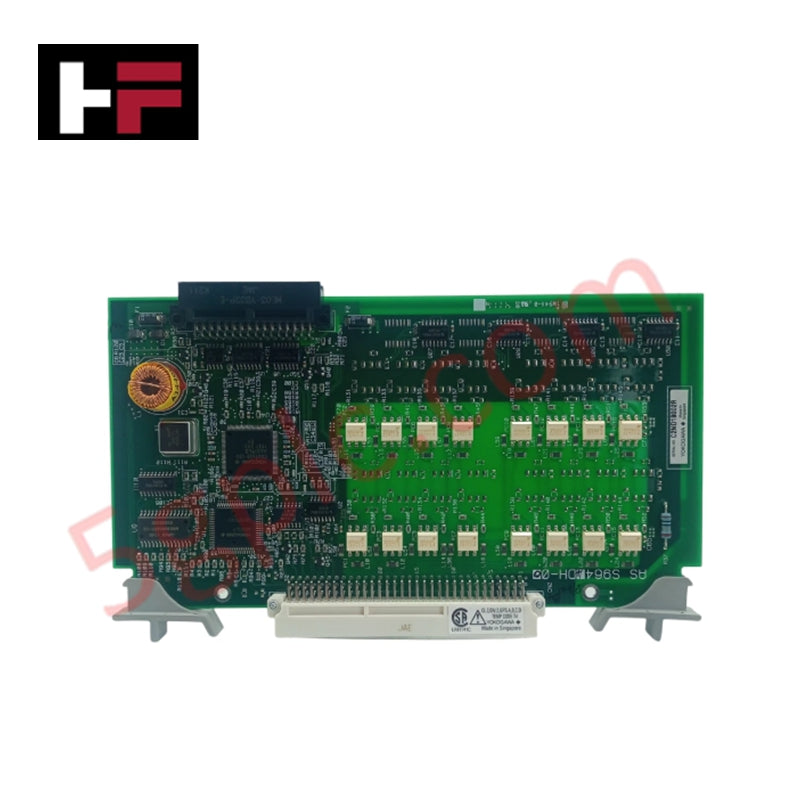

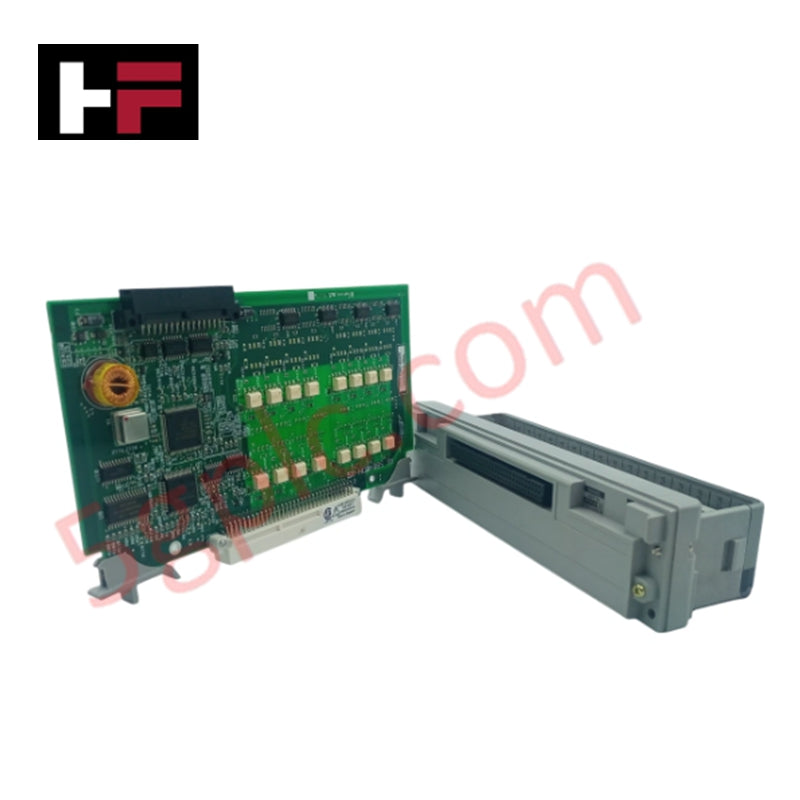

Yokogawa ADM51T FA-M3 Transistor Contact Digital Output Module

Product Overview

The Yokogawa ADM51T functions as a high-precision digital output interface within the FA-M3 Range-free Multicontroller architecture. This module utilizes transistor contact technology to drive DC field devices with millisecond accuracy. Unlike standard discrete cards, the ADM51T offers multi-mode operational flexibility, making it a critical component for applications requiring pulse width modulation or time-proportioning control.

Technical Specifications

The ADM51T delivers specialized switching capabilities for DC-powered control loops:

Engineering Advantages

• Versatile Control Logic: The ADM51T manages more than simple ON/OFF states. It executes Pulse Width Modulation (PWM) and Time-Proportioning Output directly from the hardware layer. This offloads complex timing tasks from the main CPU, ensuring jitter-free performance for heating elements or analog-like valve positioning.

• Precision DC Switching: High-speed transistor contacts eliminate the mechanical wear associated with traditional relays. This solid-state design handles high-frequency switching cycles without contact bounce, extending the operational life of the module in rapid-cycling environments.

• Compact Integration: The 70 mm width allows for efficient placement within high-density FA-M3 base units. This modular footprint helps engineers minimize cabinet size while maintaining dual-channel output independence.

• Thermal Resilience: An industrial-grade modular casing protects internal electronics from heat accumulation. This design ensures the transistor junctions maintain stable switching thresholds even when the module operates at its maximum rated capacity.

FAQs

• Is this Yokogawa ADM51T unit new or refurbished?

  We supply this ADM51T exclusively as a 100% Brand New and Original factory unit. It arrives in the original manufacturer’s packaging with full traceability, ensuring you receive a component with zero hours of field wear.

• Can I use the ADM51T for AC voltage switching?

  No. The ADM51T utilizes transistor contacts designed specifically for DC signal types. For AC loads, you must utilize an interposing relay or select a Triac-based output module compatible with the FA-M3 series.

• What is the primary benefit of the PWM mode on this module?

  PWM mode allows the ADM51T to simulate variable power levels for DC devices. By varying the duty cycle, you can control the speed of small DC motors or the intensity of heaters with far greater precision than standard binary switching.

• Does the module require a specific mounting orientation?

  For optimal heat dissipation, you should mount the ADM51T vertically within the FA-M3 base unit. Ensure the surrounding ambient air does not exceed the specified operating limits to prevent thermal derating of the transistor outputs.
