Product Details
Overview

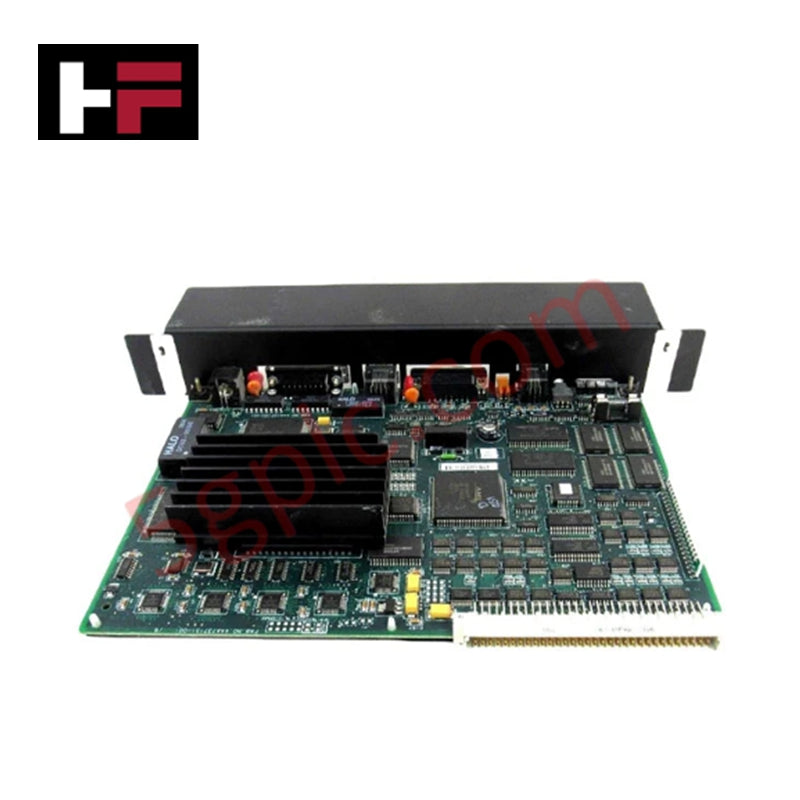

The GE Fanuc IC697MDL750 is a high-performance discrete output module designed for Series 90-70 PLC systems. It provides 32 individually controllable outputs with fast response times and robust electrical isolation, ensuring safe and reliable operation in demanding industrial environments. The module features LED indicators for visual status monitoring and is engineered for straightforward installation.
Technical Specifications
-
Manufacturer: GE Fanuc (Emerson Automation)
-
Series: Series 90-70
-
Part Number: IC697MDL750
-
Product Type: Discrete Output Module
-
Number of Outputs: 32 channels
-
Output Groups: 4 groups with 8 channels per group
-
Rated Voltage: 24/48 VDC
-
Output Voltage Range: 20–60 VDC
-
Output Current: 0.5 A per channel, 2 A per group
-
Isolation Voltage: 1500 V between field and logic sides; 500 V between groups
-
Response Time: On/Off 1 ms maximum
-
Slot Size: Standard Series 90-70 module width
-
Weight: ~0.3 kg
-
LED Indicators: Visual feedback for each output channel
Key Features
-
High-density 32-channel output for versatile control applications
-
Group isolation ensures operational safety and protects system integrity
-
LED indicators provide quick status checks of each output
-
Rugged industrial design to withstand harsh environments
-
Simple modular installation for fast setup
Application Scenarios
-
Automation systems requiring precise discrete output control
-
Process control with multiple simultaneous outputs
-
Industrial machinery and factory automation applications
-
Replacement or expansion of existing Series 90-70 PLC output modules
FAQs
Q: How many channels does the IC697MDL750 support?
A: The module supports 32 discrete output channels, organized in 4 groups.
Q: What is the maximum output current per group?
A: Each group can handle up to 2 Amps.
Q: Is there visual feedback for output status?
A: Yes, each channel has a dedicated LED indicator.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
